BoilerPDF
Industry : Machinery & equipment
Application : Test run monitoring of a boiler

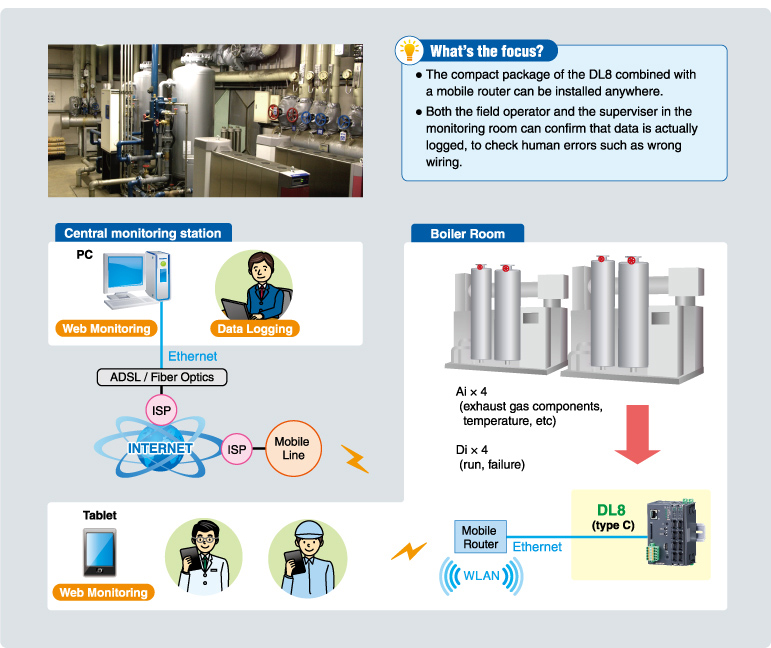

The DL8 is used to monitor and record test run data of a boiler. A mobile router is combined so that the monitoring system can be easily removed and moved to a new test site.

The operator can check that data is adequately logged by accessing web browser views on a tablet connecting to the DL8 via WLAN.

The central monitoring station can also access web browser views of the DL8 to check each device's operating status and the trend of gas pressure and exhaust gas components, temperature, etc.

The DL8 sends an e-mail to the central monitoring station in case that abnormal temperature or pressure is measured.

Test run monitoring of a boiler

● Static IP or dynamic DNS is required.
