DL8系列 Application Examples
在公司更名前发布的产品、产品目录、以及公司网站中，仍保留有旧公司名称及徽标，请将其视为新公司名称。
| Building MaintenancePDF |
| Applicable Area | : | Building maintenance |
| Application | : | Maintenance of feedwater pumps for buildings |

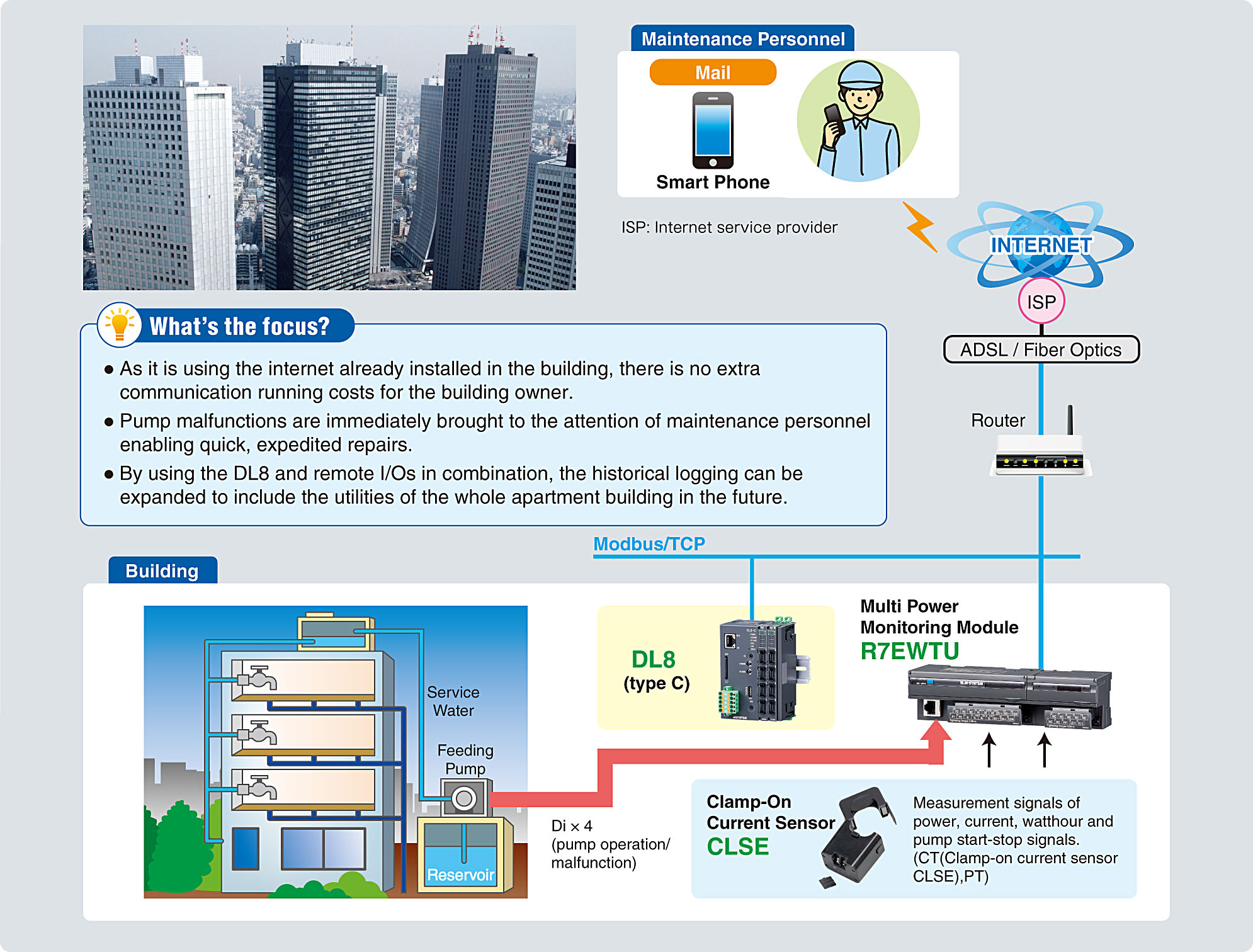

Pumps are used to feed water to the water receiving tank located on the rooftops of buildings. Maintenance is essential as there are an increasing amount of pumps being used, including booster pumps to supply water directly to each residence. The R7EWTU* is used with the DL8 for inputting pump’s start-stop signals and power monitoring. *R7EWTU: Multi Power Monitoring Module
The R7EWTU alone will input the pump’s power/current/watt-hour measurement and start-stop signals. This data is then easily uploaded to the DL8 over the Modbus/TCP transmission function and displayed in web views.
In the DL8, the number of operations and operational time from the pump’s start-stop signals are cumulated and recorded.
In the event of pump malfunction, a contact signal showing abnormality is input to the DL8, and an e-mail notification is sent to a PC in the management office and to a mobile phone of maintenance personnel.
● Static IP or dynamic DNS is required.
