DL8系列 Application Examples

在公司更名前发布的产品、产品目录、以及公司网站中,仍保留有旧公司名称及徽标,请将其视为新公司名称。

Food Processing Factory PDF
Applicable Area : Factory production lines
Application : Wastewater monitoring in factories

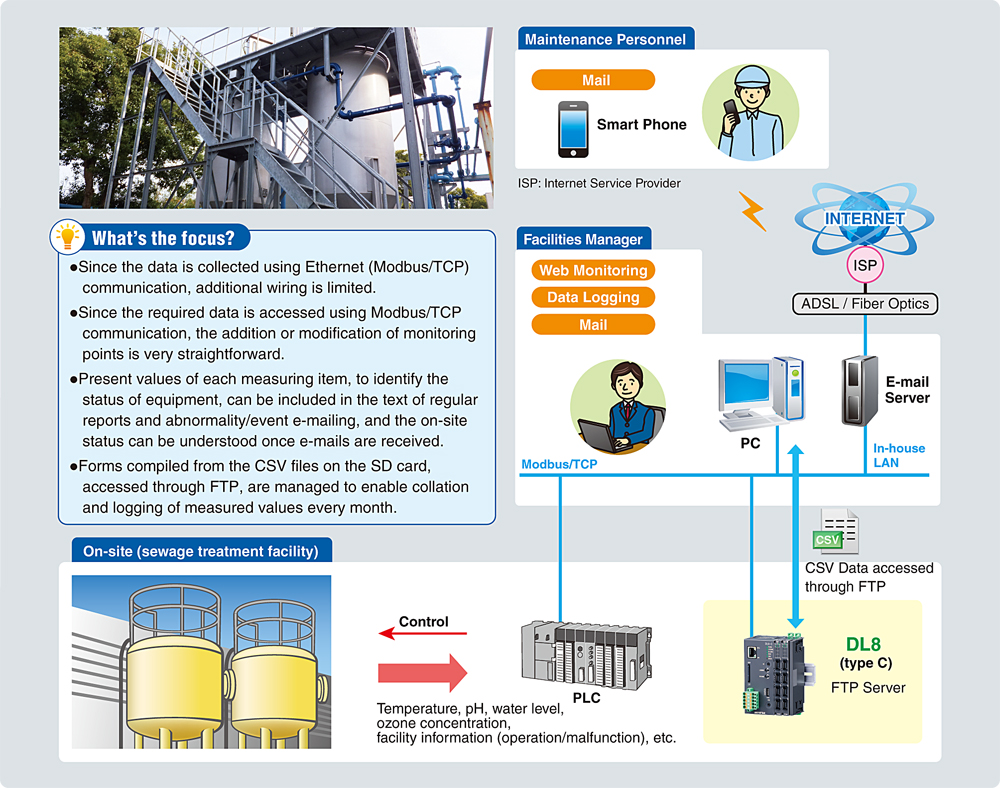

The DL8 monitors measurement data from wastewater treated in a sewage treatment unit, such as the temperature, pH, water level, and ozone concentration, and also any abnormalities in related equipment.

The data to be monitored is processed in advance after being imported into a PLC, and the DL8 accesses that data from the PLC using Modbus/TCP communication.

Because it is connected to the in-house LAN, monitoring can be done from any arbitrary PC on the in-house LAN. As well, it sends e-mail notifications using the in-house e-mail server.

The data is saved as CSV files on the SD card of the DL8 (type C), and a monthly report based on this data is created and managed using Excel.

Food Processing Factory

● Static IP or dynamic DNS is required.
