DL8系列 Application Examples
在公司更名前发布的产品、产品目录、以及公司网站中,仍保留有旧公司名称及徽标,请将其视为新公司名称。
Resort HotelPDF |
Applicable Area | : | Building management |
Application | : | Power monitoring of resort hotels |

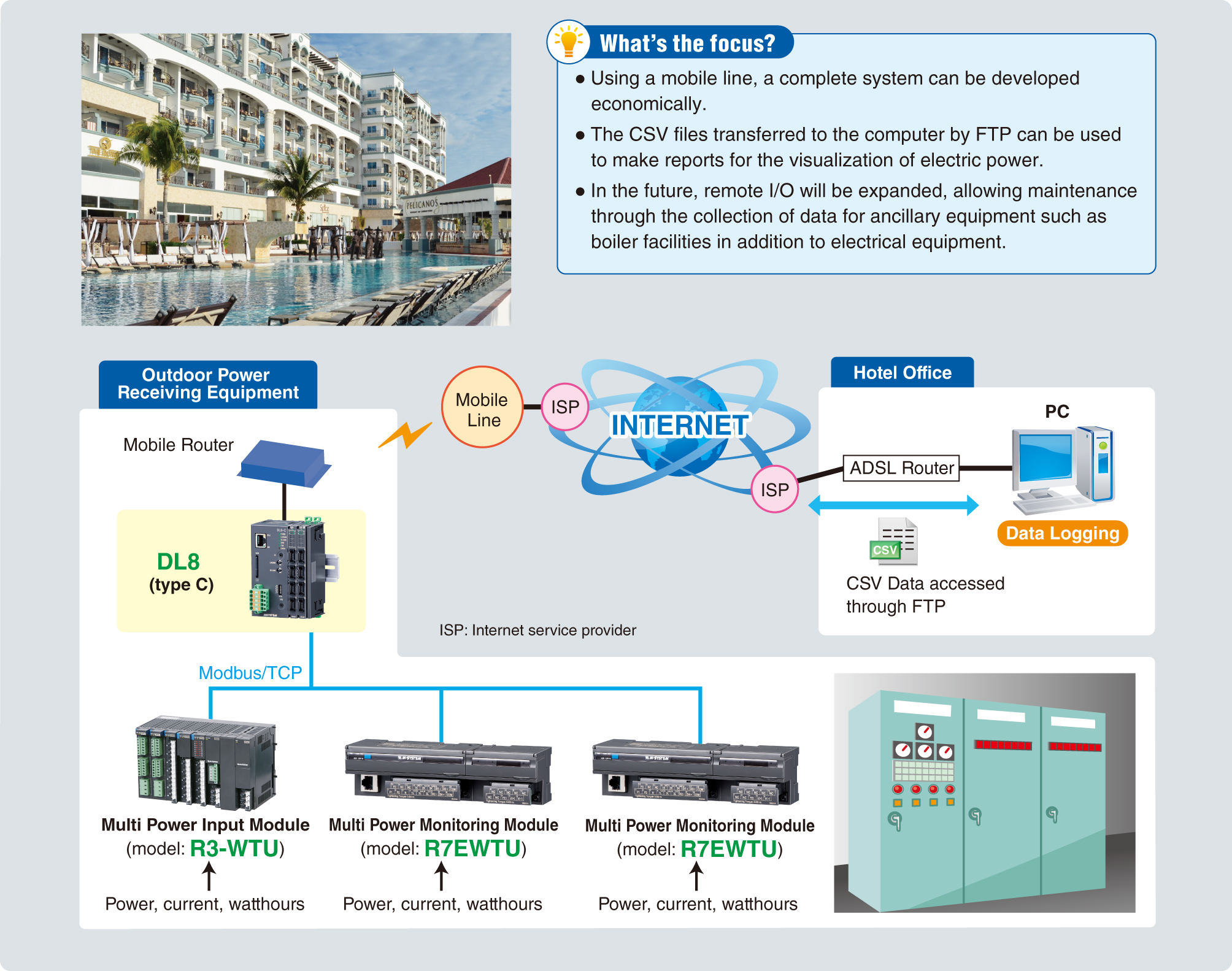

The DL8, using mobile service, is installed to the power receiving equipment, which is located outdoors. It is used to monitor the various power loads in the hotel and record the data.
For the measurement of electrical power, the client used either the Multi Power Input Module (model: R3-WTU) of the Remote I/O R3 Series, or the Multi Power Monitoring Module (model: R7EWTU) of the Remote I/O R7 Series for a small number of circuits.
The power, current, and watthours measured by the R3-WTU or R7EWTU are collected by Modbus/TCP communication on the DL8 and displayed on the web screen.
By using the FTP client function of the DL8, the data (CSV files) is regularly uploaded to the computer and saved to a PC installed in the hotel’s office.
● Static IP or dynamic DNS is required.
