| Paper MillPDF |
| Applicable Area | : | Equipment / Machines |
| Application | : | Monitoring of air supply and ventilation volume to cleanrooms, external atmospheric pressure |
There are many flow meters used at paper mills because they use a large amount of water.

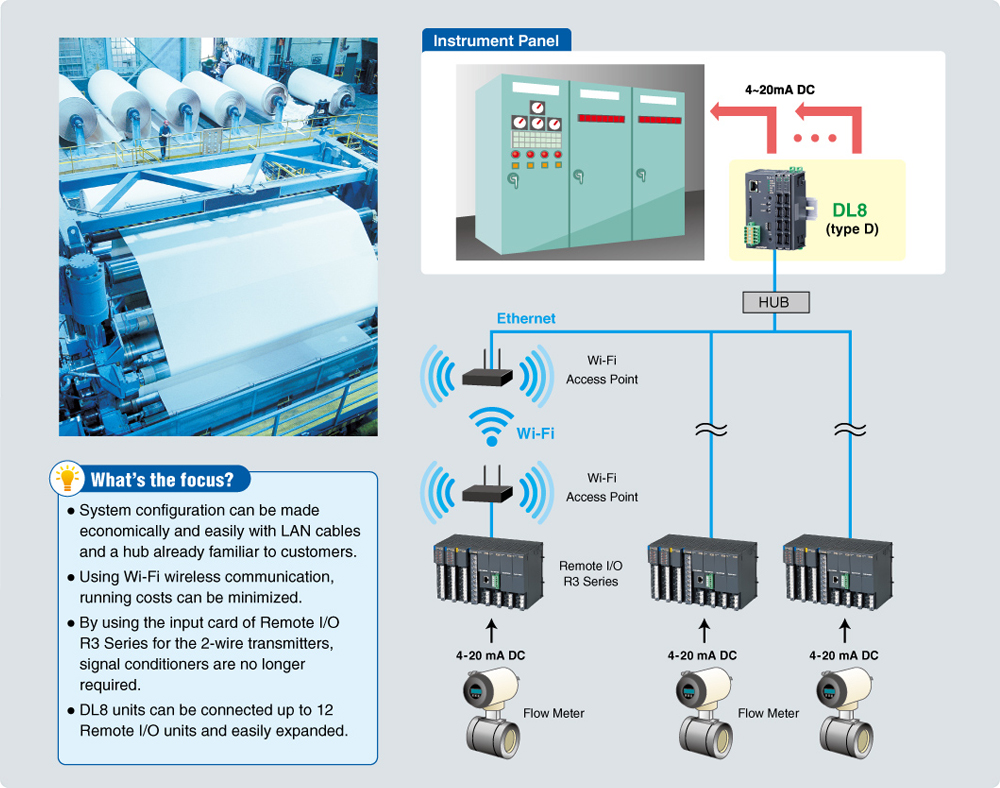

Data from each flow meter is sent via the DL8 and managed at a central station.
Using the I/O Mapping function of the DL8-D series units allows the measurement signals of flow meters sent to the Remote I/O R3 Series to be output from a DL8 unit I/O card.
A Wi-Fi terminal can be used for wireless transfer of data from locations difficult to link via LAN cable.
A maximum of 32 measurement signals can be sent to one central location and output as a batch.
Output signals from the DL8 I/O modules are displayed by indicators of instrument panel.
● Static IP or dynamic DNS is required.
