Application Notes

EAP-030046

It has been said that if you use buried cables, then that is enough protection from lightning. Is this a true statement?

No, it's because buried cables are also vulnerable to the unpredictable power of lightning.

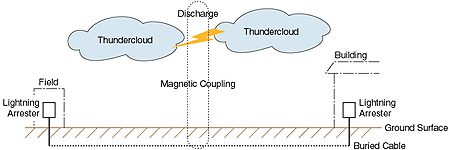

A buried cable does not have as much protection from induced lightning as one might expect, because underground soil easily transmits an electromagnetic field which occurs during a lightning discharge. Also, the high lightning current that is being discharged to ground by the lightning rod can find its way to the buried cables located in the ground.

Model	Function & Features
MDP-24-1	4-20mA DC & Pulse signal lines
MDM2A-24	4-20mA DC & Pulse signal lines with Life monitor function
MDPA-24	4-20mA DC & Pulse signal lines with Life monitor function and degradation checker
MA-100 / 200	Power supply lines 100-120V or 200-240V AC; 2A
MAX-100 / 200	Power supply lines 100-120V or 200-240V AC; 5A
MAA-100 / 200	Power supply lines 100-120V or 200-240V AC with Life monitor function; 5A
MAAC-100 / 200	Power supply lines 100-120V or 200-240V AC with Life monitor function and surge counter; 5A

M-System has flexible solutions to meet your specific application and requirements. Consult our Signal Conditioners Data Library.
