  As
flow meter to detect water level change and measure flow, there are orifice,
weir, parshall flume, etc. and some are equipped with a potentiometer to
output for remote transmission. In this case, the scale of the flow indicator
on site is disproportional, however the potentiometer resistance value is
linear to the water level. To indicate this signal as flow, the scale of
the indicator is disproportional.

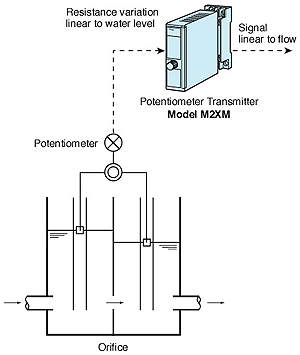

To convert into a signal linear to the flow, our Field Programmable Potentiometer
Transmitter model M2XM is suitable. The M2XM is very convenient in programming
input-output characteristics freely, such as measuring a liquid measure
by a tank level in a spherical tank, or converting a revolution into a linear
signal, etc.
Moreover, in case the output characteristics are not fixed when determining
the specifications, PC Configurator Software model JXCON is useful to set/change
the specifications on site easily after installation. |
I
measure water flow based on a level signal in a waterway. Can I have a transmitter
which provides an output linear to the flow? The level signal is transmitted
by a potentiometer with a resistance value linear to the level.
