 One
of the model AYDV's input signals is limited to 1-5 Vdc. When a customer
needs to have both inputs 4-20 mAdc can we use the Resistor Module (model
REM)? |
 |
 As
shown in the figures, the REM cannot be mounted between the terminals 4
and 6. In order to solve this problem, you can use another kind of resistor
module model MU2. When you order, specify the AYDV-6A_ _-_ for the 1-5 Vdc,
and the MU2 separately from the unit. |
|

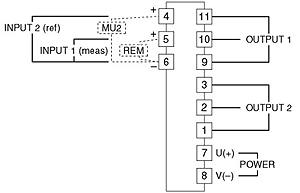

 Connection diagram |
