 We’d

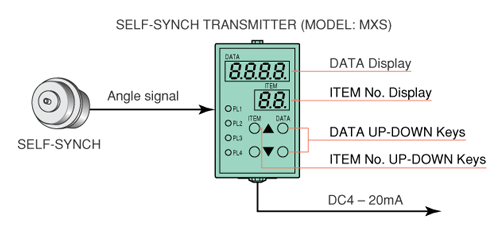

like to introduce our SELF-SYNCH Transmitter, model MXS, which is front
configurable type. The MXS takes in the opening angle signal (with a measurement
range of 0° to 360° and a span of 60° to 360° ) from the
synchronous transmitter (SELF-SYNCH) and convert the signal into an analog
signal. The opening angle range and other initial settings are set in
the DATA display and ITEM No. display on the front panel of the MXS. These
displays are operated with the respective UP-DOWN Keys on the front panel.
If the opening angle range is unknown at the time of 0% position setting
in ITEM 03 and 100% position setting in ITEM 04 of the MXS, the synchronous
transmitter can be moved to the fully closed position and fully opened
position. By double clicking the DATA  Key then, the 0% and 100% positions will be programmed. For the setting
method in detail, please refer to the specification sheet.
|
We
are using the synchronous transmitter (SELF-SYNCH) to measure the opening
angle of an intake gate in the river and send the output signal of the
transmitter to the synchronous receiver in a control room to display the
opening angle. As a result of monitor system standardization, we want
to convert the output signal (opening angle signal) into a standardized
signal of 4 to 20 mA in DC for instrumentation without replacing or modifying
the existing synchronous transmitter. Is there any converter suitable
for this purpose? The precise operating angle range of the synchronous
transmitter is unknown.
