电动执行器 - Selection Guide
Electric Actuators - Selection Guide
本公司的电动执行器产品系列

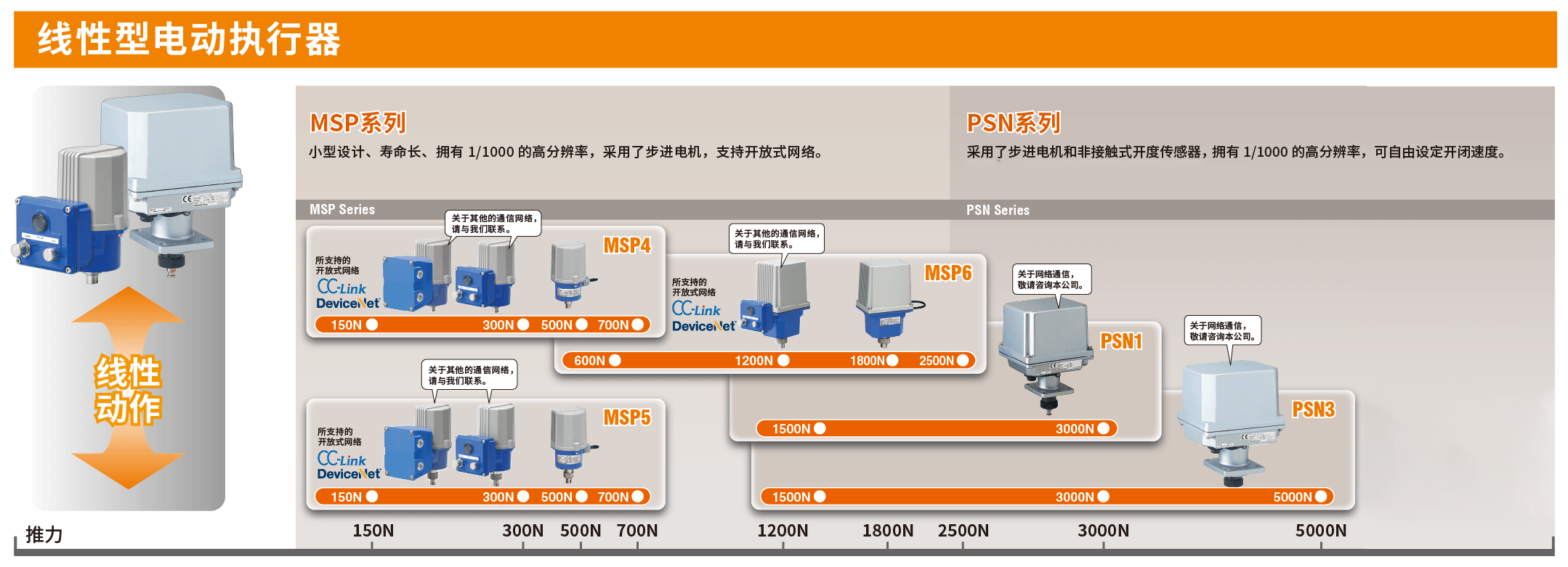

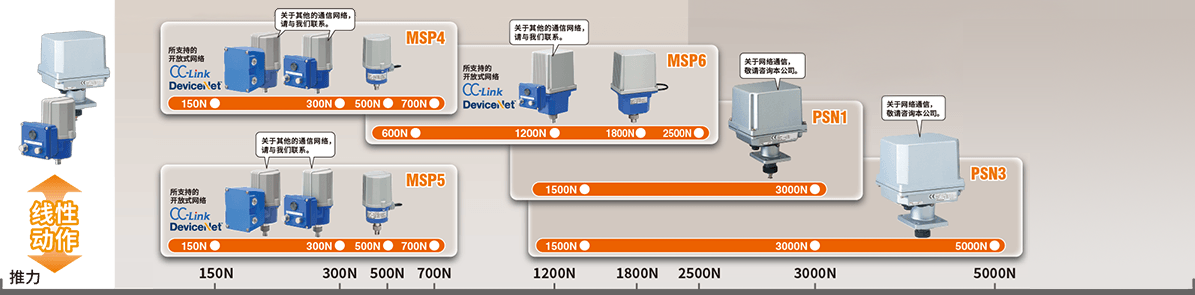

| 线性型电动执行器 |  扩大图 |
||
|---|---|---|---|
| MSP系列 | PSN系列 | ||
小型设计、寿命长、拥有1/1000的高分辨率，采用了步进电机，支持开放式网络。 |
采用了步进电机和非接触式开度传感器，拥有1/1000的高分辨率，可自由设定开闭速度。 |
||
|
|||
|
|||

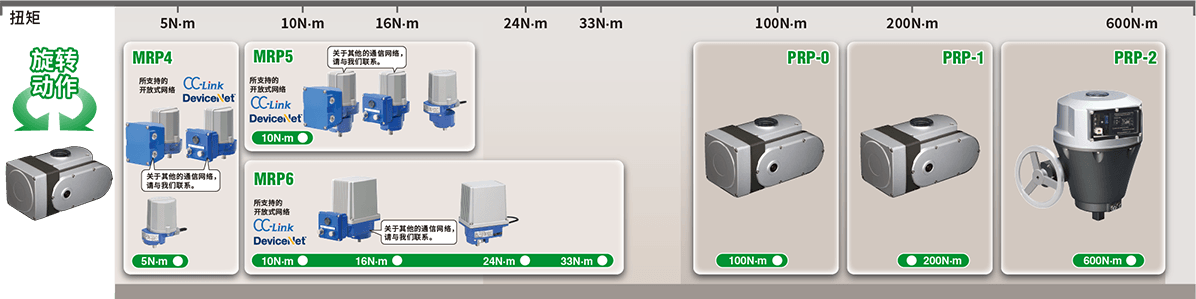

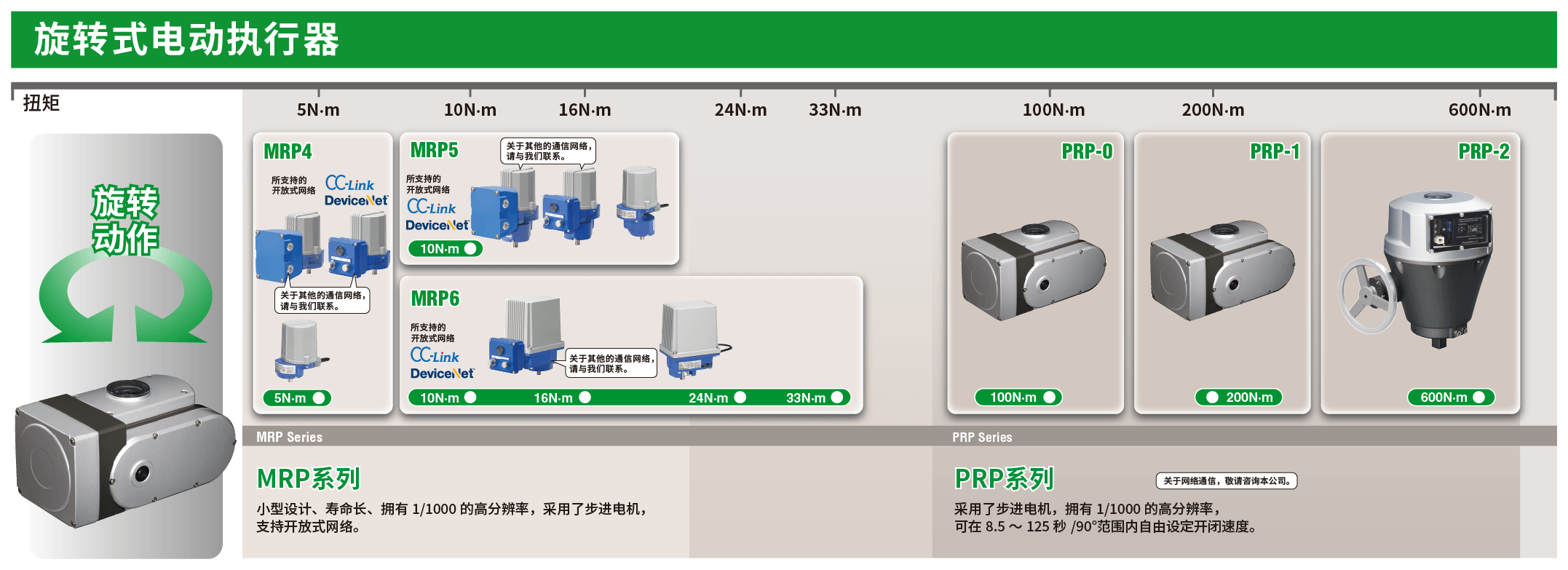

| 旋转式电动执行器 |  扩大图 |
||
|---|---|---|---|
| MRP系列 | PRP系列 | ||
小型设计、寿命长、拥有1/1000的高分辨率，采用了步进电机， 支持开放式网络。 |
关于网络通信，敬请咨询本公司。 采用了步进电机，拥有1/1000的高分辨率， |
||
● 如需订购用于电动执行器的支架、接头（架台、联结器），敬请咨询本公司。
● 如需订购定制产品，敬请咨询本公司。
线性型电动执行器产品规格
|
| 小型线性动作式 电动执行器 |
  |
  |
  |
|---|---|---|---|
| Model No. | MSP4 | MSP5 | MSP6 |
| MSP4D (DeviceNet) | MSP5D (DeviceNet) | MSP6D (DeviceNet) | |
| MSP4C, MSP4C2 (CC-Link) | MSP5C, MSP5C2 (CC-Link) | MSP6C (CC-Link) | |
| Stroke | 15 mm (0.59”) | 20 mm (0.79”) | 40 mm (1.57”) |
| Position Detection | Potentiometer | ||
| Thrust | 700 N | 700 N | 2,500 N |
| 157 lbf | 157 lbf | 562 lbf | |
| Drive | Stepping motor | ||
| Sealing pressure | Spring at the full-closed position | ||
| Motor Protection | Overload (lock) protection | ||
| Restart limiting timer | |||
| Operation Time @10 mm |
MSP4, MSP4C, MSP4C2 | MSP5, MSP5C, MSP5C2 | MSP6, MSP6C |
| 5 sec. / 150 N 9 sec. / 300 N 18 sec. / 700 N |
5 sec. / 150 N 9 sec. / 300 N 18 sec. / 700 N |
5 sec. / 600 N 8 sec. / 1,200 N 15 sec. / 2,500 N |
|
| MSP4D | MSP5D | MSP6D | |
| 24 sec. / 500 N 30 sec. / 700 N |
12 sec. / 300 N 24 sec. / 500 N 30 sec. / 700 N |
9 sec. / 600 N 18 sec. / 1,200 N 24 sec. / 1,800 N 36 sec. / 2,500 N |
|
| Resolution | 1/1,000 or 0.015 mm (deadband set to 0.1 %) | 1/1,000 or 0.02 mm (deadband set to 0.1 %) |
|
| Input Signal | 4-20 mA or 1-5 V DC | ||
| DeviceNet for MSP×D, CC-Link for MSP×C | |||
| Position Signal | 1-5 V DC | ||
| DeviceNet for MSP×D, CC-Link for MSP×C | |||
| Sequential Control Signal | “Full-open” and “full-closed” contact output Limit switch: 125 V AC @0.75 A, 30 V DC @0.6 A |
||
| Forced Operation | Contact signal input: 5 V DC @2.5 mA | ||
| Failsafe Operation (optional) | — | ||
| Manual Operation | — | ||
| Operating Temperature | -5 to + 55 °C (23 to 131 °F) | ||
| Degree of Protection | IP66 | ||
| Power Input | 100 - 120 V AC, 200 - 240 V AC (not available for MSP×D or MSP×C) | ||
| 24 V DC | |||
| Housing Material | Diecast aluminum | ||
| Vibration | 0.5 G | ||
| Weight | 1.2 kg (DC powered) 1.4 kg (AC powered) |
1.2 kg (DC powered) 1.4 kg (AC powered) |
2.7 kg (DC powered) 2.8 kg (AC powered) |
| 1.5 kg (MSP4D, MSP4C) 1.8 kg (MSP4C2) |
1.5 kg (MSP5D, MSP5C) 1.8 kg (MSP5C2) |
3.0 kg (MSP6D, MSP6C) | |
| Standards & Approvals | CE | CE | CE |
Page top| 线性动作式电动执行器 |
| 线性动作式 电动执行器 |
 |
 |
| Model No. | PSN1 | PSN3 |
|---|---|---|
| Stroke | 40 mm (1.57”) | 60 mm (2.36”) |
| Position Detection | Brushless angle sensor | |
| Thrust | 3,000 N | 5,000 N |
| 674 lbf | 1,124 lbf | |
| Drive | Stepping motor | |
| Sealing pressure | Spring at both full-closed and full-open positions | |
| Motor Protection | Abnormal temperature increase (overload) detection | |
| Restart limiting timer | ||
| Overheat detection | ||
| Motor preheat function | ||
| Operation Time @10 mm |
0.30 - 5.65 mm/s | 0.22 - 4.02 mm/s |
| Resolution | 0.04 mm | 0.06 mm |
| Input Signal | 4-20 mA or 1-5 V DC | |
| Position Signal | 4-20 mA DC | |
| Sequential Control Signal | “Full-open”, “full-closed” and “alarm” contact output Open collector: 30 V DC @100 mA max. |
|
| Forced Operation | Contact signal input: 5 V DC @2.5 mA | |
| Failsafe Operation (optional) | Rechargeable Nickel-cadmium battery | |
| Manual Operation | Available | Available |
| Operating Temperature | -25 to + 55 °C (-13 to + 131 °F) | -15 to + 55 °C (5 to 131 °F) |
| Degree of Protection | IP66 | |
| Power Input | 100 - 120 V AC, 200 - 240 V AC | |
| 24 V DC | ||
| Housing Material | Diecast aluminum | Aluminum alloy |
| Vibration | 2 G | 2 G |
| Weight | 5.9 kg 7.2 kg (with failsafe function) |
8.9 kg 10.2 kg (with failsafe function) |
| Standards & Approvals | CE | CE |
旋转式电动执行器产品规格
| 小型旋转动作式电动执行器 |
| 小型旋转动作式 电动执行器 |
  |
  |
  |
| Model No. | MRP4 | MRP5 | MRP6 |
|---|---|---|---|
| MRP4D (DeviceNet) | MRP5D (DeviceNet) | MRP6D (DeviceNet) | |
| MRP4C, MRP4C2 (CC-Link) | MRP5C, MRP5C2 (CC-Link) | MRP6C (CC-Link) | |
| Rotation Angle | 90°, 180° | 90° | 90°, 180° |
| Position Detection | Potentiometer | ||
| Torque | 5 N·m | 10 N·m | 33 N·m |
| 3.69 lbf·ft | 7.38 lbf·ft | 24.3 lbf·ft | |
| Drive | Stepping motor | ||
| Motor Protection | Overload (lock) protection | ||
| Restart limiting timer | |||
| Operation Time @90° | MRP4, MRP4C, MRP4C2 | MRP5, MRP5C, MRP5C2 | MRP6, MRP6C |
| 7 or 13 sec. | 13 sec. | 4, 7 or 13 sec. | |
| MRP4D | MRP5D | MRP6D | |
| 12 sec. | 22 sec. | 7, 14, 18, 27 sec. | |
| Resolution | 1/1,000 or 0.09° (deadband set to 0.1 %) | ||
| Input Signal | 4-20 mA or 1-5 V DC | ||
| DeviceNet for MRP×D, CC-Link for MRP×C | |||
| Position Signal | Potentiometer | ||
| DeviceNet for MRP×D, CC-Link for MRP×C | |||
| Sequential Control Signal | “Full-open” and “full-closed” contact output Limit switch: 125 V AC @0.75 A, 30 V DC @0.6 A “Overload” relay contact output: 250 V AC @1 A, 30 V DC @1 A |
||
| Forced Operation | Contact signal input, 5 V DC @2.5 mA | ||
| Failsafe Operation (optional) | — | ||
| Manual Operation | — | — | Available |
| Operating Temperature | -5 to + 55 °C (23 to 131 °F) | ||
| Degree of Protection | IP66 | ||
| Power Input | 100 - 120 V AC, 200 - 240 V AC (not available for MRP×D or MRP×C) | ||
| 24 V DC | |||
| Housing Material | Diecast aluminum | ||
| Vibration | 0.5 G | ||
| Weight | 1.1 kg (DC powered) 1.3 kg (AC powered) |
1.5 kg (DC powered) 1.7 kg (AC powered) |
2.7 kg (DC powered) 2.8 kg (AC powered) |
| 1.4 kg (MRP4D, MRP4C) 1.7 kg (MRP4C2) | 1.8 kg (MRP5D, MRP5C) 2.0 kg (MRP5C2) | 3.0 kg (MRP6D, MRP6C) | |
| Standards & Approvals | CE | CE | CE |
| 旋转动作式电动执行器 |
| 旋转动作式 电动执行器 |
 |
|
 |
| Model No. | PRP-0 | PRP-1 | PRP-2 |
|---|---|---|---|
| Rotation Angle | 90° | 90° | 90° |
| Position Detection | Potentiometer | ||
| Torque | 100 N·m | 200 N·m | 600 N·m |
| 73.8 lbf·ft | 148 lbf·ft | 443 lbf·ft | |
| Drive | Stepping motor | ||
| Motor Protection | Overload (lock) protection | ||
| Abnormal temperature increase (overload) detection | Abnormal temperature increase protection for the motor |
||
| Restart limiting timer | |||
| Motor preheat function | |||
| Operation Time @90° | 8.5 to 125 sec. adjustable; factory set to 12 or 24 sec. |
16 to 125 sec. adjustable; factory set to 16 or 24 sec. |
34 to 270 sec. adjustable; factory set to 34 or 50 sec. |
| Resolution | 1/1,000 with 0.1 % deadband, 1/200 with 0.5 % deadband |
1/300 to 1/1,000 | |
| Input Signal | 4-20 mA or 1-5 V DC | ||
| Position Signal | 4-20 mA DC (300 Ω) | ||
| Sequential Control Signal | “Full-open”, “full-closed” and “alarm” contact output Open collector: 30 V DC @100 mA max. |
||
| Forced Operation | Contact signal input, 5 V DC @2.5 mA | ||
| Failsafe Operation (optional) |
Rechargeable Nickel-cadmium battery | — | |
| Manual Operation | 10 turns @90° | 15 turns @90° | |
| Operating Temperature | -20 to + 55 °C (-4 to 131 °F) | ||
| Degree of Protection | IP66 | ||
| Power Input | 100 - 120 V AC, 200 - 240 V AC | ||
| Housing Material | Diecast aluminum Baked acrylic resin coating |
Aluminum alloy (type: ADC12) Baked acrylic resin coating |
|
| Vibration | 2 G | ||
| Weight | 10.8 kg (12.1 kg with failsafe operation) | 26.5 kg | |
| Standards & Approvals | Lloyd’s | Lloyd’s | — |
