HUB模块远程I/O JC系列
HUB Module for Remote I/O (JC Series)

HUB Module for 远程I/O

The HUB Module extends total length of network cable and branch cable.

3 or 7-port

SYSTEM CONFIGURATION EXAMPLES (HLS use)

*1	Max. transmission distance between master module and HUB module, HUB module and HUB module, HUB module and slave module is as follows. 100 m at 12 Mbps, 200 m at 6 Mbps and 300 m at 3 Mbps.
*2	Be sure to connect HLS0A/HLS0B to the host side.
*3	The terminating resistor must be enabled for the modules at both end of the communication line. The terminating resistor is incorporated in the feeder side port of the HUB module.

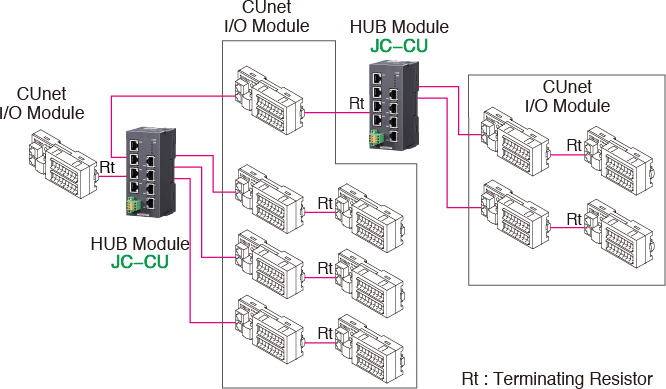

SYSTEM CONFIGURATION EXAMPLES (CUnet use)

SYSTEM CONFIGURATION EXAMPLES

*1	Max. transmission distance between CUnet I/O module and HUB module, HUB module and HUB module is as follows. 100 m at 12 Mbps, 200 m at 6 Mbps and 300 m at 3 Mbps.
*2	Be sure to connect CU0A/CU0B to the host side.
*3	The terminating resistor must be enabled for the modules at both end of the communication line. The terminating resistor is incorporated in the feeder side port of the HUB module.

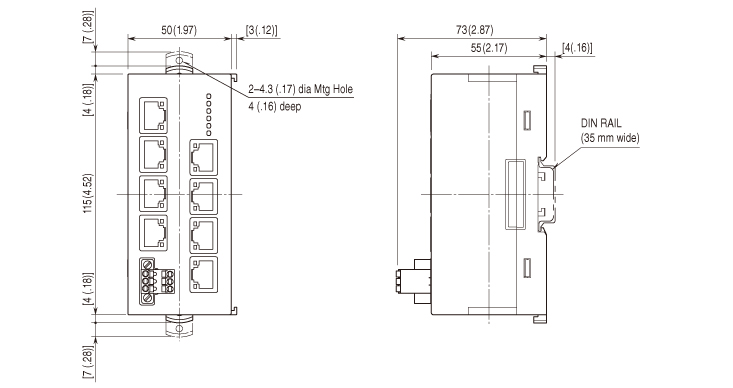

外形尺寸图 [单位：mm(inch)]
