Wireless LAN Tower Light
IT40SW, IT50SW, IT60SW 系列
|
 |
||||||||||||||||
This device is approved for use in all EU member countries. |
The IT40SW, IT50SW and IT60SW Series are preassembled tower lights of 40-mm, 50-mm and 60-mm diameter LED modules with wireless LAN connectivity. The wireless LAN access point built in the IP 65 protected tower light is a simple and practical solution for status remote monitoring, data logging and supervisory control of manufacturing equipment and processes in harsh industrial environment. The wireless LAN capability complying with IEEE 802.11b/g/n allows a wide compatibility with remote I/O modules and web-enabled data loggers, thus realizing versatile applications such as data acquisition and control of multiple machines by single master PLC located in one without needing hardwiring between each of them, or event notification to tablet devices with texts and images from manufacturing equipment. The LED lights are controlled either by local contact inputs or by a host PLC/PC via Modbus/TCP network.
|
|
| APPLICATION EXAMPLES | |

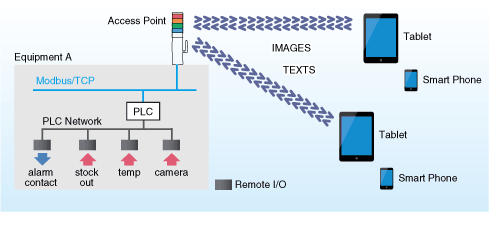

| Remote monitoring and control of an equipment using mobile interface | |
When an abnormality occurs in a manufacturing equipment built with a web-enabled remote terminal, alarm status information including images and texts can be sent to tablets and smart phones via a wireless LAN tower light. (Customer’s application software needed to communicate with tablets) |
 |

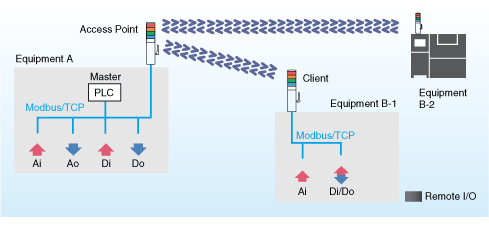

| No hardwiring between multiple sets of equipment to monitor and control by a single master PLC | |
Multiple slave machines can be monitored and controlled by a single master PLC via wireless LAN network. |
 |
支持开放式网络的多层式显示灯
IT40SR, IT50SR, IT60SR 系列
| 主要功能及特点 | |
 |
节能，免维护的LED灯 |
|
Direct Modbus/TCP and CC-Link control saves wiring and cost |
|
采用了本公司独有的反射系统，明亮而均匀的发光 |
|
LED模块的数量和颜色可自由组合 |
|
Rugged IP 65 construction is ideal for harsh industrial applications |
  |
|
IT40SR、IT50SR和IT60SR系列为预装配多层式显示灯，LED模块的直径分别为40mm、50mm和60mm。可经由以太网Modbus/TCP（机型：ITxxSRE）或CC-Link（机型：ITxxSRC），通过PLC来实现直接控制。 如果与本公司的远程I/O模块组合使用，通过通讯电缆将LED模块连接至远程PLC后，现场数字量信号即可触发LED灯，大幅减少了传感设备至PLC输入卡和PLC输出卡至灯的平行布线。 还有不带网络连接的现场控制用触点输入型产品（ITxxSA1）供选择。 |

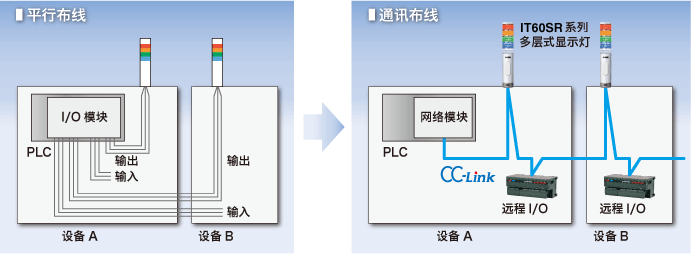

| 应用示例 |
 |
Discrete Input Tower Light
IT40SA, IT50SA, IT60SA 系列
| 主要功能及特点 | |
|
Energy saving, maintenance free LED lights |
|
Discrete input tower light |
|
Bright and even illumination |
|
Number and color of LED modules can be freely combined |
|
Rugged IP 65 construction is ideal for harsh industrial applications |
|
|
The IT40SA, IT50SA and IT60SA Series are preassembled tower lights of 40-mm, 50-mm and 60-mm diameter LED modules. |
|
| 应用示例 | |
 |
|
