전동 액추에이터 - Selection Guide
Electric Actuators - Selection Guide
전동식 액추에이터 라인업
리니어 모션 타입 | Enlarged view | ||
---|---|---|---|
MSP 시리즈 | PSN 시리즈 | ||
소형, 긴 수명, 1/1000의 고분해능, 오픈 네트워크에도 대응 가능한 스테핑 모터가 탑재된 액추에이터입니다. |
스테핑 모터 탑재, 1/1000의 고분해능, 개폐 속도를 자유롭게 설정할 수 있으며, 비접촉식 개도 센서를 채용하였습니다. |
||

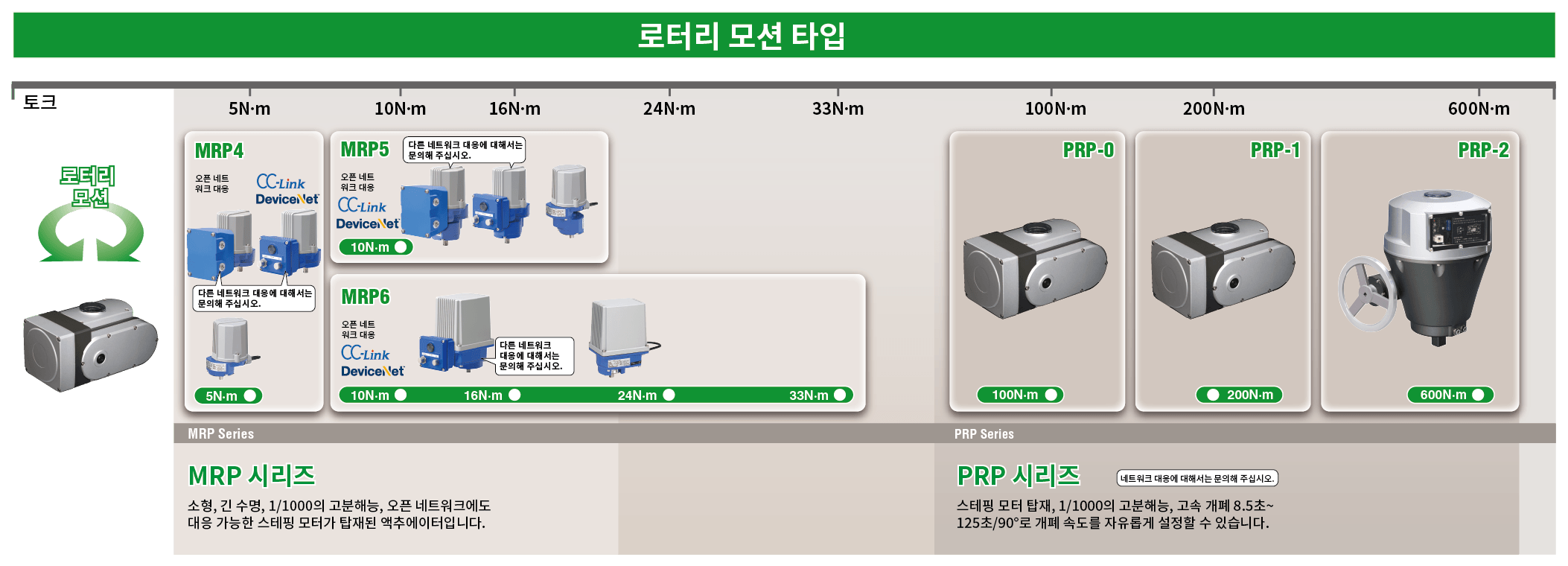

로터리 모션 타입 | Enlarged view | |
---|---|---|
MRP 시리즈 | PRP 시리즈 | |
소형, 긴 수명, 1/1000의 고분해능, 오픈 네트워크에도 대응 가능한 스테핑 모터가 탑재된 액추에이터입니다. |
스테핑 모터 탑재, 1/1000의 고분해능, 고속 개폐 8.5초~125초/90°로 개폐 속도를 자유롭게 설정할 수 있습니다. |
리니어타입 전동식 액추에이터 사양
리니어타입 전동식 액추에이터 |
소형 리니어 모션 타입 전동식 액추에이터 |
|||
Model No. | MSP4 | MSP5 | MSP6 |
---|---|---|---|
MSP4D (DeviceNet) | MSP5D (DeviceNet) | MSP6D (DeviceNet) | |
MSP4C, MSP4C2 (CC-Link) | MSP5C, MSP5C2 (CC-Link) | MSP6C (CC-Link) | |
Stroke | 15 mm (0.59”) | 20 mm (0.79”) | 40 mm (1.57”) |
Position Detection | Potentiometer | ||
Thrust | 700 N | 700 N | 2,500 N |
157 lbf | 157 lbf | 562 lbf | |
Drive | Stepping motor | ||
Sealing pressure | Spring at the full-closed position | ||
Motor Protection | Overload (lock) protection | ||
Restart limiting timer | |||
Operation Time @10 mm |
MSP4, MSP4C, MSP4C2 | MSP5, MSP5C, MSP5C2 | MSP6, MSP6C |
5 sec. / 150 N 9 sec. / 300 N 18 sec. / 700 N |
5 sec. / 150 N 9 sec. / 300 N 18 sec. / 700 N |
5 sec. / 600 N 8 sec. / 1,200 N 15 sec. / 2,500 N |
|
MSP4D | MSP5D | MSP6D | |
24 sec. / 500 N 30 sec. / 700 N |
12 sec. / 300 N 24 sec. / 500 N 30 sec. / 700 N |
9 sec. / 600 N 18 sec. / 1,200 N 24 sec. / 1,800 N 36 sec. / 2,500 N |
|
Resolution | 1/1,000 or 0.015 mm (deadband set to 0.1 %) | 1/1,000 or 0.02 mm (deadband set to 0.1 %) |
|
Input Signal | 4-20 mA or 1-5 V DC | ||
DeviceNet for MSP×D, CC-Link for MSP×C | |||
Position Signal | 1-5 V DC | ||
DeviceNet for MSP×D, CC-Link for MSP×C | |||
Sequential Control Signal | “Full-open” and “full-closed” contact output Limit switch: 125 V AC @0.75 A, 30 V DC @0.6 A |
||
Forced Operation | Contact signal input: 5 V DC @2.5 mA | ||
Failsafe Operation (optional) | — | ||
Manual Operation | — | ||
Operating Temperature | -5 to + 55 °C (23 to 131 °F) | ||
Degree of Protection | IP66 | ||
Power Input | 100 - 120 V AC, 200 - 240 V AC (not available for MSP×D or MSP×C) | ||
24 V DC | |||
Housing Material | Diecast aluminum | ||
Vibration | 0.5 G | ||
Weight | 1.2 kg (DC powered) 1.4 kg (AC powered) |
1.2 kg (DC powered) 1.4 kg (AC powered) |
2.7 kg (DC powered) 2.8 kg (AC powered) |
1.5 kg (MSP4D, MSP4C) 1.8 kg (MSP4C2) |
1.5 kg (MSP5D, MSP5C) 1.8 kg (MSP5C2) |
3.0 kg (MSP6D, MSP6C) | |
Standards & Approvals | CE | CE | CE |
리니어 모션 타입 전동식 액추에이터 |
리니어 모션 타입 전동식 액추에이터 |
||
Model No. | PSN1 | PSN3 |
---|---|---|
Stroke | 40 mm (1.57”) | 60 mm (2.36”) |
Position Detection | Brushless angle sensor | |
Thrust | 3,000 N | 5,000 N |
674 lbf | 1,124 lbf | |
Drive | Stepping motor | |
Sealing pressure | Spring at both full-closed and full-open positions | |
Motor Protection | Abnormal temperature increase (overload) detection | |
Restart limiting timer | ||
Overheat detection | ||
Motor preheat function | ||
Operation Time @10 mm |
0.30 - 5.65 mm/s | 0.22 - 4.02 mm/s |
Resolution | 0.04 mm | 0.06 mm |
Input Signal | 4-20 mA or 1-5 V DC | |
Position Signal | 4-20 mA DC | |
Sequential Control Signal | “Full-open”, “full-closed” and “alarm” contact output Open collector: 30 V DC @100 mA max. |
|
Forced Operation | Contact signal input: 5 V DC @2.5 mA | |
Failsafe Operation (optional) | Rechargeable Nickel-cadmium battery | |
Manual Operation | Available | Available |
Operating Temperature | -25 to + 55 °C (-13 to + 131 °F) | -15 to + 55 °C (5 to 131 °F) |
Degree of Protection | IP66 | |
Power Input | 100 - 120 V AC, 200 - 240 V AC | |
24 V DC | ||
Housing Material | Diecast aluminum | Aluminum alloy |
Vibration | 2 G | 2 G |
Weight | 5.9 kg 7.2 kg (with failsafe function) |
8.9 kg 10.2 kg (with failsafe function) |
Standards & Approvals | CE | CE |
로터리타입 전동식 액추에이터 사양
소형 로터리 모션 타입 전동식 액추에이터 |
소형 로터리 모션 타입 전동식 액추에이터 |
|||
Model No. | MRP4 | MRP5 | MRP6 |
---|---|---|---|
MRP4D (DeviceNet) | MRP5D (DeviceNet) | MRP6D (DeviceNet) | |
MRP4C, MRP4C2 (CC-Link) | MRP5C, MRP5C2 (CC-Link) | MRP6C (CC-Link) | |
Rotation Angle | 90°, 180° | 90° | 90°, 180° |
Position Detection | Potentiometer | ||
Torque | 5 N·m | 10 N·m | 33 N·m |
3.69 lbf·ft | 7.38 lbf·ft | 24.3 lbf·ft | |
Drive | Stepping motor | ||
Motor Protection | Overload (lock) protection | ||
Restart limiting timer | |||
Operation Time @90° | MRP4, MRP4C, MRP4C2 | MRP5, MRP5C, MRP5C2 | MRP6, MRP6C |
7 or 13 sec. | 13 sec. | 4, 7 or 13 sec. | |
MRP4D | MRP5D | MRP6D | |
12 sec. | 22 sec. | 7, 14, 18, 27 sec. | |
Resolution | 1/1,000 or 0.09° (deadband set to 0.1 %) | ||
Input Signal | 4-20 mA or 1-5 V DC | ||
DeviceNet for MRP×D, CC-Link for MRP×C | |||
Position Signal | Potentiometer | ||
DeviceNet for MRP×D, CC-Link for MRP×C | |||
Sequential Control Signal | “Full-open” and “full-closed” contact output Limit switch: 125 V AC @0.75 A, 30 V DC @0.6 A “Overload” relay contact output: 250 V AC @1 A, 30 V DC @1 A |
||
Forced Operation | Contact signal input, 5 V DC @2.5 mA | ||
Failsafe Operation (optional) | — | ||
Manual Operation | — | — | Available |
Operating Temperature | -5 to + 55 °C (23 to 131 °F) | ||
Degree of Protection | IP66 | ||
Power Input | 100 - 120 V AC, 200 - 240 V AC (not available for MRP×D or MRP×C) | ||
24 V DC | |||
Housing Material | Diecast aluminum | ||
Vibration | 0.5 G | ||
Weight | 1.1 kg (DC powered) 1.3 kg (AC powered) |
1.5 kg (DC powered) 1.7 kg (AC powered) |
2.7 kg (DC powered) 2.8 kg (AC powered) |
1.4 kg (MRP4D, MRP4C) 1.7 kg (MRP4C2) |
1.8 kg (MRP5D, MRP5C) 2.0 kg (MRP5C2) |
3.0 kg (MRP6D, MRP6C) | |
Standards & Approvals | CE | CE | CE |
로터리 모션 타입 전동식 액추에이터 |
로터리 모션 타입 전동식 액추에이터 |
|||
Model No. | PRP-0 | PRP-1 | PRP-2 |
---|---|---|---|
Rotation Angle | 90° | 90° | 90° |
Position Detection | Potentiometer | ||
Torque | 100 N·m | 200 N·m | 600 N·m |
73.8 lbf·ft | 148 lbf·ft | 443 lbf·ft | |
Drive | Stepping motor | ||
Motor Protection | Overload (lock) protection | ||
Abnormal temperature increase (overload) detection | Abnormal temperature increase protection for the motor |
||
Restart limiting timer | |||
Motor preheat function | |||
Operation Time @90° | 8.5 to 125 sec. adjustable; factory set to 12 or 24 sec. |
16 to 125 sec. adjustable; factory set to 16 or 24 sec. |
34 to 270 sec. adjustable; factory set to 34 or 50 sec. |
Resolution | 1/1,000 with 0.1 % deadband, 1/200 with 0.5 % deadband |
1/300 to 1/1,000 | |
Input Signal | 4-20 mA or 1-5 V DC | ||
Position Signal | 4-20 mA DC (300 Ω) | ||
Sequential Control Signal | “Full-open”, “full-closed” and “alarm” contact output Open collector: 30 V DC @100 mA max. |
||
Forced Operation | Contact signal input, 5 V DC @2.5 mA | ||
Failsafe Operation (optional) |
Rechargeable Nickel-cadmium battery | — | |
Manual Operation | 10 turns @90° | 15 turns @90° | |
Operating Temperature | -20 to + 55 °C (-4 to 131 °F) | ||
Degree of Protection | IP66 | ||
Power Input | 100 - 120 V AC, 200 - 240 V AC | ||
Housing Material | Diecast aluminum Baked acrylic resin coating |
Aluminum alloy (type: ADC12) Baked acrylic resin coating |
|
Vibration | 2 G | ||
Weight | 10.8 kg (12.1 kg with failsafe operation) | 26.5 kg | |
Standards & Approvals | Lloyd’s | Lloyd’s | — |
