DL30 시리즈
Web Enabled Remote Terminal Unit

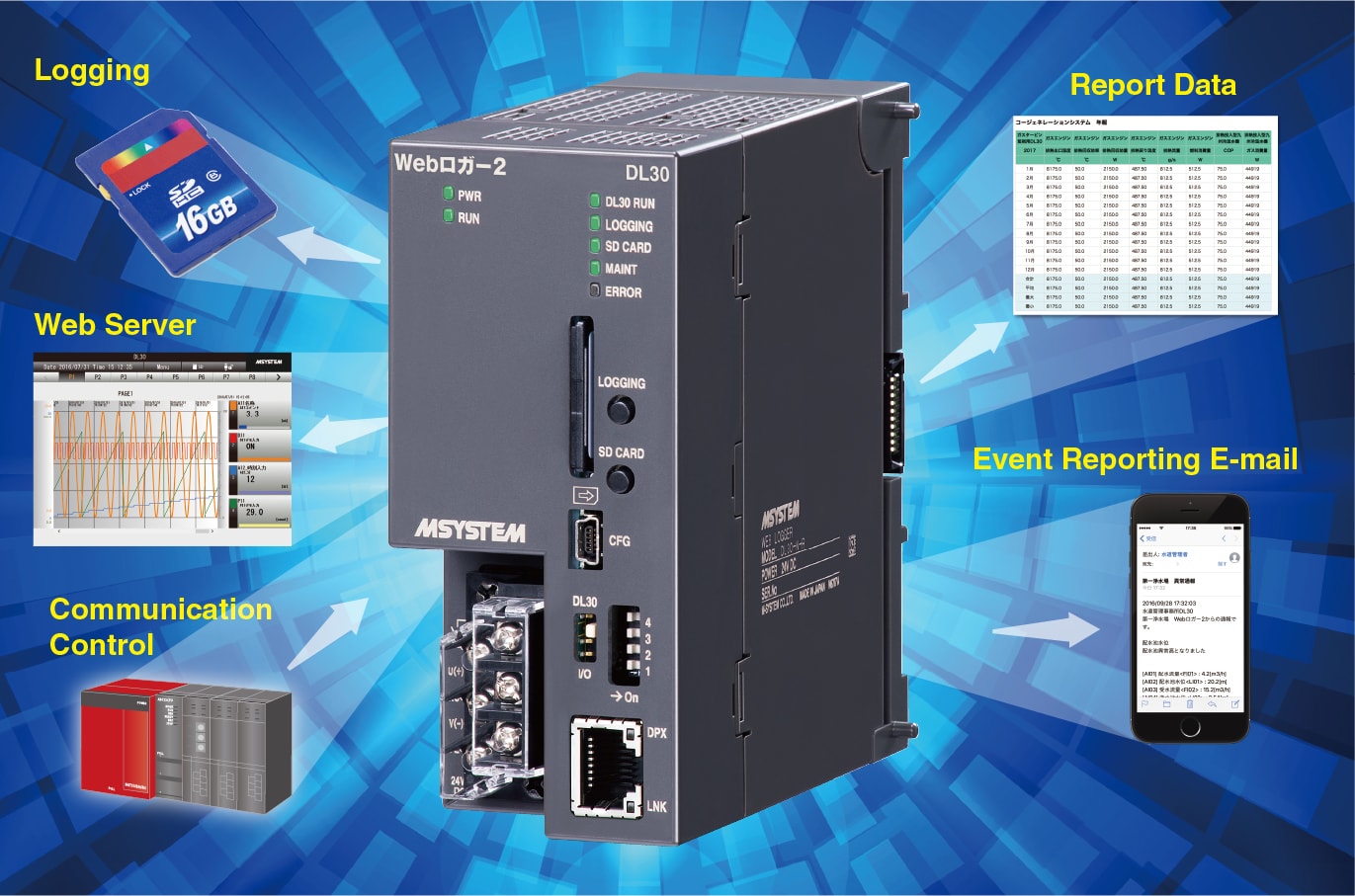

Web 데이터 로거 DL30은 Web 화면에서의 원격 감시 기능, 데이터 로깅 기능, 이벤트 통보 기능과 장부 및 전표 작성 기능 등을 갖춘 현장 설치형 데이터 로거입니다.
Remotely monitors temperature, pressure, voltage, and operation status of instruments and equipment through the communication infrastructure, and records them in an SD card.
Functions
- Simple web server (e.g., for a trend screen)
- Data logging
- Email notification function
- HTTP/HTTPS communications function
- FTP/FTPS communications function
- Modbus/TCP communications function
- SLMP communications function
- Report (daily, monthly, and annual report) creation function
- Various calculation inputs
- User defined views
- Scheduling
- I/O mapping
- Process operation monitor function
- R30 Series remote I/O modules available to accept a wide variety of field signals
| Function | Data logging (only time and value) |
|---|---|
| Memory | Main memory + SD card |
| Data format | CSV |
| Number of channels | Max. 128 |
| Storing cycle | 1 sec. to 1 day |
| Report form | Daily / monthly / yearly report automatically generated in CSV format and stored in SD card |
| Web server | YES |
| YES; E-mailing can be enabled/disabled by specifying business hours and holidays in a calendar. Encrypted communication supported. (SMTP over SSL) . |
|
| Modbus/TCP | Master/slave + Output control + I/O mapping |
| FTP | Server/client; Report form files can be attachefd to mails. FTPS protocol allows encrypted communication. |
| Main applications | Data logging at field site with preformatted report sending function; RTU for IoT |
| Available I/O type and number |
Ai x 128 (16-bit analog)
Di x 256 Pi x 128 (32-bit analog and pulse) MA x 256 (analog function)
MD x 256 (digital function) Do x 128 Ao x 64 |
| Arithmetic functions | YES |

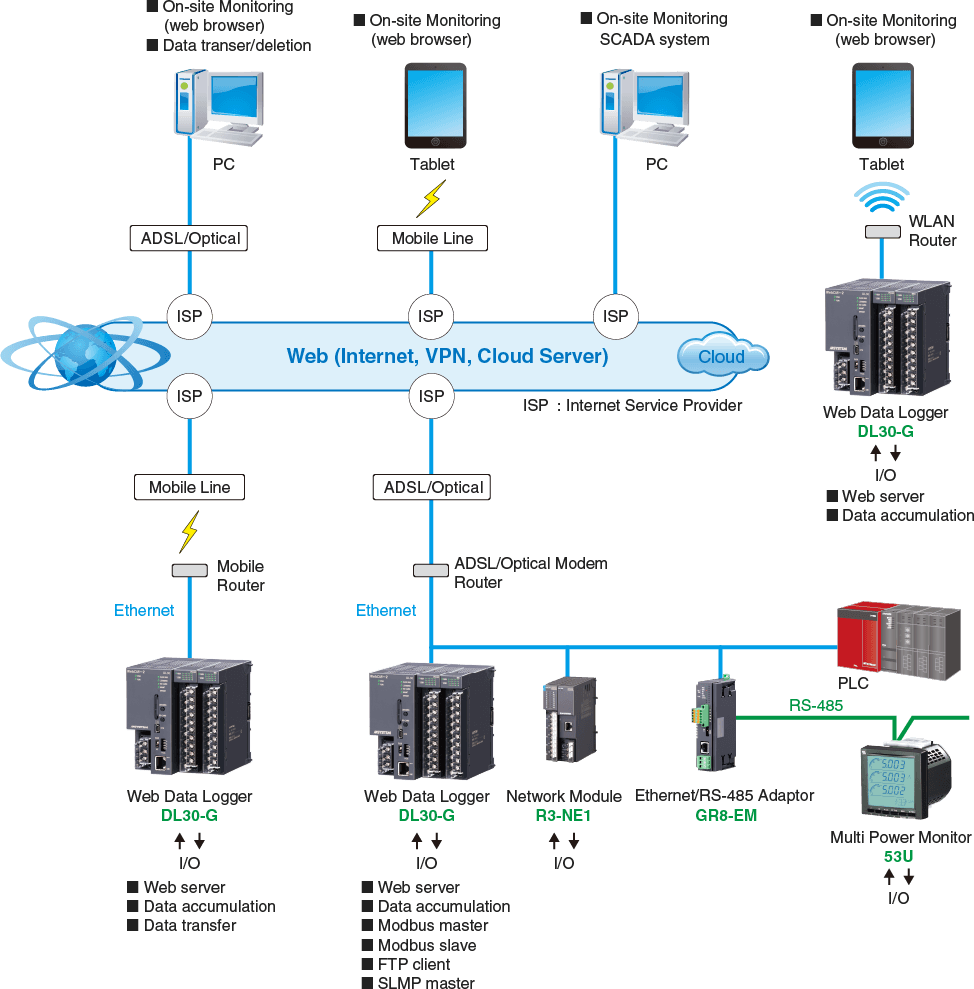

| DL30 Series System Concept |
Devices other than the DL30-G in the configuration below shall be provided by the user.
Note:
To use the event reporting e-mail function, an e-mail account from an internet service provider is required.
To monitor via the internet, you need to have a fixed IP address, or use dynamic DNS service.
As to types of mobile router to be used with, consult us.

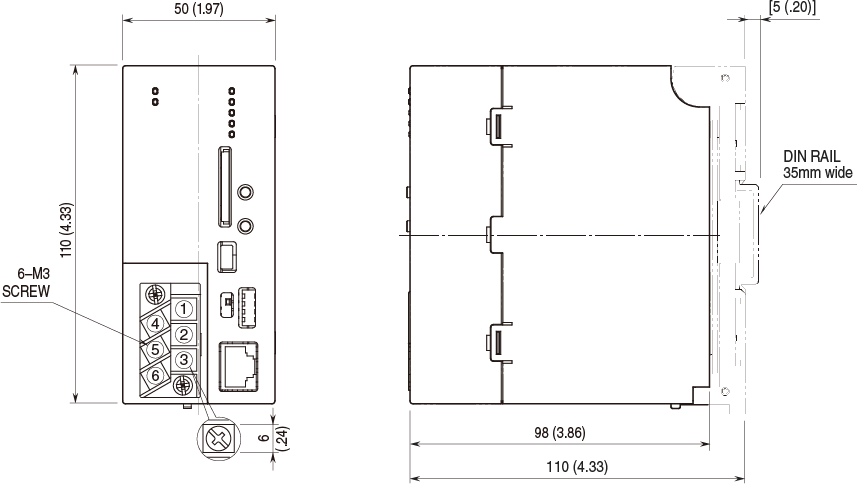

| DIMENSIONS unit: mm (inch) |
