Model
|
Function & Features |
MDP-24-1
|
4-20mA DC & Pulse signal lines |
MDM2A-24
|
4-20mA DC & Pulse signal lines with Life monitor
function |
MDPA-24
|
4-20mA DC & Pulse signal lines with Life monitor
function and degradation checker |
MA-100 / 200
|
Power supply lines 100-120V or 200-240V AC; 2A |
MAX-100 / 200
|
Power supply lines 100-120V or 200-240V AC; 5A |
MAA-100 / 200
|
Power supply lines 100-120V or 200-240V AC with Life
monitor function; 5A |
| MAAC-100 / 200 |
Power supply lines 100-120V or 200-240V AC with Life
monitor function and surge counter; 5A |

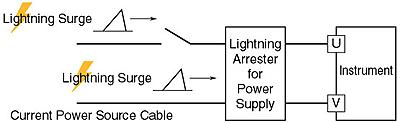

During
a recent lightning storm, the power was turned off but some instruments
were still damaged. Can you explain this?

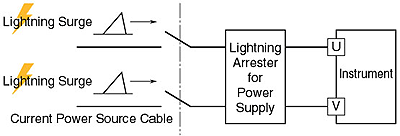

Lightning
jumped across the single-pole switch into the instrumentation. We would
recommend to use a double-pole switch. However, this does not insure that
a severe lightning surge will not damage it depending on the insulation
resistance of the switch or the size of the lightning pulse. The only sure
solution is to install a lightning surge protector in line with the power
source.
