Application Notes

EAP-031003

The standard M2VS output is up to 12V, but I need 0-15V dc.

1. Special unit is available. Accuracy and temp. coefficient is the same as the standard M2VS.
2. You can also use two of the standard M2VS or the W2VS units, by special wiring.

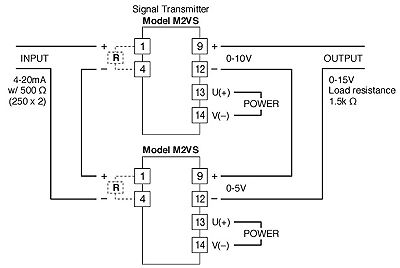

Solution A) If 500 ohms input resistance is too large, 100 ohms (50 ohms x 2) can be used.

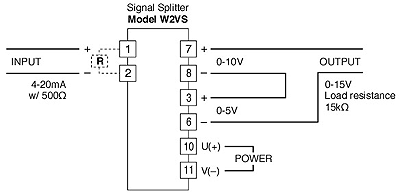

Solution B) Load resistance is not as good as in the M2VS solution.
