| EAP-031025 |
 I
have an application involving the simple need to convert a millivolt signal
from a load cell into a 4-20mA DC to go to a PLC. Our load cell is calibrated
for 2mV/V with a 10V dc excitation supply. Which unit should I use? |
 |

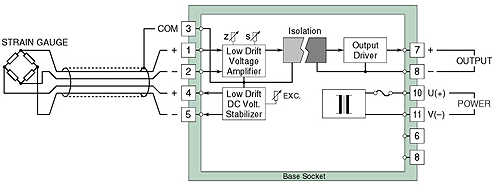

 The
M-System model M2LCS-2A would be a perfect fit for this application. Calibrated
for 2mV/V @10V excitation, the M2LCS would actually see an input range of
0-20mV DC (2mV x 10V excitation). The M2LCS then converts this voltage range
into a 4-20mA DC signal. The M2LCS also provides the excitation via its
onboard power supply. |
|
 |
|

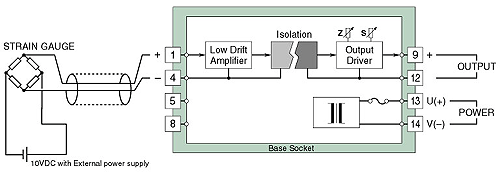

| Alternatively, this application could also be solved using a model M2VS-0A calibrated 0-20mV DC with the use of an external power supply. | |
 |
| M-System has flexible solutions to meet your specific application and requirements. Consult our Signal Conditioners Data Library. |
 |
