 M-System's

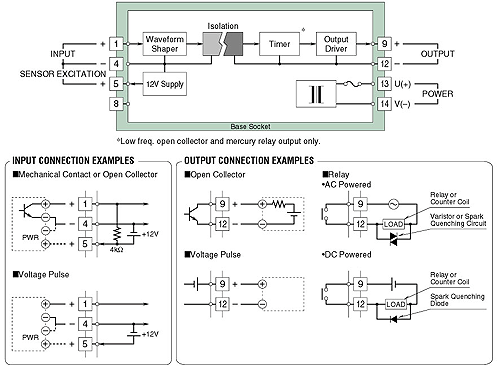

Model M2PP is designed specifically to accept mechanical contacts, open
collectors or voltage pulses (frequencies) and provide up to 2000V AC of
isolation between input, output and power. The output type can be any choice
ranging from mechanical contacts with a 30Hz maximum to a high frequency
24-volt pulse at 10,000Hz maximum. An on-board sensor excitation power supply
eliminates the need to add an external supply in the application.
The model M2PP is also a convenient way to convert one frequency input type
to another. For example, a dry contact input may be converted to a 5-volt
voltage pulse output at the same frequency. The input frequency is always
repeated at the output, although the pulse type may be different. The difference
between model M2PP of Mini-M series and model PP of M-Unit series are model
M2PP's size and price are more economical and output logic can be specified. |
What
are the major characteristics of Model M2PP?
