You have a pump being controlled with an ON/OFF
output of a single relay contact. A level sensor is being used as the feedback
element for the pump control which is supplying a 4-20 mAdc output. You
want the relay to shut the pump off when the level increases enough to reach
70% of full-scale (15.2 mAdc output from the level sensor). The pump is
not to turn on again until the level decreases enough to reach 10% of full-scale
(5.6 mAdc output from the level sensor).
In order to turn the control relay ON and OFF at these different points,
a DC Alarm unit model ACV can be used. Conventional DC alarm units have
only a limited hysteresis (deadband) adjustment capability with a maximum
of 2%. However, the model ACV provides an adjustable wide-range hysteresis
(deadband) adjustment from 1 to 99 % of the full-scale input range as a
standard feature.

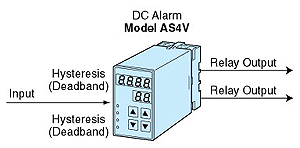

The standard model AS4V also provides dual setpoints (relay outputs) with
independent hysteresis (deadband) adjustments and LED indicator lamps for
both setpoint outputs. |
