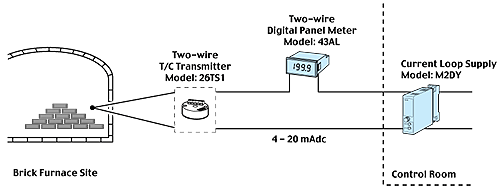

 As in the figure below, you can realize your system to use the M-System's
following products,
| • Two-wire type thermocouple transmitter (Model
26TS1) |
| • Two-wire digital panel meter (Model 43AL) |
| • Current loop power supply for 26TS1 (Model
M2DY) |
The 43AL digital panel meter does not need an external power and it works
at 4-20 mA. The 26TS1 accepts thermocouple and provides 4-20 mA in combination
with the M2DY current loop supply.
Both 26TS1 and 43AL are suitable for field-mounting; the 26TS1 in a DIN
type B sensor head, and the 43AL can be mounted inside the 6BX-E field enclosure
using the A-35 adaptor. |
We are planning to measure the temperature of brick making furnace with
thermocouple. In ordinary case we check it in the control room, 200 meters
far from the furnace. We also want to check it at the furnace site but we
do not have a power for instrumentation equipment there.
