Request Info2-wire Position Transmitters
Explosion-proof type available
(Model:VOS-E, VOS-ER)

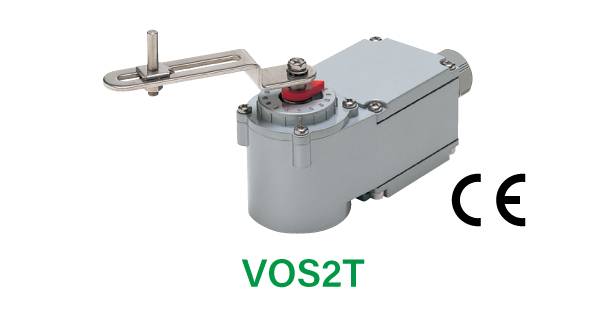

2-wire Position Transmitter VOS2T

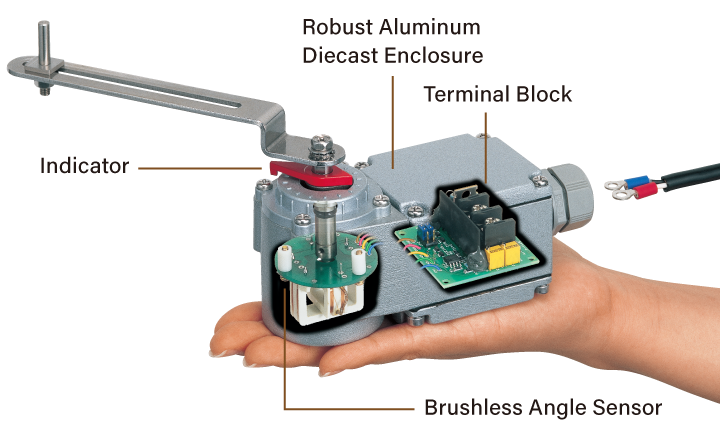

Model VOS2T and VOS2T-R are two-wire position transmitters incorporating a brushless angle sensor as their key sensing component. They detect rotating angles of pneumatic and electric actuators and send 4 to 20mA DC signal proportional to the angles.
They are also widely used in monitoring and automating various mechanical systems.
- Lightweight & compact design
- High resolution
- Direct and reverse actions are selectable in field
- IP66 diecast aluminum enclosure is suitable for field applications
| Linear Motion Type | Rotary Motion Type | |
|---|---|---|
| Model | VOS2T  |
VOS2T-R |
| Linearity Assured Range | -22.5 to +22.5° | -45 to +45° |
| Effective Rotating Angle | approx. -27 to +27° | approx. -55 to +55° |
| Stopper Strength | 1.37 N·m (1.011 ft·lbs) with static load | |
| Output Action | Direct or Reverse | |
| Output Signal | 4 - 20 mA DC | |
| Load Resistance | 0 - 600 Ω with 24 V DC supply | |
| Supply Voltage | 15 - 28 V DC | |
| Degree of Protection | IP66 | |
| Wiring Conduit | G 1/2 | |
| Operating Temperature | -5 to +60°C (23 to 140°F) | |
| Maximum Vibration | 2 G | |
| Approx. Weight | 550 g (1.21 lbs) without lever and cable | |
| Linearity | 1.0% within the linearity assured range | |

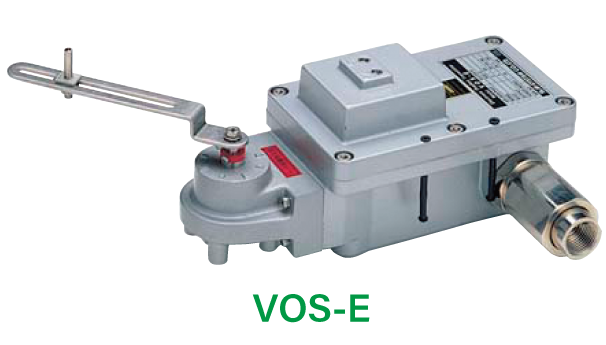

2-wire Position Transmitter VOS-E
- Differential transformer incorporated
- Light weight and compact design
- High resolution
- Zero & Span adjustable without opening the cover
- Direct or reverse action selectable
