Bargraph Indicators
48N Series

back

Bargraph Indicators 48N Series

101-segment Bargraph

  • 36 x 144 mm
  • 101-segment, 3-mm wide LED
  • Red, amber, green and blue colors
  • Custom scale with no extra cost
  • IP65 front panel
  • Separable terminal block
CE UKCA IP65

Depending on the model.

101 LED segments Number of Display Digits 4 Digits Alarm Output AC DC Powered
Products Line up
Product Catalog
  • 3-mm WIDE BARGRAPH

    The 3-mm wide, bright color bars with convex surface have a wide viewing angle of 120 degrees.

    3-mm WIDE BARGRAPH
  • Easy Maintenance

    Easily replaceable scaleplate.

    Easy Maintenance
  • Bar LED Color

    Red, Amber, Green and Blue LED colors are selectable. Red-Orange-Green multi-color LED in two display patterns are also selectable.

    Blue Red Amber Green Multi-color (red, orange and green)

    Blue Red Amber Green Multi-color
    (red, orange and green)

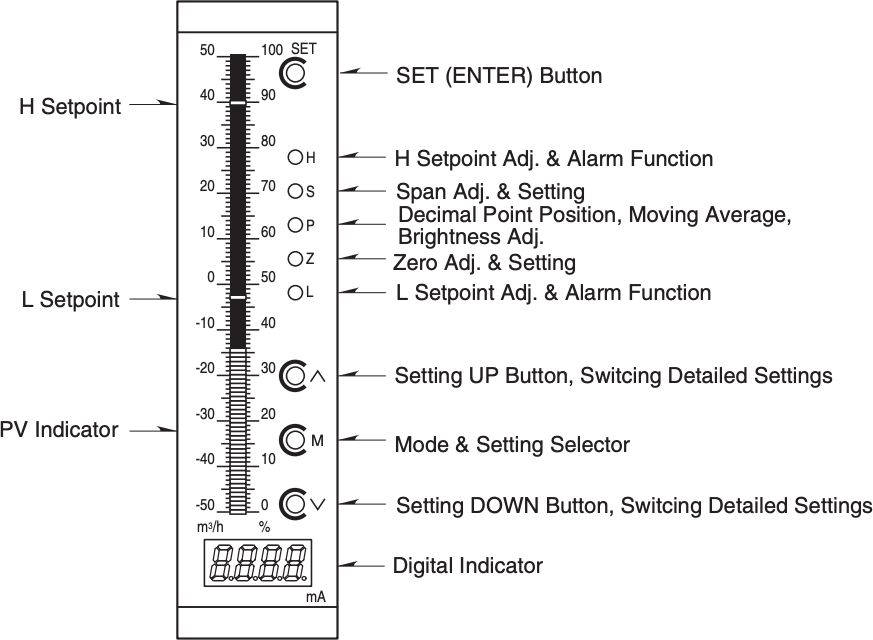

  • External View

    1. Bargraph Indicating Alarm 48NDx Series

    Alarm Output Code 0: None

    Alarm Output Code 0: None

    Note: Setpoint 1 or 2 provided only for the multi-color bar type.

    Alarm Output Code 2: 2 points

    Alarm Output Code 2: 2 points

    Alarm Output Code 4: 4 points

    Alarm Output Code 4: 4 points

    Bar Color Patterns

    Bar Color Patterns
  • External View

    2. Bargraph Indicating Alarm 48NAx Series

    Alarm Output Code 2: 2 points

    Alarm Output Code 2: 2 points

    Alarm Output Code 4: 4 points

    Alarm Output Code 4: 4 points

    Bar Color Patterns

    Bar Color Patterns
  • External View

    3. Bargraph Indicator 48NV

    Vertical Mounting

    Vertical Mounting

    Horizontal Mounting

    Horizontal Mounting

    Overrange Input

    With an input below 0%, the low-end segment (0%) blinks.
    With an input above 100%, all segments are on and the high-end segment (100%) blinks.
