Color LCD Display, 1/8 DIN Size (96x48 mm)
Paperless Recorder VR4896E-G2

back

Color LCD Display, 1/8 DIN Size (96x48 mm) Paperless Recorder VR4896E-G2

Make the Most of Your Recroder.

  • At H48 mm x W96 mm (1/8 DIN size), this paperless recorder is more compact than before.
  • The VR4896E-G2 can prove useful even in areas where it is traditionally difficult to install a recorder.
    • For those who want to record just one signal
    • For those who want to check a work log on a recorder built into the control panel
    • For those who want to quickly identify the cause of abnormalities using a recorder installed on the operation panel in the field equipment
  • Records measured data and operation and stop status of machinery and equipment onto a micro SD card.
  • High-speed sampling of up to 100 ms.
  • Front panel has a secure degree of protection IP55.
  • Uses a dedicated application to display and analyze recorded data.
CE IP55
Products Line up
Product Catalog

Display Screens

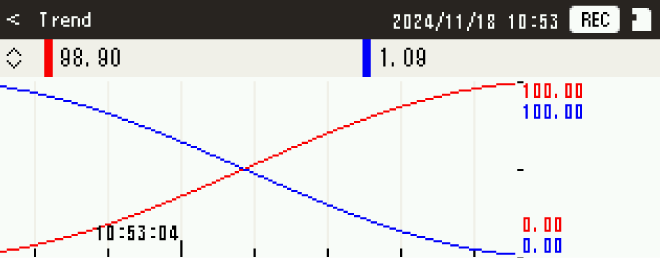

  • Trend view
    Trend view
    Chart direction Horizontal
    Number of display points 2 per view
    Number of display views 2
    Maximum number of samples 320

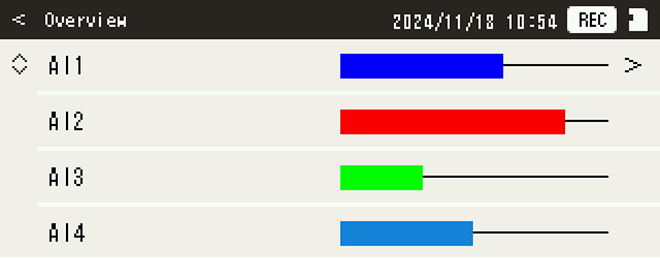

  • Overview
    Overview
    Number of display points 4 per view
    Displayed content Name, bargraph
    Number of display views 1

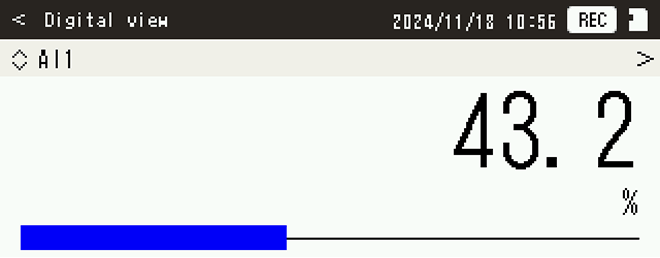

  • Digital view
    Digital view
    Number of display points 1 per view
    Displayed content Name, value, bargraph
    Number of display views 4

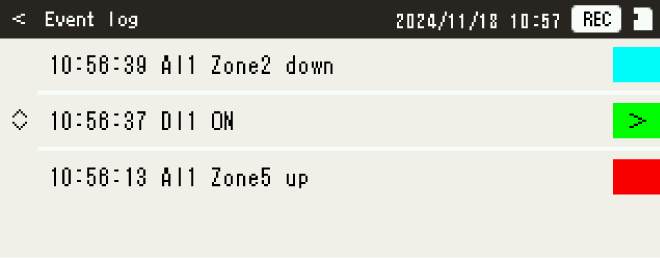

  • Log view
    Log view
    Number of displayed events 4 per page
    (the newest 32 events
    are displayed)
    Number of display views 3
    (event log, system log,
    communication log)

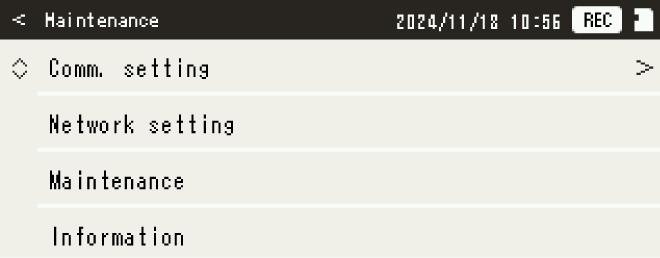

  • Maintenance view
    Maintenance view

    Used to perform setting and maintenance.

  • Screen saver

    Back light can be turned off if there is no operation for a certain period of time.

    Auto view switching

    Views can be switched automatically if there is no operation for a certain period of time.

System configuration
  • Built-in I/O
    Built-in I/O
  • Built-in I/O plus network I/O
    Built-in I/O plus network I/O

What is an operational input?
The following functions can be applied to analog signal inputs for recording:
Operational functions

Addition and subtraction / Multiplication / Division / Square root / Moving average / Delay buffer / exp / Common logarithm / Natural logarithm / Peak hold (max) / Valley hold (min) / Analog accumulation / Power / F value calculation / Antilog / Scaling / Time

Component identification and specifications

  • Front view
    Front view
  • Rear view
    Rear view

Functions and Specifications

Trend data storing

When an SD card is placed, trend data, event data and comment data are recorded in the internal memory and then transferred to the SD card at the specified time intervals.

  • Recording method

    · Normal recording: Recording continuously until recording is manually stopped.

    · Trigger recording (edge): Recording up to 100 samples of data before and after the trigger condition is met, respectively.

    · Trigger recording (level): Recording data during the trigger condition is met.

    Sampling rate

    · 100 ms

    Storing rate

    · 100 ms, 500 ms, 1 sec., 2 sec., 5 sec., 10 sec., 1 min., 2 min., 5 min., 10 min., 30 min., 1 hour

    Trend data

    · Number of channels: Max. 4 (Select from Ai, Di, Do, Oi)

    · Number of events: Max. 50000 samples × number of channels (per file)

    Event data

    · Event: Zone transition for Ai and Oi, change of Di status

    · Recorded content: Time, event

    · Number of events: 3000 (per file)

    Comment data

    · Maximum number of input characters: 32

    · Recorded content: Time, comment

    · Number of events: 1000 (per file)

  • SD card writing timing
    Storing rate SD card writing timing
    100 ms 10 min., 30 min., 1 hour
    500 ms 30 min., 1 hour, 6 hours
    1 sec. 1 hour, 6 hours, 12 hours
    2 sec. 1 hour, 6 hours, 12 hours, 1 day
    5 sec. 6 hours, 12 hours, 1 day
    10 sec. 6 hours, 12 hours, 1 day
    1 min. 1 day, 1 week
    2 min. 1 day, 1 week
    5 min. 1 day, 1 week, 1 month
    10 min. 1 day, 1 week, 1 month
    30 min. 1 day, 1 week, 1 month
    1 hour 1 week, 1 month
Writing period
  • Approx. recording time period for TRD format with a 16 GB micro SD card
    Storing rate 1 pen 2 pens 4 pens
    100 ms   8 years   4 years   2 years
    500 ms 10 years 10 years 10 years
    1 sec. 10 years 10 years 10 years
    2 sec. 10 years 10 years 10 years
    5 sec. 10 years 10 years 10 years
    10 sec. 10 years 10 years 10 years
    1 min. - 1 hour 10 years 10 years 10 years

    Note 1) Only the trend recording is enabled.

  • Approx. recording time period for CSV format with a 16 GB micro SD card
    Approx. recording time period for CSV format with a 16 GB micro SD card
    Storing rate 1 pen 2 pens 4 pens
    100 ms   4 years   2 years   1 year
    500 ms 10 years 10 years   5 years
    1 sec. 10 years 10 years 10 years
    2 sec. 10 years 10 years 10 years
    5 sec. 10 years 10 years 10 years
    10 sec. 10 years 10 years 10 years
    1 min. - 1 hour 10 years 10 years 10 years

    Note 2) Only the trend recording is enabled. (The values are calculated as 8 single-byte characters)

Viewer software

The data stored in the SD card can be displayed on the dedicated Viewer Software (Model: TRViewer). Also, data can be converted to CSV format file.

· Viewer Software (Model: TRViewer) is downloadable for free from Software Download & Upgrade open in a new window.

Alarm contact output

Do designated as alarm contact output can be turned ON at event occurrence.

Event

· Zone output of Ai, Di, Oi

· Communication failure in e-mail reporting, FTP client, Modbus/TCP and SLMP

Functions using LAN/Internet

  • E-mailing

    E-mail reporting function is available at event occurrence or at the specified time.
    Encrypted communication is supported. (SMTP over SSL)

    · Number of e-mail recipients: 8

    · Number of event reporting messages: 4

    · Number of regular reporting messages: 4

    · Channel status: Ai, Di, Oi, Do data status can be included in a mail.

  • FTP client

    Files stored in the SD card can be uploaded to an FTP server.

    · Supports FTPS (Explicit mode)

  • FTP server

    Reading and deleting files in the SD card by an FTP client is available.

    · Simultaneous connection: 1

    · Operation verified FTP client: FFFTP

  • Timekeeping

    SNTP client

    · The recorder’s internal time can be adjusted automatically.

    · Time adjustment is performed when the power is turned on and at the specified time.

  • System configuration example for the functions using LAN/Internet
    System configuration example for the functions using LAN/Internet
