Base-free Interconnecting Ultra-Slim
M60 Series

back

Base-free Interconnecting Ultra-Slim M60 Series

* Photo are M60SVS

M60 Series are 6-mm wide ultra-slim Signal Conditioners.

  • Power connector for interconnecting modules and collectively supplying power
  • Spring clamp connection for easy wiring (M60S Series)
  • e-CON connector connection for easy wiring (M60E Series)
  • 6-mm wide ultra-slim design
CE

Depending on the model.

Space-saving Three-port Isolation Four-port Isolation DC Power Supply

M60S Series (Spring clamp)
Products Line up
Product Catalog

M60E Series (e-CON connector)
Products Line up
Product Catalog

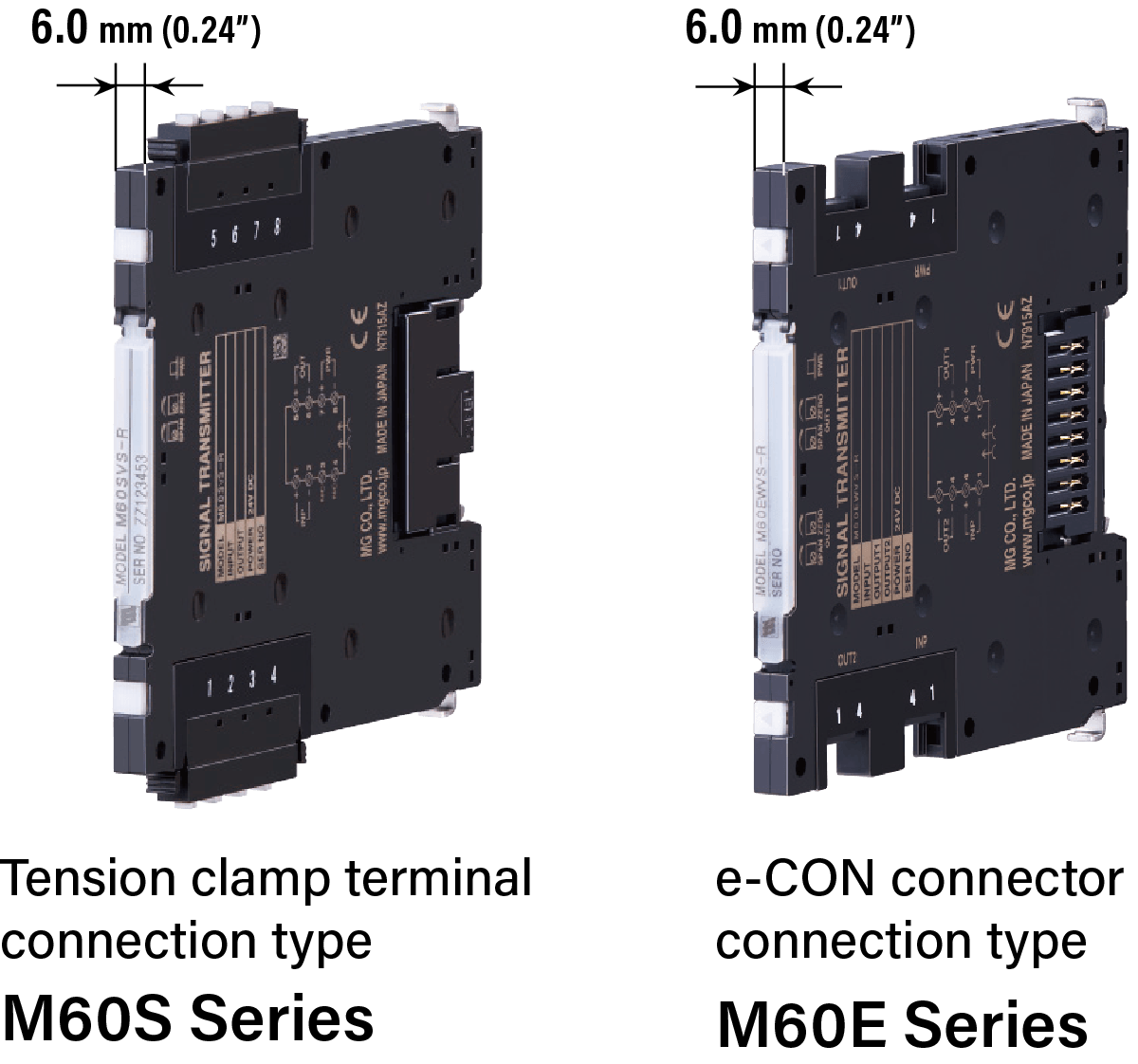

  • Two series are available with different types of terminals.
    Two series are available with different types of terminals.

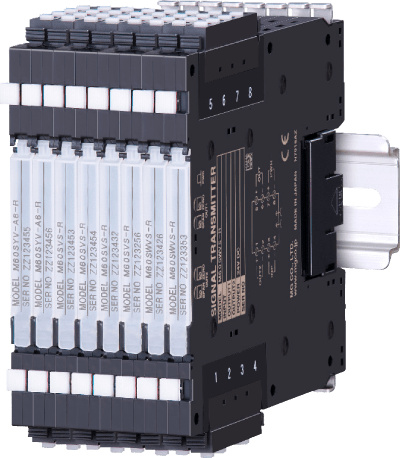

  • Space-saving type without an installation base

    Since there is no installation base, there are no empty slots on the base, making for efficient use of space. High-density mounting can be achieved through tight installation.

    Space-saving type without an installation base
  • Isolation and power supply

    Three-port isolation
    Dielectric strength: 1500 V AC @ 1 min.

    DC power supply: 24 V DC

    M60SWVS and M60EWVS have 4-port isolation. For details, see the datasheet.
    Isolation and power supply

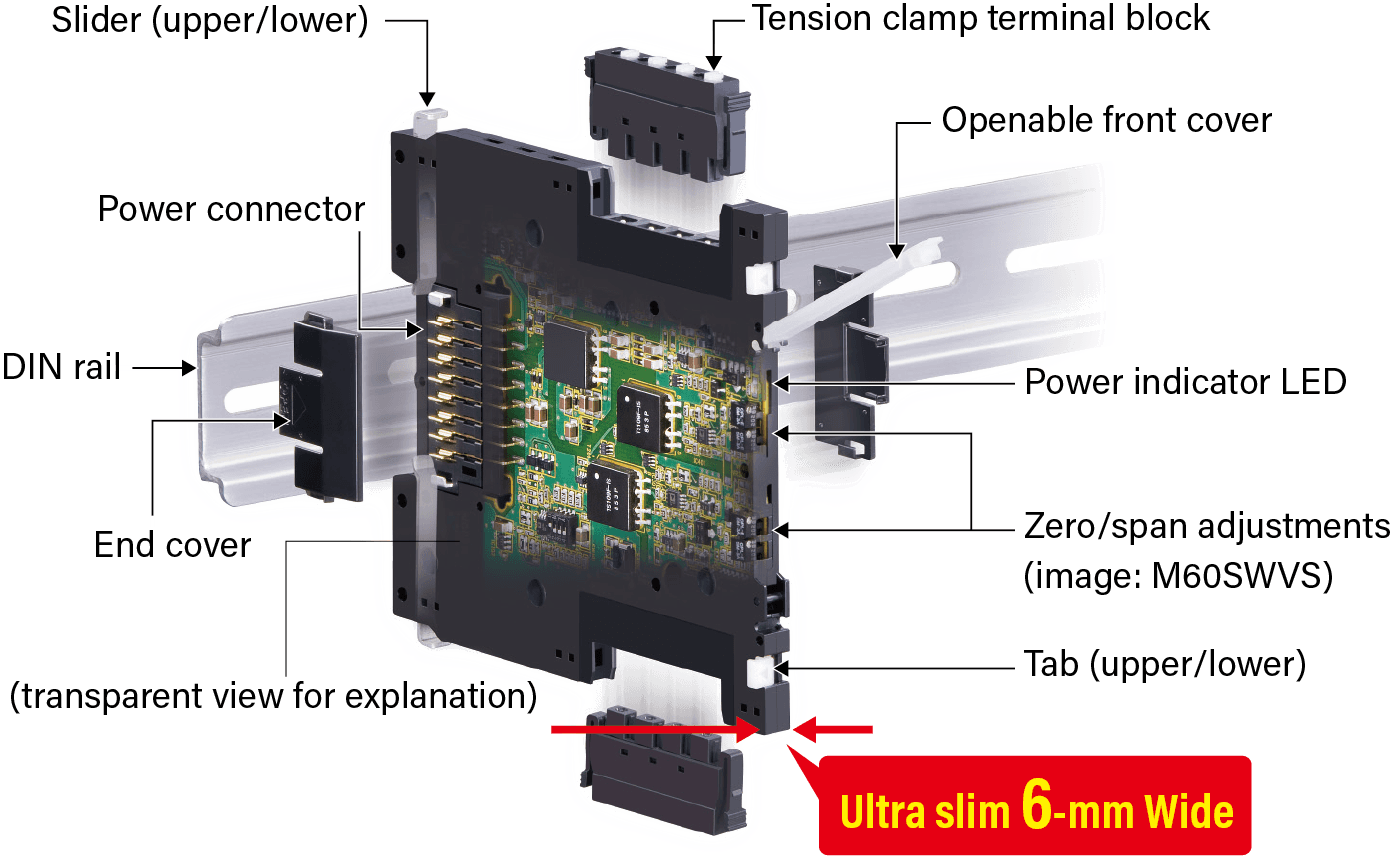

  • Component identification
    Component identification

    • The photo shows M60SWVS.

  • Tension clamp terminal block for streamlined wiring work

    The M60S Series uses a tension clamp terminal block. With this structure, the wires remain connected even when the terminal block is removed, which is convenient for inspections or changing specifications. The strong plate springs ensure secure wire connections, allowing direct insertion and removal of wires without the need for ring terminals or other cumbersome wiring tools, streamlining wiring work.

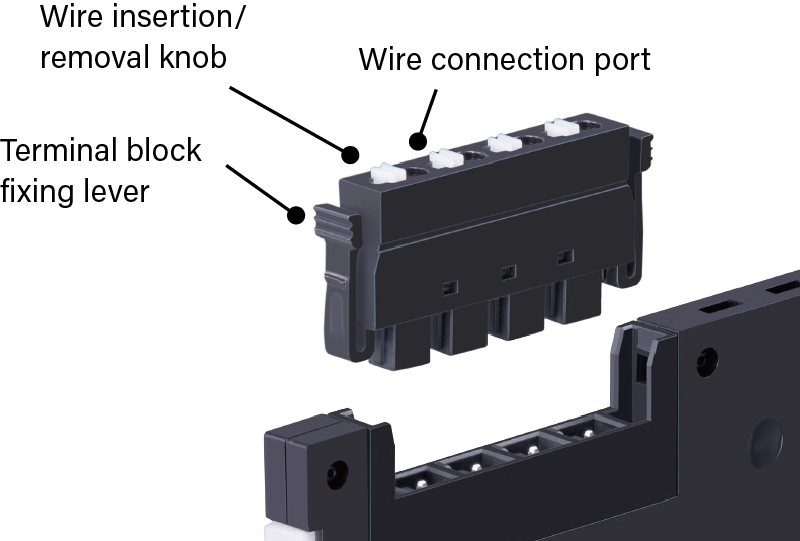

    Tension clamp terminal block structure
    Tension clamp terminal block structure

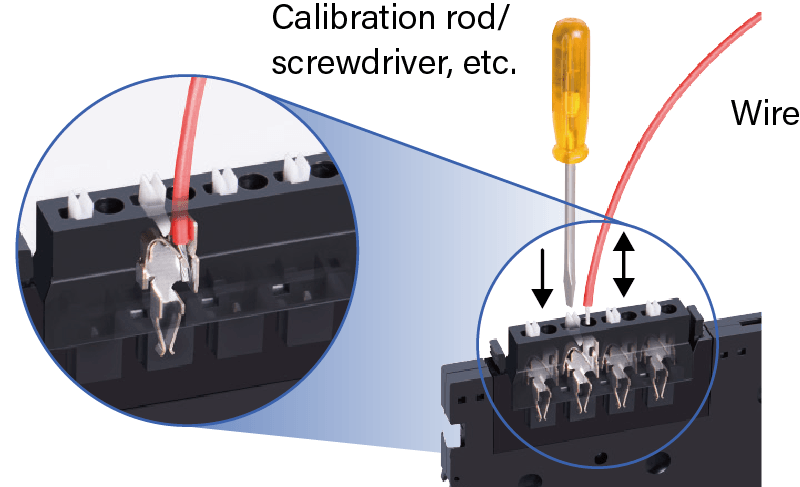

    Wire insertion and removal

    Wires can be inserted or removed by using a calibration rod or flat-head screwdriver to push down the white wire insertion/removal knobs. Even wires with hard tips, such as ferrules, can be inserted directly.

    Wire insertion and removal

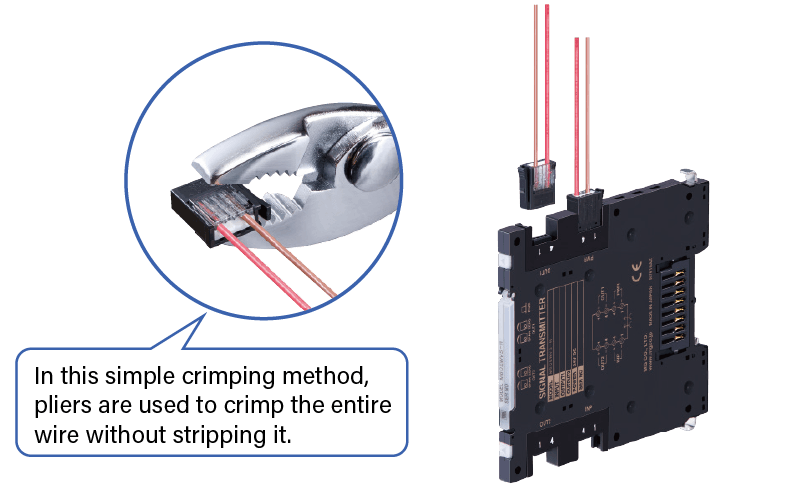

  • Introducing the M60E Series of e-CON connector types!

    There is no need to strip wires, so connection work is significantly reduced. Also, wires can be easily disconnected and reconnected when installing or removing devices.

    e-CON connector type structure
    e-CON connector type structure

  • Centralized power supply via power bus connector and space-saving design without an installation base

    Although an installation base is normally required to collectively supply power to multiple signal conditioners, with the M60 Series the signal conditioners are directly connected by the power bus connector, eliminating the need for an installation base. In this setup, power only needs to be connected to a single module which then automatically distributes it to the other connected signal conditioners.

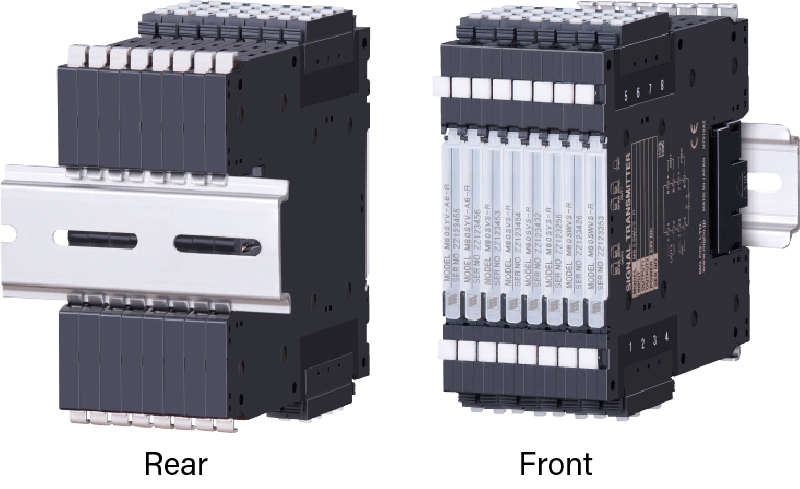

    High-density mounting on a DIL rail
    High-density mounting on a DIL rail

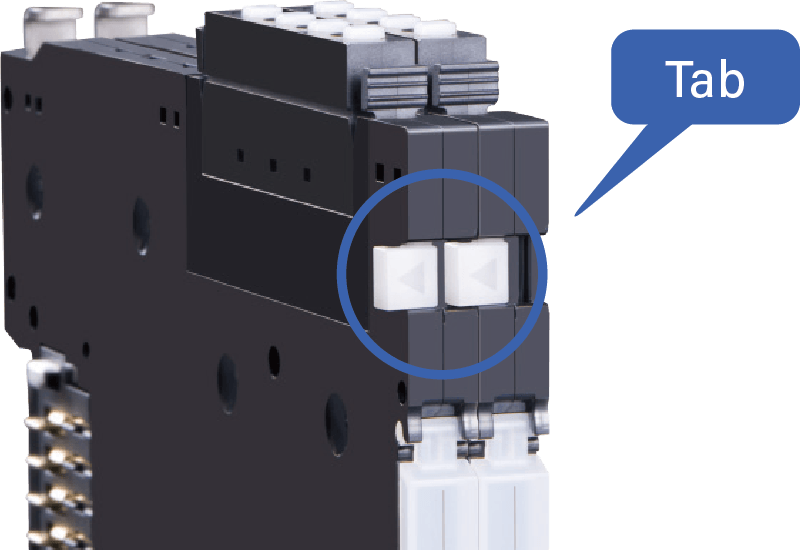

    Tabs that prevent bulging on the left and right sides of the front

    The top and bottom hooks on the front connect to the signal conditioner on the left.

    Tabs that prevent bulging on the left and right sides of the front

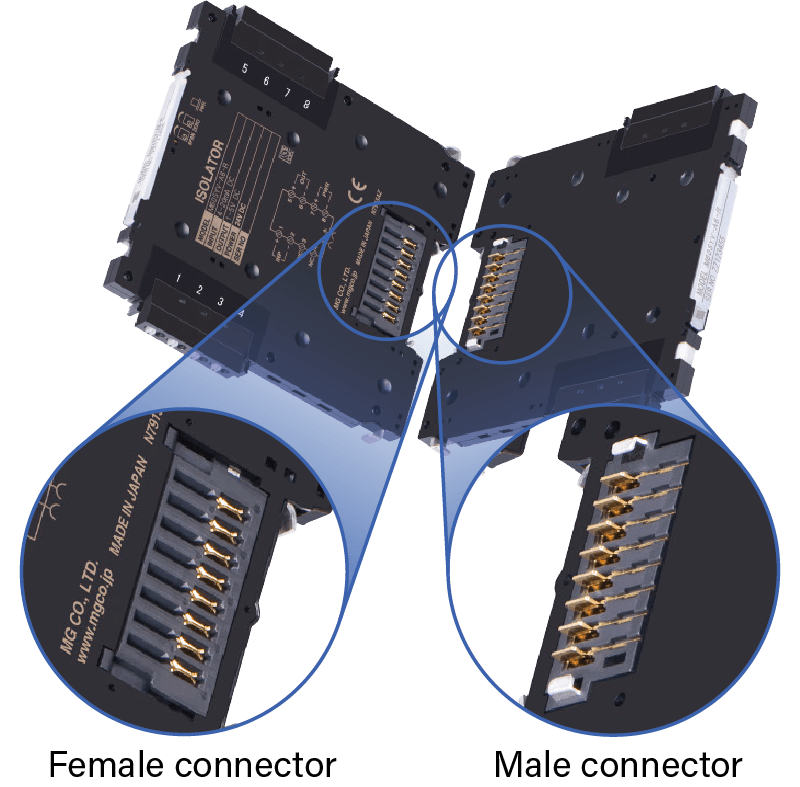

    Power bus connector that collectively supplies power without a backplane base

    The hooks on the male connector slide into the grooves of the female connector to ensure a secure connection.

    Power bus connector that collectively supplies power without a backplane base
