PC Recorder R7K4GUS Series

back

Model: R7K4GUS-G16D4

Paperless Recorder on the PC

USB Type-C bus powered: no external power supply needed
Event-triggered recording
Enhanced screens: Overview, Event View and Report File Display

Products Line up
Product Catalog

No External Power Supply Needed!

Paperless Recorder that is as easy to use as a digital multimeter

No External Power Supply Needed!

Paperless Recorder that is as easy to use as a digital multimeter

What You Need to Start Data Recording

Operating system: Windows 11
Browser: Chrome, Edge, Firefox
Language: English / Japanese

Application Examples

Type testing (e.g. thermostatic chamber)
Equipment failure analysis
Laboratory testing on moving vehicles

Enhanced Screens Beside the Trend Graph

The operability of PC Recorder follows that of the existing products of Web Data Logger and Tablet Recorder which have already been used and familiar to many users.

GRAPH

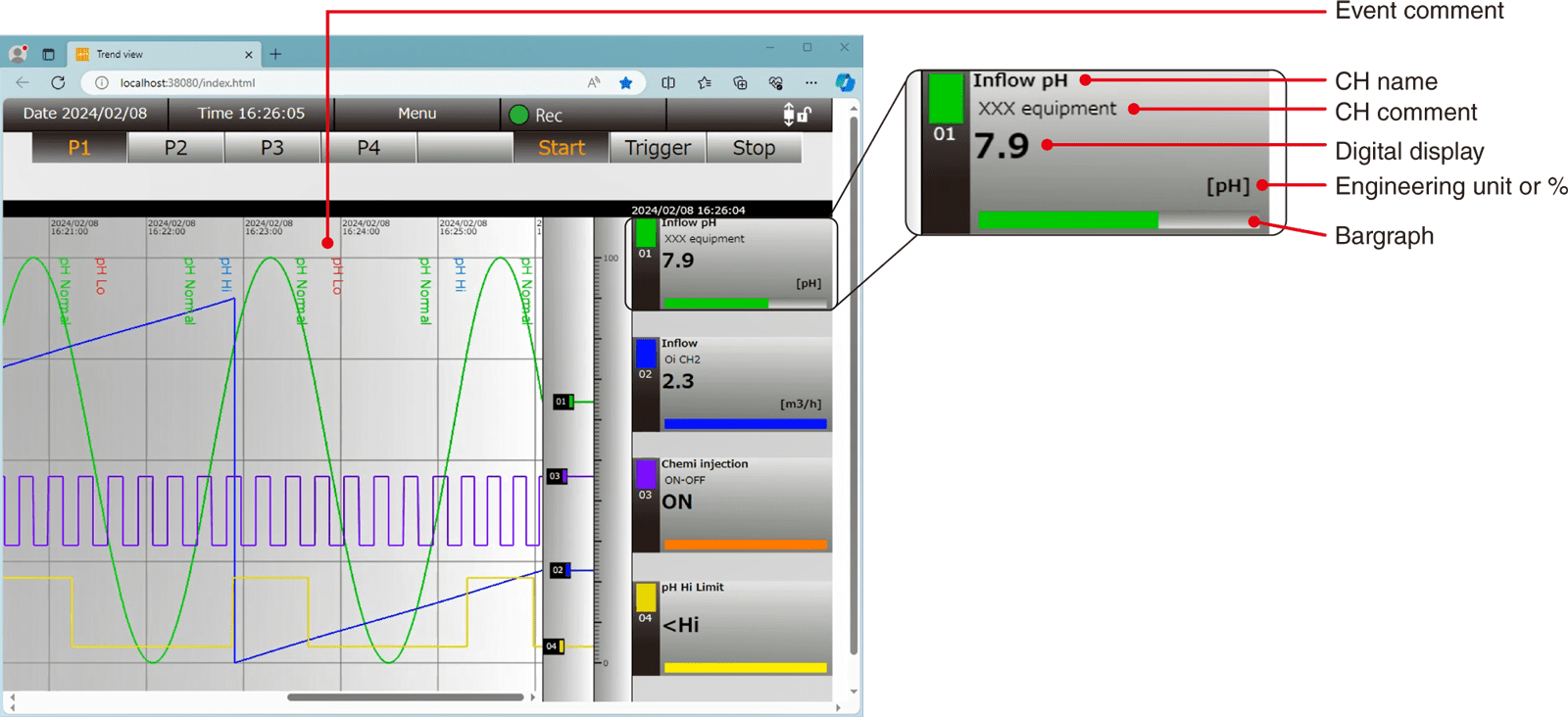

Trend View
There are four trend graph pages, each of which contains 4 pens (16 pens in total).
Each pen is assigned to any channel of all I/Os (Ai / Di / Oi / Do).
Zone name, zone color, event comment, alarm output, delay timer, trigger recording and reset function value, can be specified to each analog input channel (Ai) and operation input channel (Oi).

Trend Display Functions

Number of pens	16 (4 pens per page)
I/O channels assigned to pens	Ai, Di, Oi, Do (all channels)
Graph scale	0% and 100% positions specified by engineering unit values
Data format	.TRD file format
Data contents	Trend, event history, comment history
Data size	Max. 50000 samples per file x 16 pens
Auto-start	Recording can start automatically when the program is started. Specify either Stop / Normal / Trigger.
Storing interval	100, 500 ms, 1, 2, 5, 10 s, 1, 2, 5, 10, 30 min, 1 hour

Trigger Recording

User can preset specific trigger conditions to certain analog/digital/operation channels, and choose how many data samples before and after an event condition is triggered, must be recorded.
It is an effective way to save only the necessary data for failure monitoring and analysis.

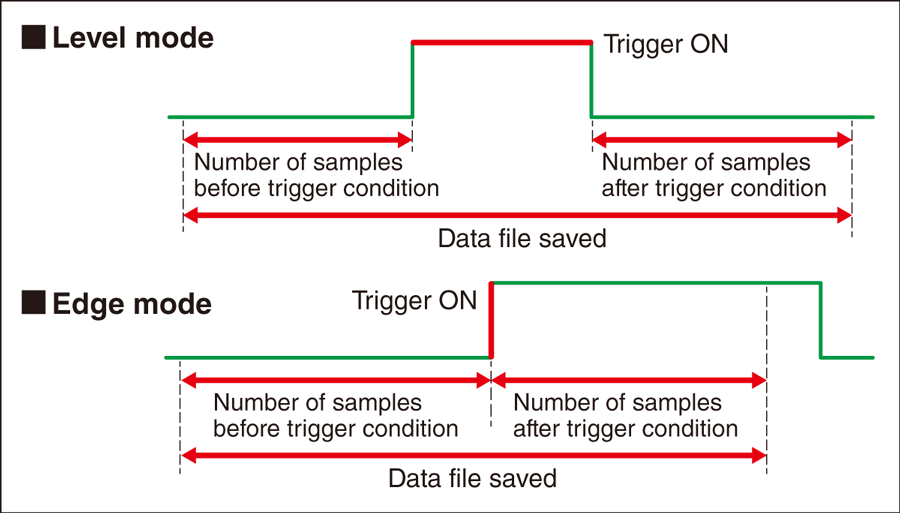

Two operation modes are available: “Level” mode and “Edge” mode.

ALL CHANNELS

Overview

All channels are updated and displayed on the overview screen. For analog input channels, engineering unit values and percent values are toggled by clicking over the display.
LATEST EVENTS

Event View

The latest 500 events, triggers, alarms are listed among the analog and operation input signal channels.
REPORT FORMS

Report File

Report file data is generated every hour on the hour (1H data). Sampling method can be selected from momentary / average / maximum / minimum values.
