Temperature Control Module (R3 Series)
model: R3-TC2

Functions & Features
	Two PID controllers
	Universal input x 2 points, control output x 4 points, discrete input x 2 points, clamp-on current sensor input x 2 points

	2 universal inputs configurable to T/C, RTD, DC current or voltage independently
	Clamp-on current sensor input enables to detect heater wire break or over current
	Auto tuning function
	Configurable with PC configurator (model: R3CON)

The model R3-TC2 is a new addition to the R3 Series Remote I/O.

This temperature control module is available to mix with existing I/O modules on the same node, which enables the Modbus interface module R3-NM3 to handle data of control loop and monitoring loop. It can build a monitoring control system easier than installing remote I/O and stand-alone temperature controller individually.

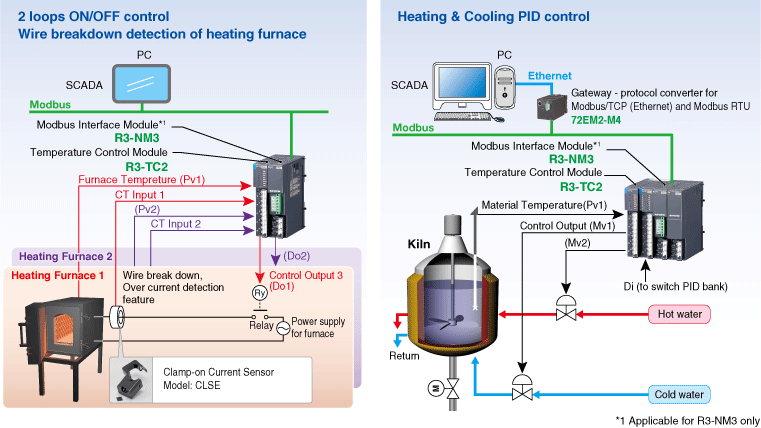

APPLICATION EXAMPLE
