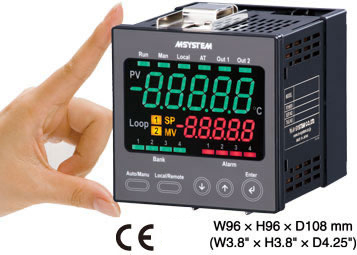

Temperature Controller TC10 Series
model: TC10EM

model: TC10EM
Functions & Features
Two PID controllers
Universal input x 2 points, control output x 4 points,
discrete input x 2 points, clamp-on current sensor input x 2 points

2 universal inputs configurable to T/C, RTD, DC current or voltage independently

Clamp-on current sensor input enables to detect heater wire break or over current

Auto tuning function
Display
PV display: 5 digits 7-segment green LED, 19.5 mm (.77”) height

  Data Sheet Download (PDF)

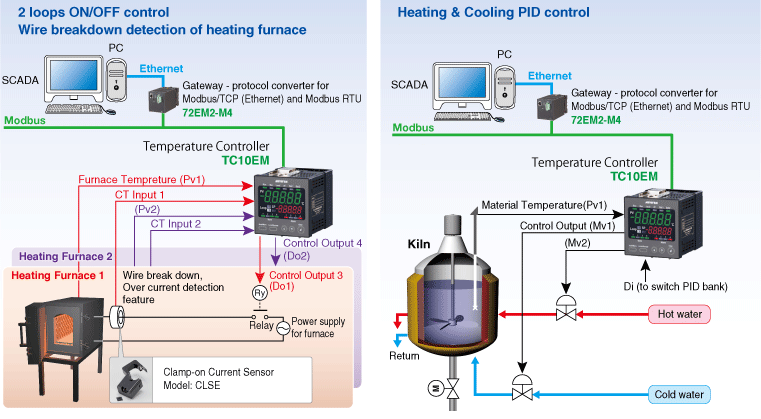

APPLICATION EXAMPLE
APPLICATION EXAMPLE
