Open Network Capable Tower Light

back

IT40SR, IT50SR, IT60SR Series

Direct Modbus/TCP and CC-Link control saves wiring and cost
Energy saving, maintenance free LED lights
Bright and even illumination
Number and color of LED modules can be freely combined
Rugged IP 65^* construction is ideal for harsh industrial applications

Depending on the model.

Products Line up
Product Catalog

*. IP 65, Vertical mounting only (bottom connectors excluded)

The IT40SR, IT50SR and IT60SR Series are preassembled tower lights of 40-mm, 50-mm and 60-mm diameter LED modules. They feature direct control by PLC via Ethernet Modbus/TCP (Model: ITxxSRE) or CC-Link (Model: ITxxSRC).
In combination with remote I/O modules, local discrete signals can trigger the light modules connected with single network cables via a remote PLC, saving a great part of parallel wiring from sensor devices to the PLC's input cards, and from the PLC's output cards to the lights. Contact input type (ITxxSA1) without network connection is also available for local control.

	small size, 40 mm dia., 1 - 5 layers	small size, 50 mm dia., 1 - 5 layers	small size, 60 mm dia., 1 - 5 layers
Open Network Capable Tower Light
Modbus/TCP	IT40SRE	IT50SRE	IT60SRE
CC-Link	IT40SRC	IT50SRC	IT60SRC

Application Examples

Component Identification

Triple-Reflection System: Our original triple-reflection design prevents the LED lights from wasteful diffusion and ensures effective and even lighting in obliquely downward directions.
Setting Panel & Status Indicator LED: DIP switches on the side are used to select blinking frequency (2 Hz or 10 Hz), alert sound (buzz) ON/OFF frequency, loudness level and to specify either the lights should be turned off or maintained in case of communication failure.
Power and network status indicator LEDs are also provided on the side.
Network Connection: RJ-45 connector for Ethernet or a separable tension-clamp terminal block for CC-Link is provided at the bottom of the tower for easy wiring.
Five-layer, Five-color LED Modules in Free Combination: Number of LED module layers can be specified from one to five when ordering. Five colors (red, amber, green, blue and white) can be freely combined for each module.

Accessories (option) unit: mm (inch)

Mounting Pole	Model: ITPL Circular Pedestal Mounting Data Sheet
Mounting Pole	Model: ITPL Bracket Mounting Data Sheet
LAN Cable	Model: ITCA Data Sheet	Used for the extension of wired LAN port (RJ-45) when using our Tower Light Series in combination with the mounting pole (Model: ITPL)

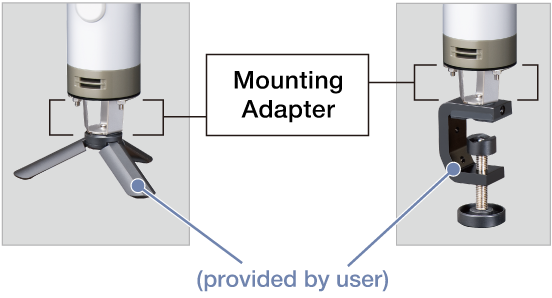

Mounting Adapter	Model: ITAD Type1 Data Sheet	This is an optional product which will allow a standard 1/4 inch screw to be used for mounting. With this adapter, you can mount our Tower Light on your existing tripod and/or screw clamp.
