Request InfoField-mounted 2-wire Signal Conditioners
B6-UNIT Series

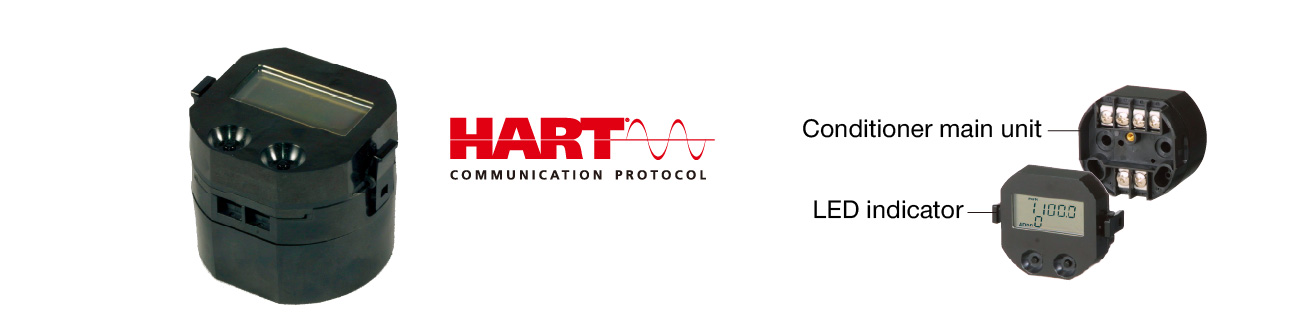

Models B6U and B6U-B accept a wide variety of inputs including thermocouples and RTDs as well as mV, resistance and potentiometer sensor types.
- Plug-in two-line LCD display
- HART programmable
- AMS software version 6.0 or higher
- Stainless steel enclosure optional
- ATEX Zone 0 approvals
- FM Class I, II, III, Division 1 approvals
Depending on the model.
Universal temperature input, HART, explosion-proof
B6U-B
- DC mV, V & mA, T/C, RTD, Pot and resistance input
- 12-42 V DC powered (max. 28 V approved)
- NEMA 4X, IP66/IP67 enclosure
- ATEX Zone 0 approval
- FM Class I, II, III, Div. 1 & Class I, II, Div. 2 approval
*1
*1. KOSHA flameproof approval (Occupational Safety and Health Act): Only available for Model: B6U-B-41

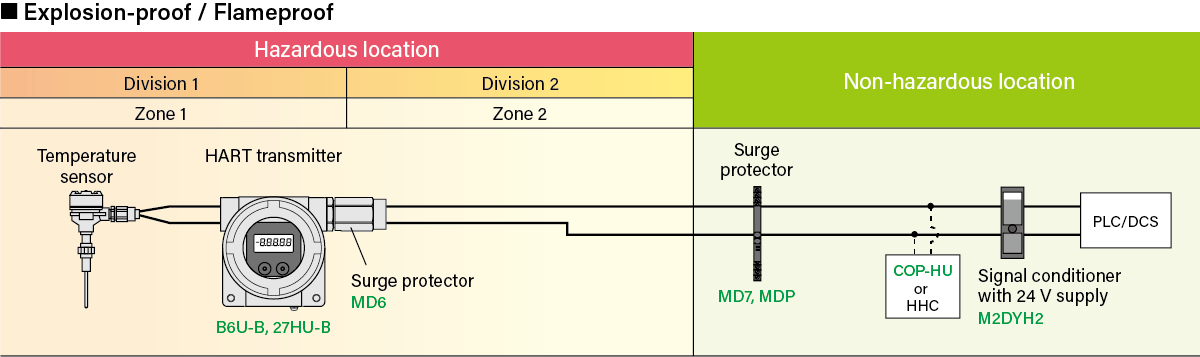

Configuration example for B6U-B and 27-UNIT in hazardous locations
Please confirm specifications before actually using the product.

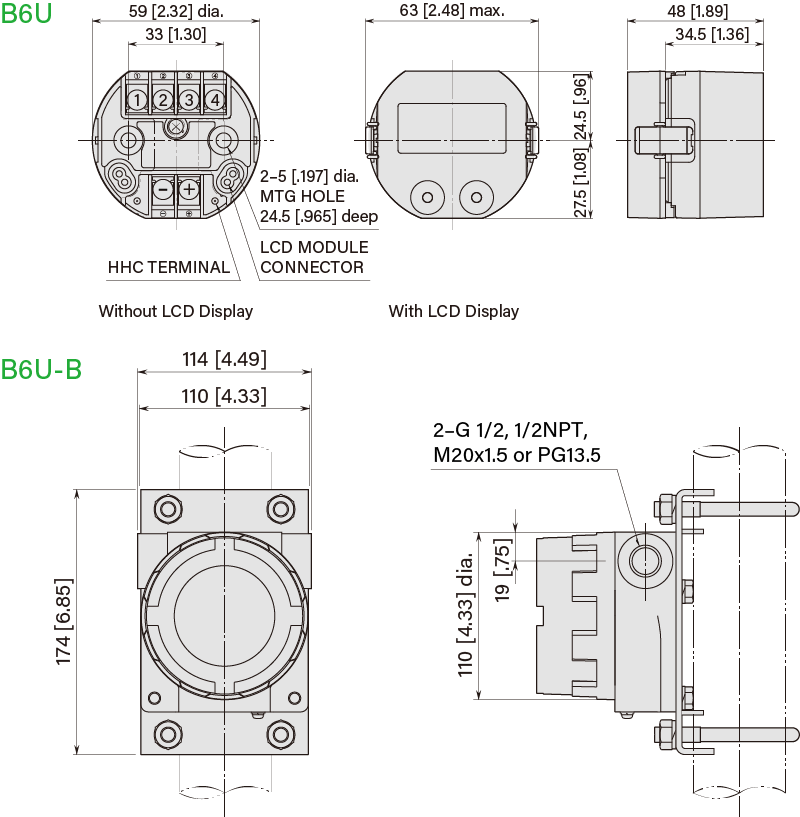

EXTERNAL DIMENSIONS unit: mm [inch]
![EXTERNAL DIMENSIONS unit: mm [inch]](images/2wire03/b6u_gaikei.png)
Dimensions may be slightly different depending upon models.

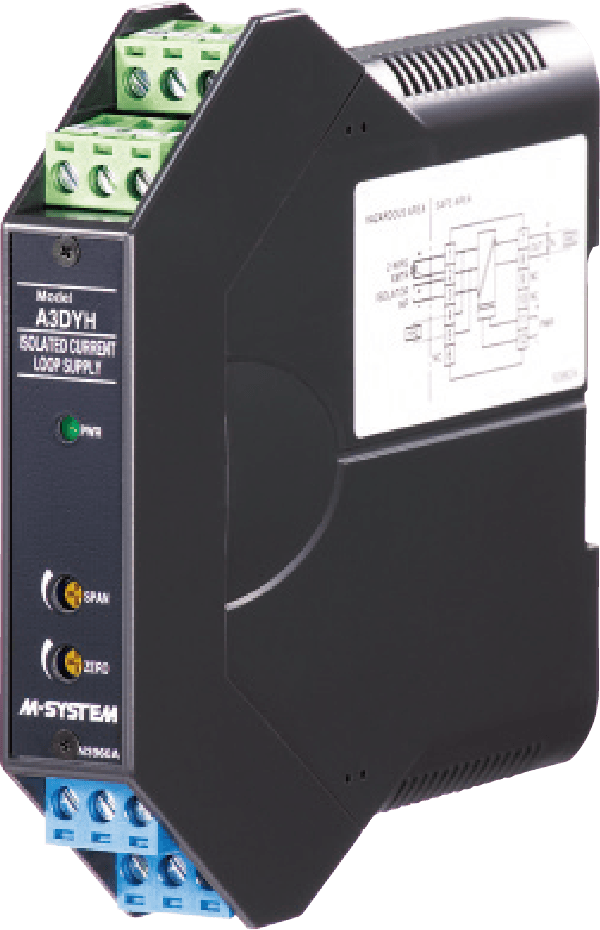

Intrinsically Safe Galvanic Isolator
-
Intrinsically Safe Galvanic Isolators
A3-UNIT Series· Isolated intrinsically safe associated apparatus: no need of grounding
· Isolates and relays HART signals bidirectionally
- CURRENT LOOP SUPPLY (HART communication)
- A3DYH
