DL8 시리즈 Features
- Direct Access (1 : 1)
-
- I/O signal status in the DL8 web server can be directly monitored and manipulated with an internet browser.
- I/O signal status in the DL8 web server can be directly monitored and manipulated with an internet browser.
- Cloud Access (N : N)
-

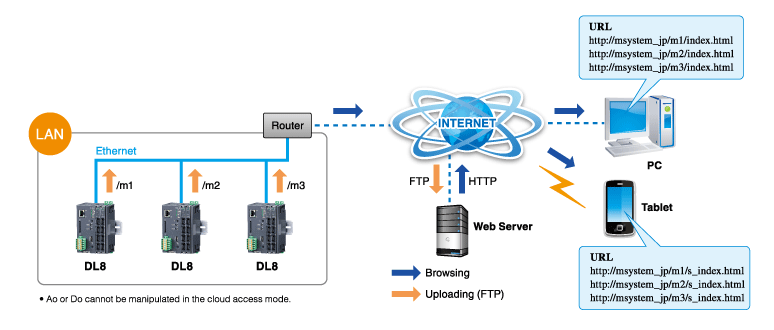

- The DL8 operating as FTP client uploads web use files to a cloud server.
- Multiple users can access it at once without extra load at the DL8.
- Multiple DL8 data can be managed by directories in the server.
-
- I/Os located within 500-meter distance can be collected and accessed via single DL8 module.

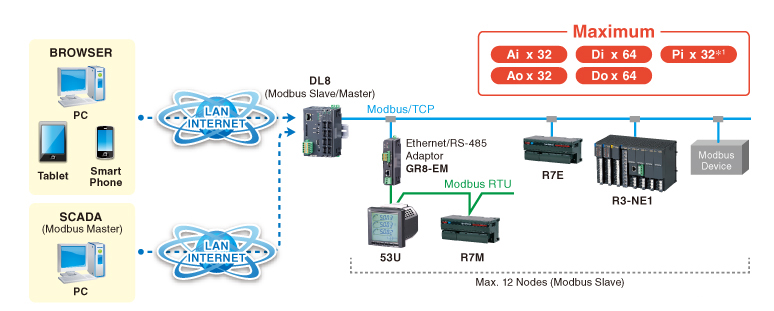

- The remote I/O model R7E, R6-NE1/2, R3-NE1 and other general Modbus/TCP slaves can be connected.
- Local I/O data collected at the DL8 can be polled by a SCADA system via internet or intranet (LAN).
*1. Pi is for pulse accumulation and 32-bit signed integer data.
| DI : DISCRETE INPUT | |
|---|---|
| Data type | Status : ON/OFF Counter : ON/OFF Time duration or number of status change is counted |
| Reset input | Di CH |
| PI : PULSE INPUT (or 32-bit data) | |
| Data type | Accumulation : Totalizing count deviation from reset status Engineering unit value : Direct reading of 32-bit signed integer (used for energy data) Floating point : Single precision floating type (display range ±10 000 000 000.000) |
| Engineering unit | User defined (16 characters) |
| Reset input | Di CH |
| GENERAL I/O SETTING | |
|---|---|
| CH assignment | Built-in module : Module address + Ch. No. Modbus device : Node + Register type + Register address |
| CH designation | User defined channel ID (32 characters) + tag name / comment (64 characters) |
| AI : ANALOG INPUT (or 16-bit data) | |
| Data type | % : [% x 100] format (-2000 to 12000) for voltage / current input Int : Signed 16-bit integer format (-32768 to 32767) for temperature input |
| Filter | None / Moving Average / Delay Buffer |
| Engineering unit | User defined (16 characters) |
-

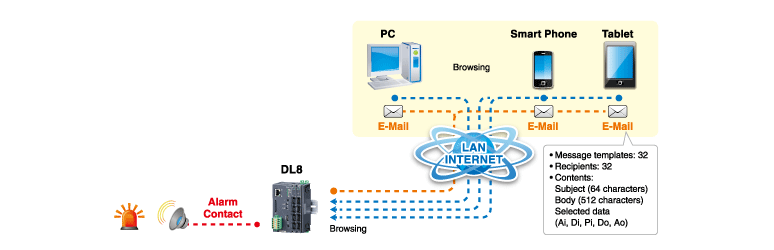

- Events can be reported by text message.
- Selected channel data can be attached.
- Regular reporting and test mailing are also possible.
- SMTP over SSL encryption
- Events can trigger an alarm contact at a discrete output module.
- Specified Do can be turned on after a mail delivery
-

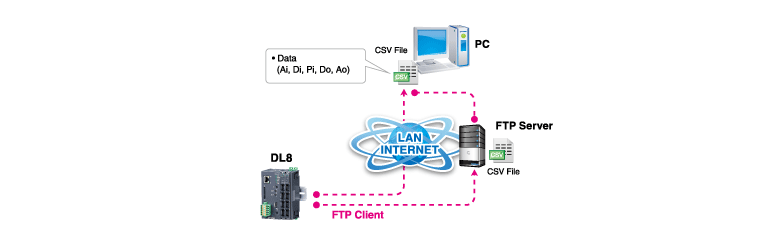

- Specified channel data can be converted into user defined CSV files and uploaded to an FTP server.
- Data transfer in the preset time intervals
| Data | 32 channels selected among Ai, Di, Di count, Pi, Do, Ao |
| Storing interval & FTP transfer cycle | 1 / 2 sec : Transferred every 1 min / 10 min / 1 hour (selectable) 5 / 10 / 30 sec : Transferred every 10 min / 1 hour (selectable) 1 / 2 / 5 / 10 / 30 min : Transferred every day Dateline can be specified. |
-
- Data is sampled and stored in CSV format in an SD card.

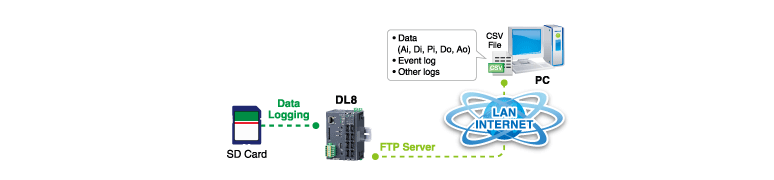

- The host supervising system (PC) can upload CSV data files from the DL8 operating as FTP server.
| Character set | Shift JIS |
| Data | 32 channels selected among Ai, Di, Di count, Pi, Do, Ao |
| Storing interval (synchronized with RTC) | 1 / 2 / 5 / 10 / 20 / 30 sec 1 / 2 / 5 / 10 / 15 *2/ 20 / 30 min (at 0 second) 0 to 23 hours (multiple selection with time delay) Dateline can be specified at every hour Effective days of the week selectable |
| Analog logging mode | Momentary value, average, peak or valley |
| Automatic file deletion | Firmware V.1.4.x or later |
| Logging time duration | Approx. 180 days for 32 points with 1-sec. intervals (counting only the logging data files) |
| FTP client | Explorer or Browser (Internet Explorer 10, 11, Firefox 13.0.1 or later) |
*2. V.1.5.0 or later
-

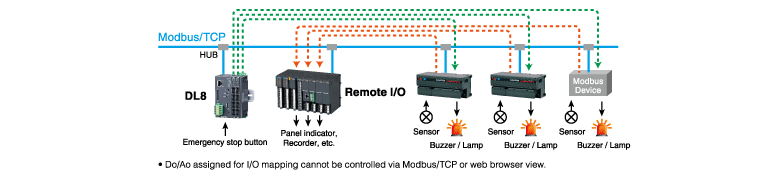

- Peer-to-peer connection between Modbus/TCP slaves

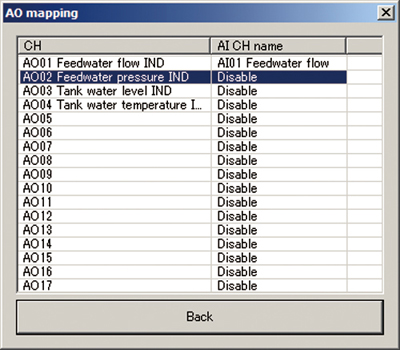

- Di/Do and Ai/Ao signal marshaling is easily set up on the DL8
- Remote multiplex transmission on IP network
EASY SETUP
Simply choose input and output on the list.
-
- DL8 allows I/O expansion by connecting with the SLMP-compatible CPU unit of Mitsubishi programmable-controller MELSEC; and collectively handles data from measuring points in multiple locations.
- Type E is added with 'Expanded Communication' functions of SLMP client, HTTPS, and FTPS protocols.
