Request InfoHigh-speed Open Field Network
HLS is a remote I/O control network of one master with multiple slaves. Master and slave devices automatically communicate via HLS thanks to the embedded protocol, and with the maximum of 63 slaves, 2016-bit I/O can be controlled within 1 millisecond. Communication is always performed in certain timing and never fails. The stable control is also ensured by an automatic waveform correction function that restores distorted waveforms damaged by noise and long distance transmission.
| Network type | High-speed response master/slave network on RS485 |
|---|---|
| Network topology | Multi-drop, star, tree |
| Cable | Twisted-pair cable |
| Transfer rate | 12 Mbps (full-duplex and half-duplex) |
| Response time | 30.33 to 955 microseconds |
| Max. connection nodes | 63 |
| Data size | 16 bits for input and 16 bits for output per node |
| Network features | High-speed response of 30.33 microseconds (max). RS485 network offers a great advantage in reliability and cost performance. Suitable for digital and analog I/O control of lower layer network. |

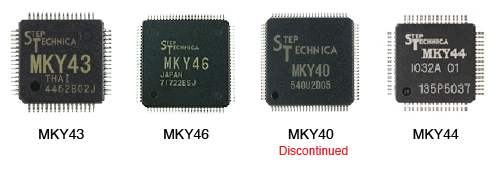

CUnet is a distributed control network with multiple masters/slaves. The network can simultaneously execute (1) 512-byte data sharing, (2) remote digital/analog I/O plus motor control, and (3) P2P (1 to 1) 256-byte data transfer. All terminals within the network execute without needing a CPU automatic data transfer in high speed, and share all memory data on a real-time basis. The CUnet remains independent from type and performance of the user CPU.
| Network type | Multi-master/-slave network on RS485 |
|---|---|
| Network topology | Multi-drop, star, tree |
| Cable | Twisted-pair cable |
| Transfer rate | 12 Mbps (half-duplex) |
| Response time | 102 to 2370 microseconds |
| Max. connection nodes | 64 |
| Data size | 8 bytes per node, 512 bytes in total |
| Network features | Remote control of digital I/O, analog I/O and motors. Data shared by all nodes on a real-time basis. RS485 network offers an excellent cost performance. |
R7F4DH / R7K4DH / R7G4HH / R7HL Series
- Remote I/O for HLS (High-speed Link System) by StepTechnica Co., Ltd.
- Wide variety of discrete signals (8-points, 16-points, 32-points) and analog signals.
- Four connection styles are selectable to fit with various sensors and devices.
