Digital Panel Meters 40 Series

· The photo shows the 40LV model.
· The 40LV, 40DR, or 40DT model does not have a scaling function.

1/8 DIN Size, Cost Effective Simple Function Panel Meter

  • 96 x 48 mm
  • Large .8" (20.3 mm) high red LED
  • 3 1/2 digit DC voltmeter/ammeter (40LV)
  • 4-digit process meter with scaling (40DV, 40DN, 40DPT, 40DCT)
  • 24 V DC powered
  • 100-120 V AC, 200-240 V AC powerd (40DV, 40DR, 40DT, 40DPT, 40DCT)
  • No external power source needed (40DN)
  • Hold function
CE
Number of Display Digits 4 Digits Number of Display Digits 3 1/2 digits Loop Powered AC DC Powered
Products Line up
Product Catalog

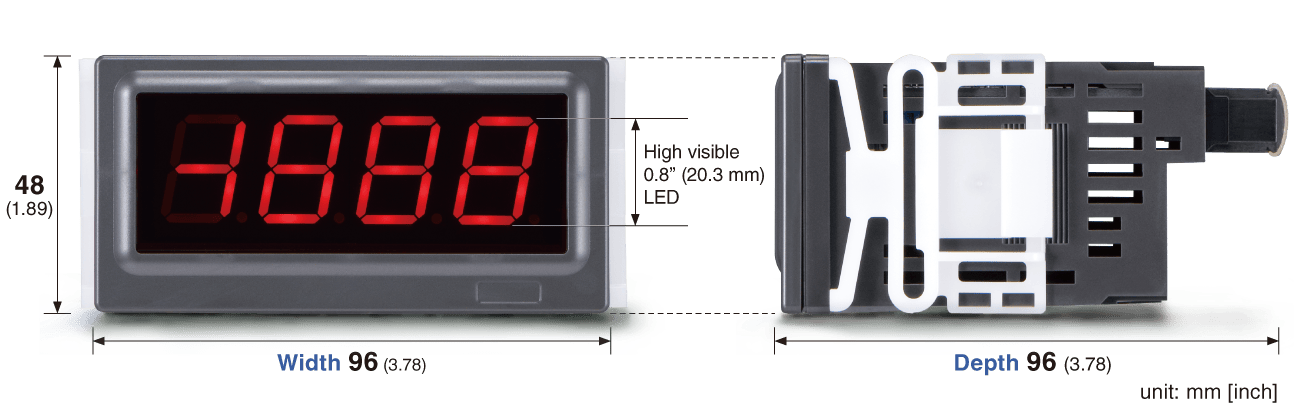

External View (Model: 40DV)
External View (Model: 40DV)
No. Component Functions
(1) Front panel Removed at configuration.
(2) Sticker label Engineering unit label position
(3) 4-digit display 4-digit LED display. Range: 0 to 9999 (not including decimal point)
(4) Polarity indicator Turns on when negative value is displayed
(5) Disp/↓button Used to move on to the display setting modes; or to shift through setting items in each setting mode.
(6) Scale/↑button Used to move on to the scaling setting modes; or to shift through setting items in each setting mode.
(7) Shift button Used to move on to the setting standby status and shift through display digits in each setting item.
(8) Up button Used to select setting value.
