TR30-G Tablet Recorder

TR30-G Tablet Recorder


  • Compact package
  • No need of dedicated application software other than a web browser
  • Flexible built-in I/O modules plus Modbus slave I/O

Model TR30-G is a web-based data acquisition system which enables users to view and access stored data via an internet browser. Freed from a dedicated display screen, accessibility and portability of the data is greatly enhanced. In addition, users can receive free benefit of ever-evolving state-of-the-art user interface and apps provided by tablet terminals: e.g. ultra-high resolution screen, intuitive touch panel operations, entering comments by dictation or hand-writing, capturing a screen shot and e-mailing, etc.


All you need is a web browser!
The TR30 unit generates the Web screens.

Trend view

Benefits of bright display and superb operability of a tablet are all yours. Trend screen can be monitored and controlled on any display terminal browser. Special software application is not needed. All data is stored in Tablet Recorder.

User-defined view

User-defined view with graphics can be built.

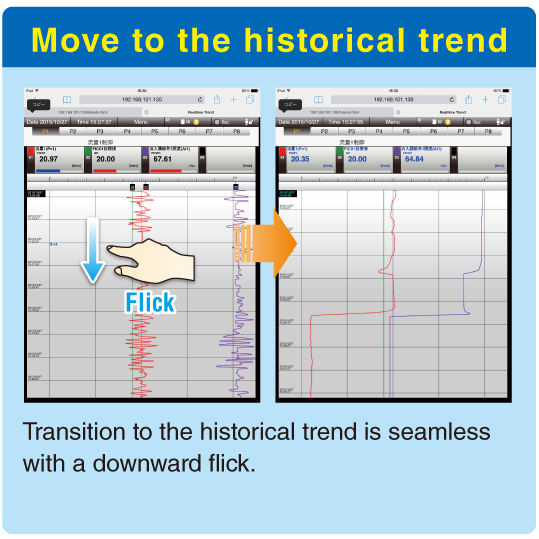

  • Move to the historical trend

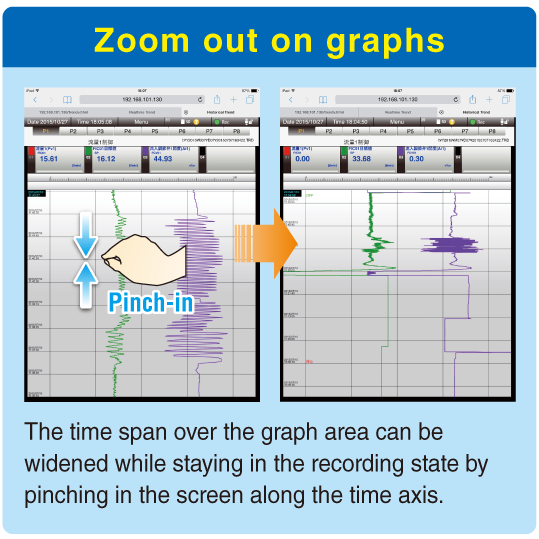

  • Zoom out on graphs

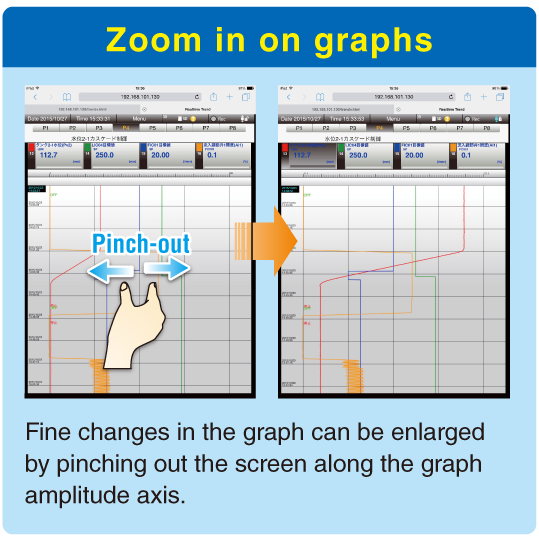

  • Zoom in on graphs

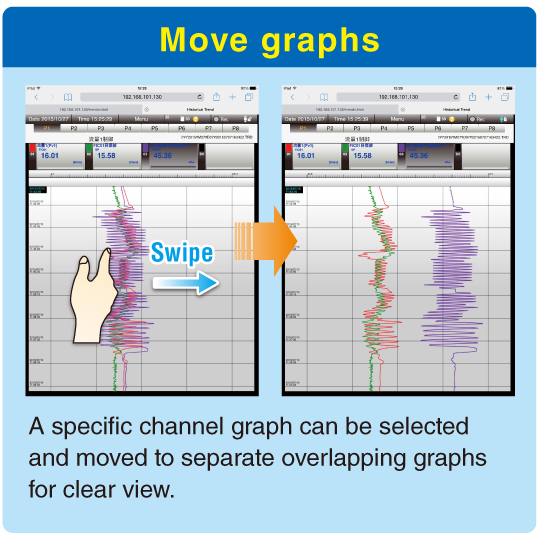

  • Move graphs

Users can receive direct benefits from the advanced functionality and superb operability of a tablet. The trend screen can be freely controlled by familiar motions like flicking and pinching in/out. More standard functions of the tablet are applicable such as screenshots taken and attached to e-mails, comment entry by voice command.
