HUB Module for Remote I/O
(JC Series)
The HUB Module extends total length of network cable and branch cable
- 3 or 7-port
HLS is the abbreviation for “Hi-speed Link System” of Step Technica Co., Ltd.

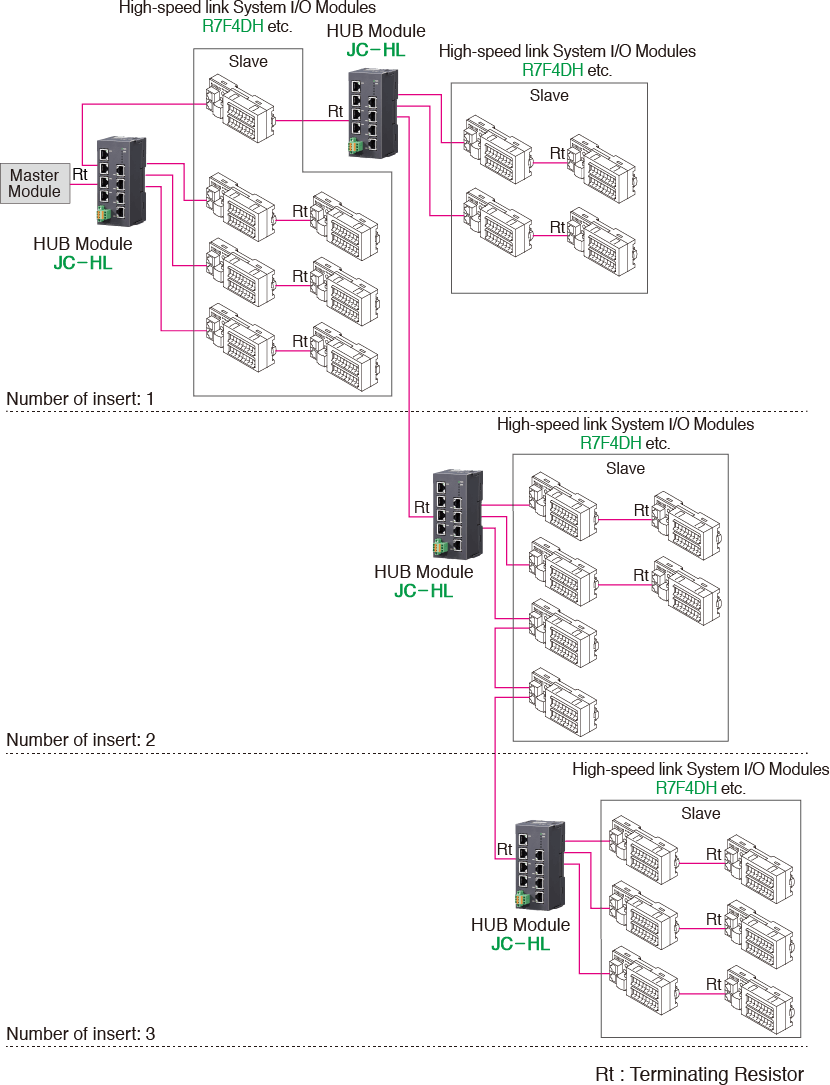

System Configuration Examples (HLS use)
*1. Max. transmission distance between master module and HUB module, HUB module and HUB module, HUB module and slave module is as follows. 100 m at 12 Mbps, 200 m at 6 Mbps and 300 m at 3 Mbps.
*2 Be sure to connect HLS0A/HLS0B to the host side.
*3 The terminating resistor must be enabled for the modules at both end of the communication line. The terminating resistor is incorporated in the feeder side port of the HUB module.
System Configuration Examples (CUnet use)
*1. Max. transmission distance between CUnet I/O module and HUB module, HUB module and HUB module is as follows. 100 m at 12 Mbps, 200 m at 6 Mbps and 300 m at 3 Mbps.
*2. Be sure to connect CU0A/CU0B to the host side.
*3. The terminating resistor must be enabled for the modules at both end of the communication line. The terminating resistor is incorporated in the feeder side port of the HUB module.
Dimensions unit: mm (inch)
