Dual/Quad Alarm
AS4 Series

back

Dual/Quad Alarm AS4 Series

This digital limit alarm is packed with functions and can be configured easily.

  • N.O. or N.C. quad alarm or SPDT dual alarm; latching or not
  • Output 120 V AC or 30 V DC @5 A; 240 V AC @2.5 A
  • 100-240 V AC or 24, 110 V DC powered
  • Local LED displays
CE UL

Depending on the model.

2/4pts. Alarm output Field-configurable Actual value display Plug-in AC / DC Powered
Products Line up
Product Catalog

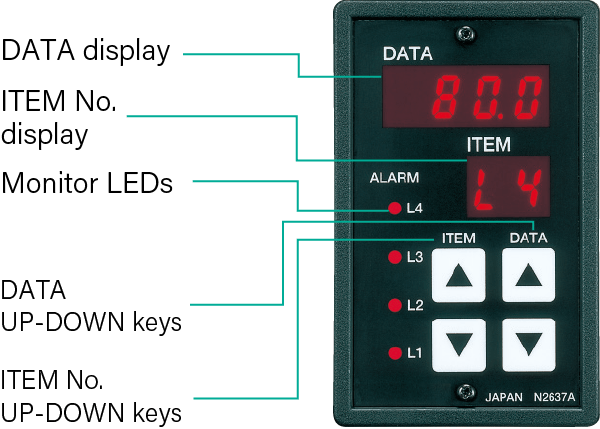

  • FRONT PANEL

    All settings for the AS4 Series can be configured from the front panel. The bright LEDs make it possible to accurately configure settings even in dimly lit junction boxes. Settings can also be locked using softkeys to ensure safety.

    FRONT PANEL

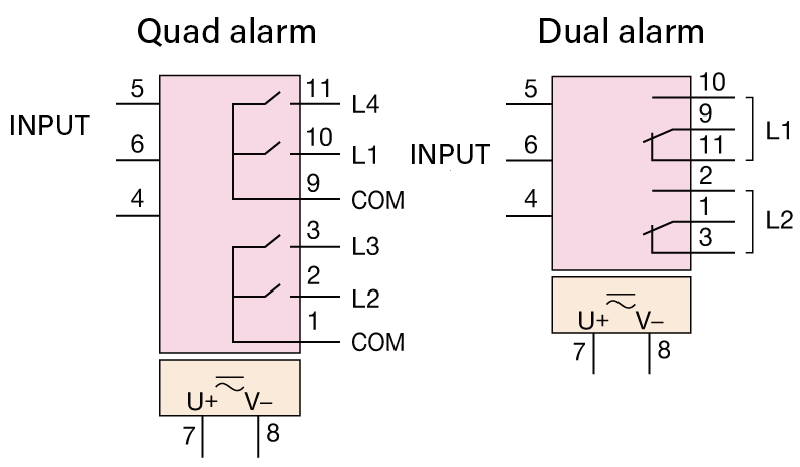

  • CONNECTION DIAGRAM
    CONNECTION DIAGRAM

    * Specifications may vary depending on the model. For details, see the datasheet.

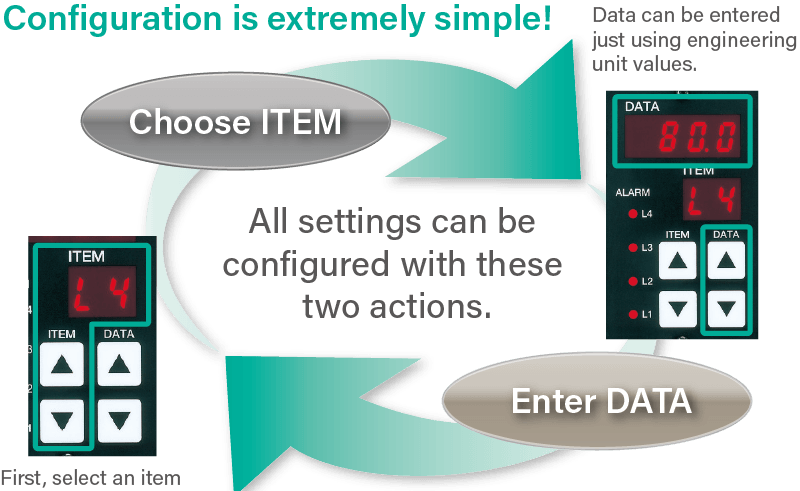

  • SIMPLE CONFIGURATION

    All AS4 Series settings can be configured with two actions: "Choose ITEM" and "Enter DATA". When an item number is displayed, the values associated with that number (such as set values or measured values) are also displayed. Values can be easily configured using the up/down keys. Input just using engineering unit values is possible.

    SIMPLE CONFIGURATION
