Dual/Quad Alarm with OEL display
M2EA Series

back

Dual/Quad Alarm with OEL display M2EA Series

Space-saving digital alarm equipped with a highly visible OEL display.

  • N.O. or N.C. quad alarm or SPDT dual alarm; latching or not
  • Output 100, 120 V AC or 30 V DC @4 A; 240 V AC @2 A
  • 100-240 V AC or 24, 110 V DC powered
  • Local OEL display shows process values
  • Intuitive, easy programming
  • PC configurator is also available
  • Alarm test
CE
Field-configurable Actual value display Plug-in three-port Isolation AC / DC Powered 2/4pts. Alarm output
Products Line up
Product Catalog

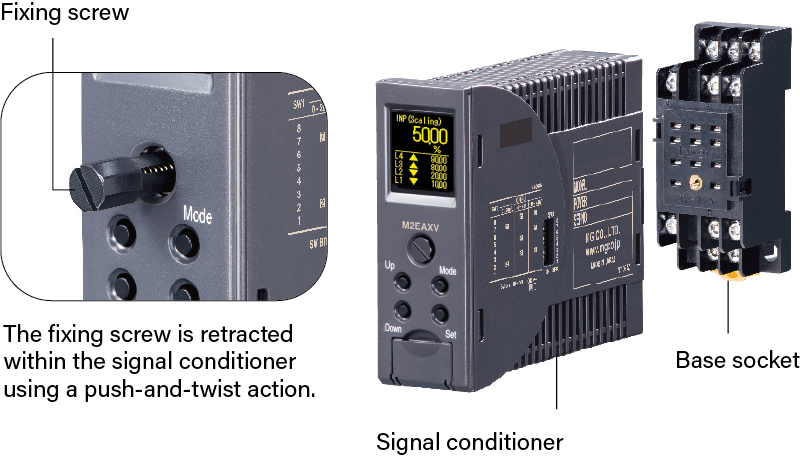

  • Compact, plug-in socket mounted
    Compact, plug-in socket mounted
  • Ideal for loop checks and maintenance when instant visibility is required.

    With its high brightness and contrast, the OEL display provides excellent visibility and is ideal for tasks where mistakes must be avoided, such as loop checks and signal checks during maintenance.
    The display can be configured to remain on continuously or to turn on when a button is touched.

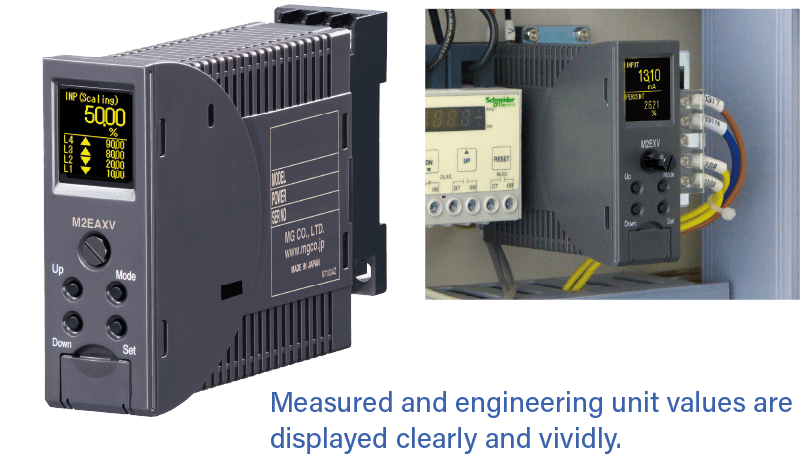

    Measured and engineering unit values are displayed clearly and vividly.
  • M2EA Series —
    Capable of configuration on the OEL display

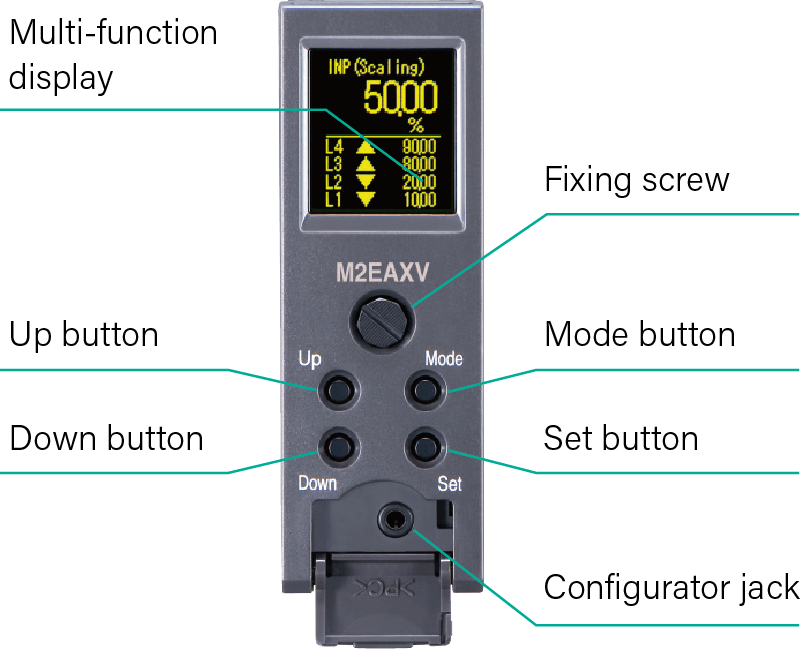

    Front Panel

    Front Panel

    Specifications can be changed using the Up/Down/Mode/Set buttons on the front panel. Values are displayed in engineering units, making configuration much easier.
    Settings can also be configured via PC*.

    *. An optional configurator connection cable (Model: COP-US) is required.
  • Settings can also be configured via PC.

    This feature is useful when configuring multiple settings with similar specifications or for saving settings.

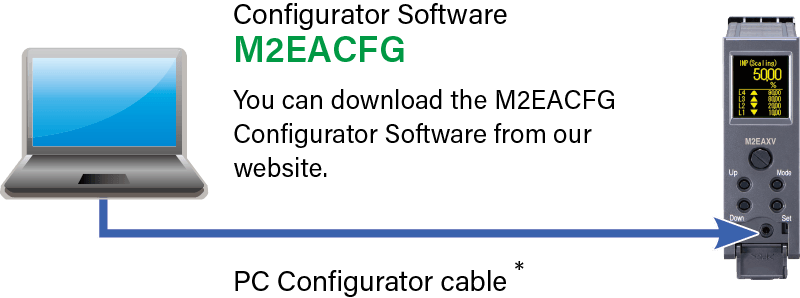

    Configurator Software M2EACFG *. An optional configurator connection cable (Model: COP-US) is required.
