Quad/Octad or Dual/Quad Alarm with OEL display
M1EA Series

back

Quad/Octad or Dual/Quad Alarm with OEL display M1EA Series

• The photo shows the base (Model: M1E-BS2) installed.
* 1. When the mounting lock slider pulled out.

Digital alarm equipped with a highly visible OEL display. 2-channel and 1-channel (multi-output) types are available.

  • N.O. or N.C. octad alarm or SPDT quad alarm; latching or not (M1EAXV-1, 1 channel)
  • N.O. or N.C. quad alarm or SPDT dual alarm; latching or not (M1EAXV-2, 2 channels)
  • Output 100, 120, 240 V AC @0.5 A; 30 V DC @1 A
  • 24 V DC powered
  • Local OEL display shows process values
  • Intuitive, easy programming
  • PC configurator is also available
  • Alarm test
CE
2/4pts. Alarm output 4/8pts. Alarm output Field-configurable Actual value display Plug-in DC Power supply
Products Line up
Product Catalog

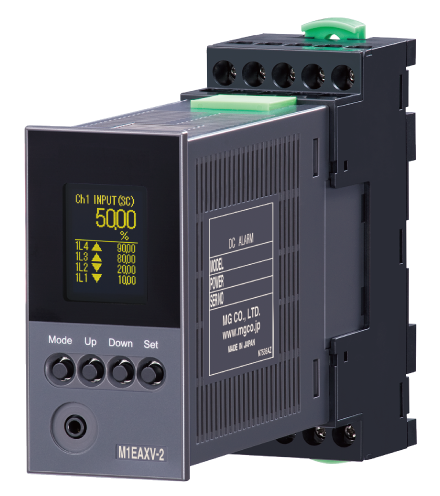

  • M1EA Series featuring a highly visible OEL display

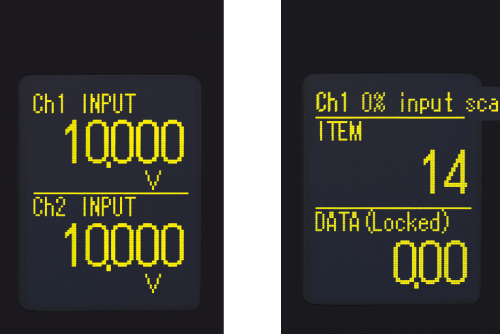

    M1EA Series featuring a highly visible OEL display OEL display
  • M1EA Series —
    Capable of configuration on the OEL display

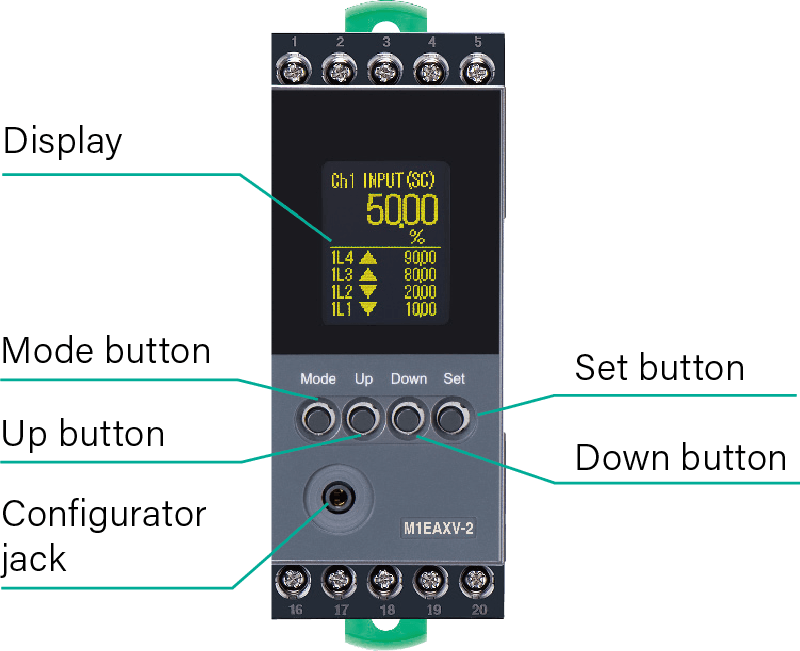

    Front Panel

    Front Panel

    Specifications can be changed using the Up/Down/Mode/Set buttons on the front panel. Values are displayed in engineering units, making configuration much easier.

  • SIMPLE CONFIGURATION
    SIMPLE CONFIGURATION

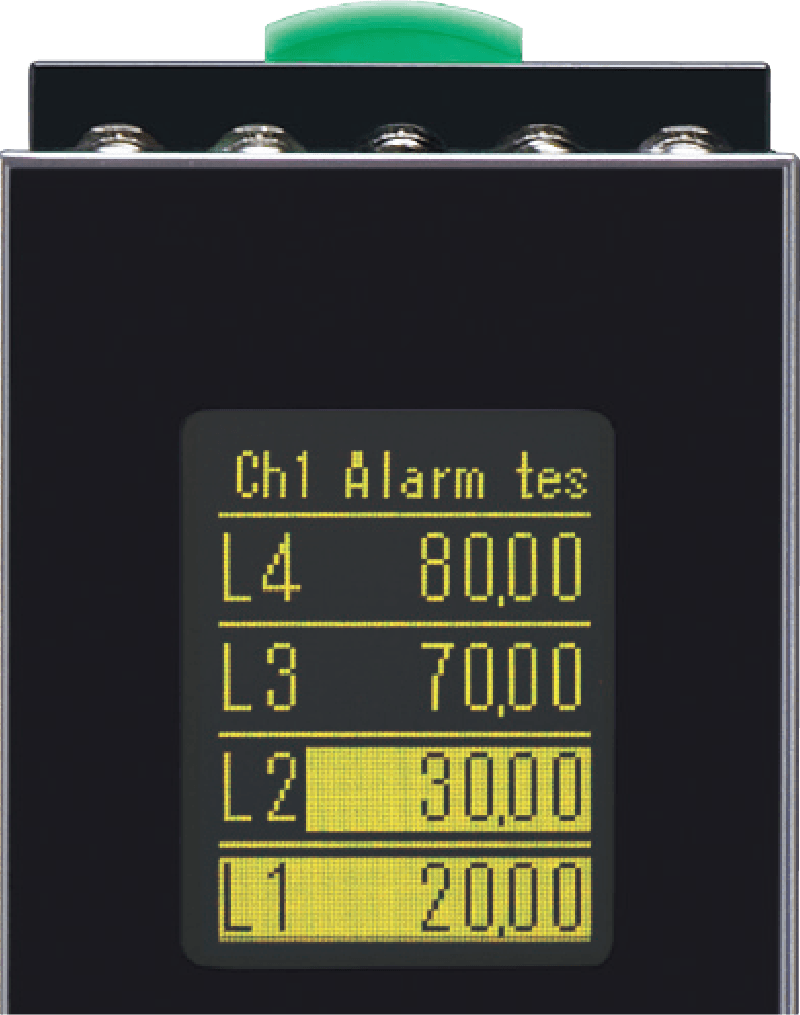

    Regardless of the input signal value, each alarm output can be individually switched on and off *.

    *. Changing the input signal during alarm test mode will not change the alarm output state.
  • Space-saving, plug-in base mounted

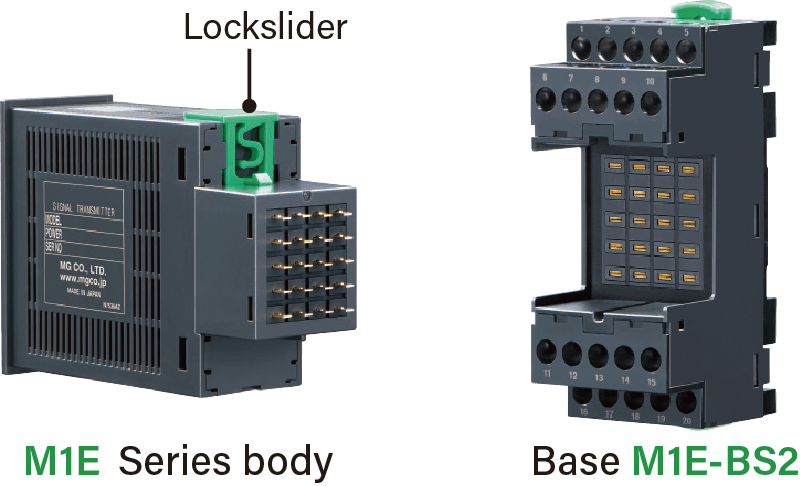

    With a plug-in structure that facilitates installation and removal, the body can be mounted simply by pressing it into the base. Removal can even be done one-handed and with a single touch by pressing the mounting lockslider located on top of the body.

    Space-saving, plug-in base mounted
  • Terminal block with screw-loss prevention

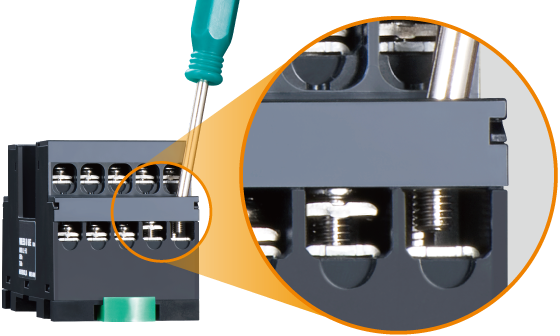

    The terminal block on the backplane base (M1E-BS) features a structure that stops screws from being separated from the unit even when loosened, preventing them from becoming lost.
    This structure helps to streamline wiring work. Crimp terminals are available as round or Y-type terminals.

    Terminal block with screw-loss prevention
  • Settings can also be configured via PC.

    This feature is useful when configuring multiple settings with similar specifications or for saving settings.

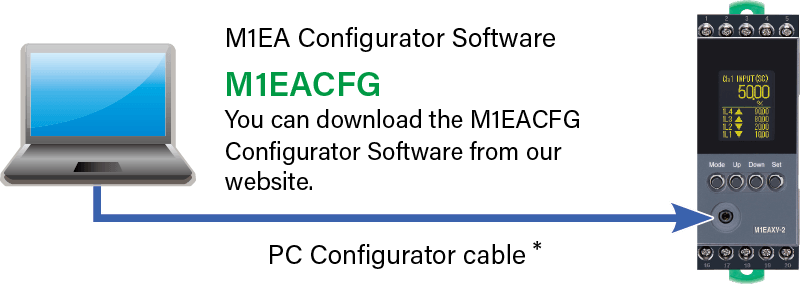

    Configurator Software M1EACFG
