Compact Plug-in Signal Splitters
Mini-MW Series

back

Compact Plug-in Signal Splitters Mini-MW Series

High-density mounting
At only 29.5 mm wide, these signal conditioners can be mounted with high density, despite being dual output. Placing the M2 Series and W2 Series side by side will cause them to appear mismatched. That’s why we added a single-output type to the W2 Series.

Mini-MW Series

The W2 Series has 4-port isolation (input to output 1 to output 2 to power). The lineup is comprehensive, with many models comply with international standards.

Mini-MW Series

The W2 Series Signal Splitters provide two isolated outputs of independent ranges.

  • W2 use a compact-size, plug-in socket base for quick installation or replacement of modules without disturbing wiring.
  • 2000 V AC isolation
  • Standard DIN rail or surface mounting
  • Base socket included with modules
  • Selectable 100-240 V AC/24 V DC power input
  • Fixed range or PC programmable models selectable
  • CE marking and UL/C-UL Class 1 Div 2 approval (selected models)
CE ULCA規格 UL

Depending on the model.

Plug-in Four-port isolation AC DC Powered
Products Line up
Product Catalog

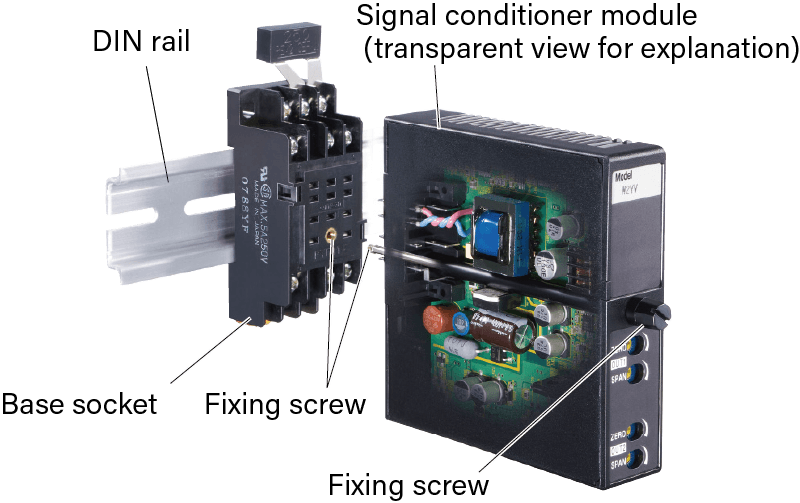

  • Space-saving, plug-in base mounted

    These compact, plug-in signal conditioners can be inspected and replaced without having to disconnect any wiring.

    Space-saving, plug-in base mounted

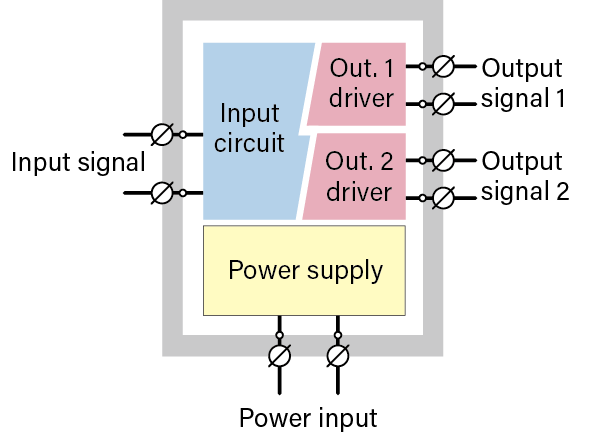

  • Isolation and power supply

    Four-port isolation
    Dielectric strength: 2000 V AC @ 1 min.

    AC power supply: 85-264 V AC, 100 – 240 V AC
    DC power supply: 24 V DC, 11 – 27 V DC, 110 V DC

    * Specifications may vary depending on the model. For details, see the datasheet.
    Isolation and power supply
