Compact Plug-in with OEL display
M1E Series

back

Compact Plug-in with OEL display M1E Series

· The photo shows the base (Model: M1E-BS2) installed.

*1. When the mounting lock slider pulled out.

M1E Series are 2 or 4-channel Compact Signal Conditioners with OEL display.

  • 1500 V AC isolation
  • Standard DIN rail or surface mounting
  • 2 or 4 channels
  • Loop test
  • Selectable 100-240 V AC/24, 110 V DC power input
    (M1Exx-2)
  • 24 V DC power input (M1Exx-4)
  • Installation base (Model: M1E-BS2)
CE
デジタル設定 Actual Value Display Plug-in Five-port isolation AC DC Powered
Products Line up
Product Catalog

These compact plug-in signal conditioners are equipped with a highly visible OEL display.

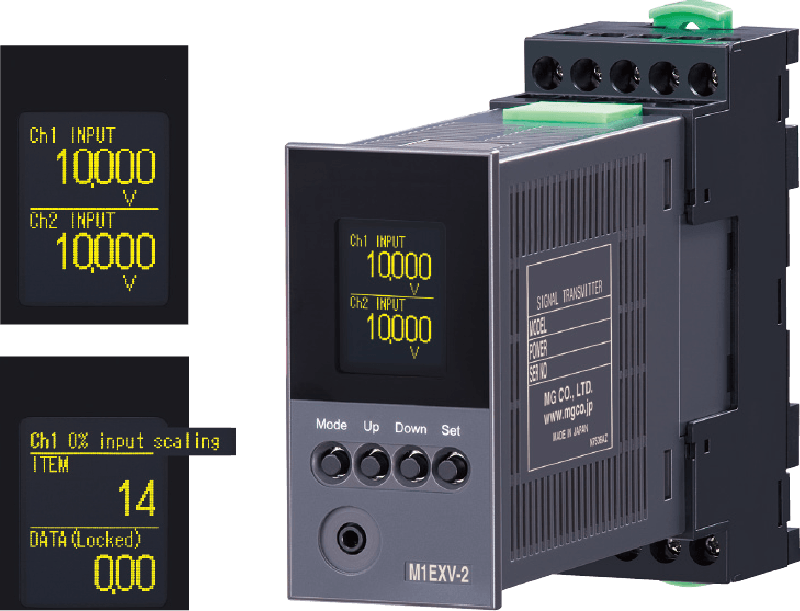

  • M1E Series featuring a highly visible OEL display

    We are proud to introduce our M1E Series featuring a highly visible OEL display. It includes functions such as input range scaling, loop testing, alarm testing, and linearization—the parameters of which can be configured using the front buttons and OEL display. 2-channel, 4-channel, and 1-channel (multi-output) types are available.

    M1E Series featuring a highly visible OEL display
  • M1E Series —
    Capable of configuration on the OEL display

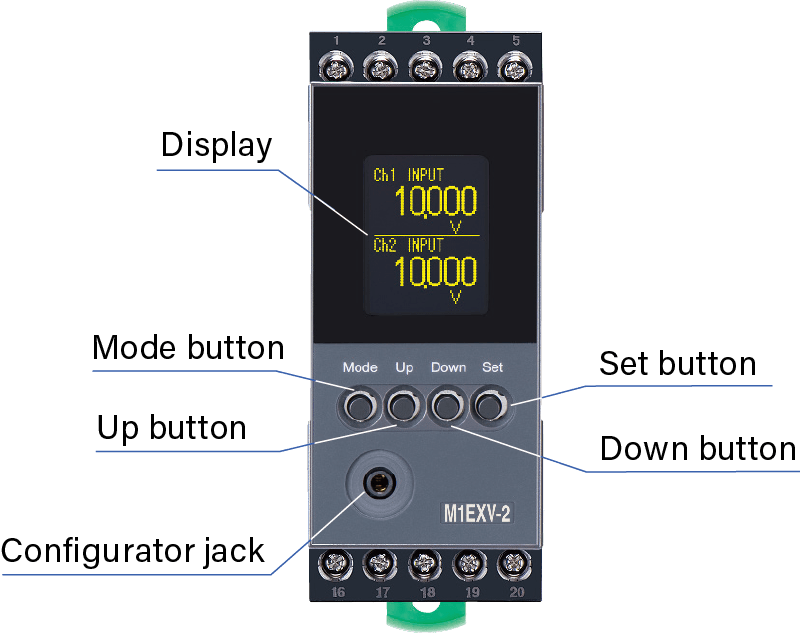

    Front Panel

    Front Panel

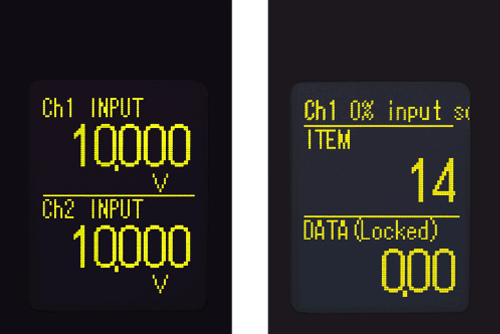

    OEL display clearly displays information

    The OEL display can be configured to be normally off and turned on by touching a button.

    OEL display clearly displays information

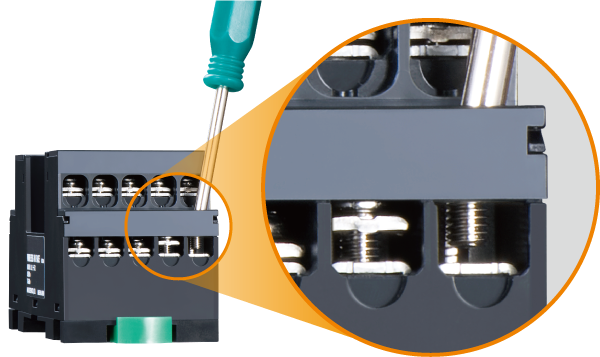

  • Terminal block with screw-loss prevention

    The terminal block on the backplane base (M1E-BS) features a structure that stops screws from being separated from the unit even when loosened, preventing them from becoming lost.
    This structure helps to streamline wiring work. Crimp terminals are available as round or Y-type terminals.

    Terminal block with screw-loss prevention

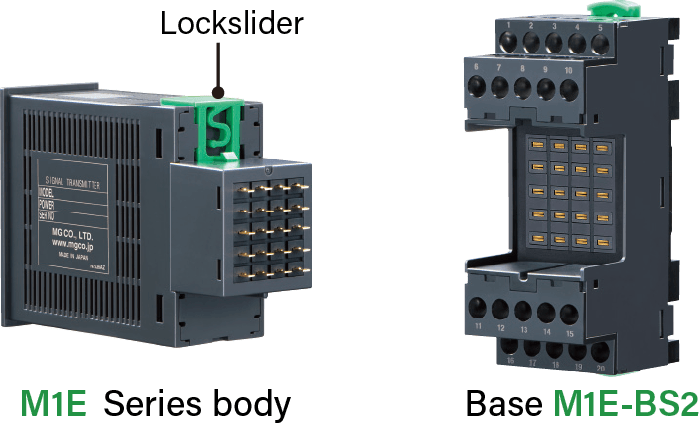

  • Space-saving, plug-in base mounted

    With a plug-in structure that facilitates installation and removal, the body can be mounted simply by pressing it into the base. Removal can even be done one-handed and with a single touch by pressing the mounting lockslider located on top of the body.

    Space-saving, plug-in base mounted

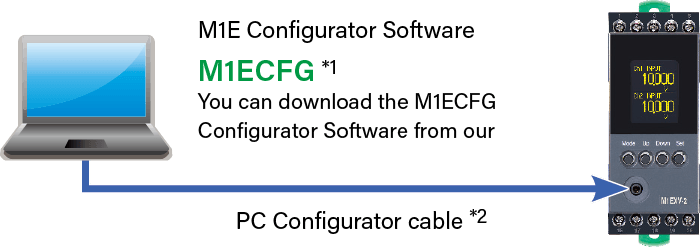

  • Settings can also be configured via PC.

    This feature is useful when configuring multiple settings with similar specifications or for saving settings.

    Settings can also be configured via PC.
    *1. Model M1EACFG is the alarm output type. *2. An optional configurator connection cable (Model: COP-US) is required.
