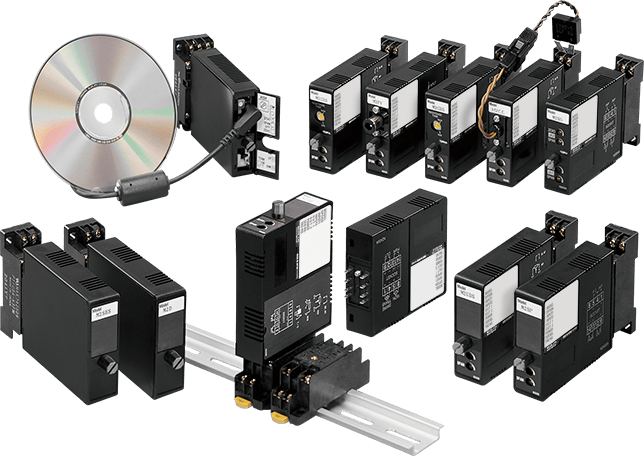

• The M2 Series has the most complete range of models.

  The Compact M2 Series Plug-in Signal Conditioners have the most complete range of models. Many of the models in this wide range can be delivered quickly and are approved by various certification agencies.

  Thanks to thorough part control, many models in this signal conditioner series do not exceed the regulation values for specific hazardous substances restricted by the RoHS Directive, so they can be used with peace of mind.

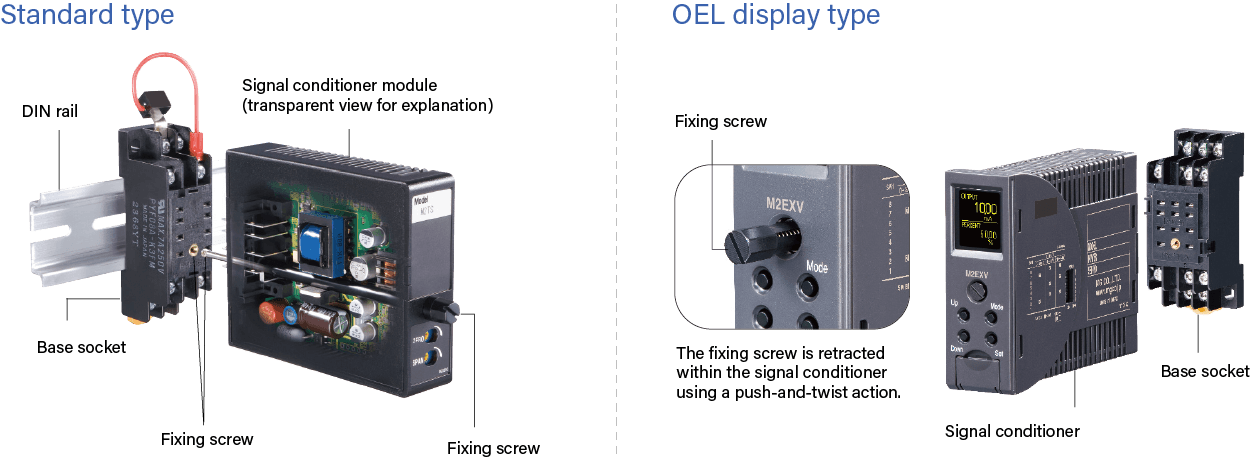

• Compact, plug-in socket mounted



  (click to enlarge image)

  The space-saving plug-in structure allows for inspection and replacement without having to disconnect any wiring.
  The base socket and signal conditioner body are securely fastened with mounting screws, so there is no risk of loosening or detachment.

• Isolation and power supply

  Three-port isolation
  Dielectric strength: 2000 V AC @ 1 min.

  AC power supply: 85-264 V AC, 100 – 240 V AC
  DC power supply: 24 V DC, 11 – 27 V DC, 110 V DC

  * Specifications may vary depending on the model. For details, see the datasheet.

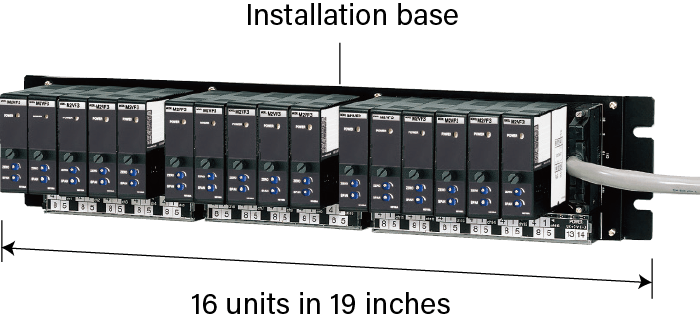

• High-density mounting・standard type

  Models in the Compact M2 Series Plug-in Signal Conditioners feature a slim, space-saving structure that is only 23 mm wide. Sixteen units can easily be accommodated in a 19-inch rack, and use of the dedicated installation base makes installation even more convenient.

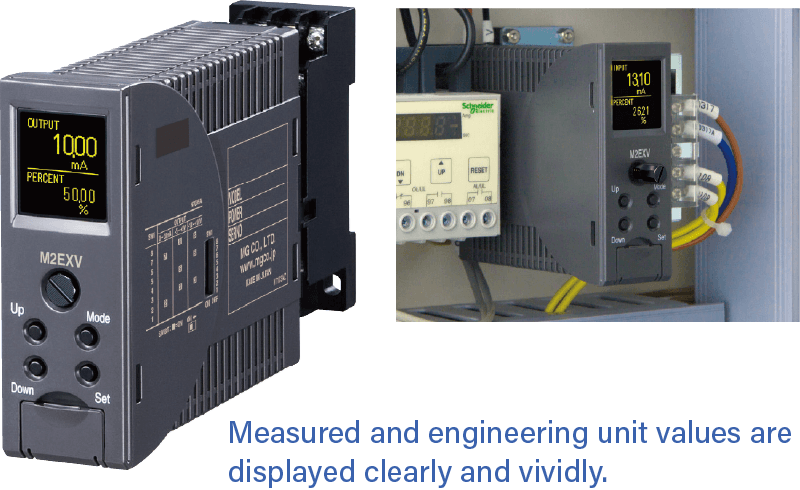

• Ideal for loop checks and maintenance when instant visibility is required.

  With its high brightness and contrast, the OEL display provides excellent visibility and is ideal for tasks where mistakes must be avoided, such as loop checks and signal checks during maintenance.
  The display can be configured to remain on continuously or to turn on when a button is touched.

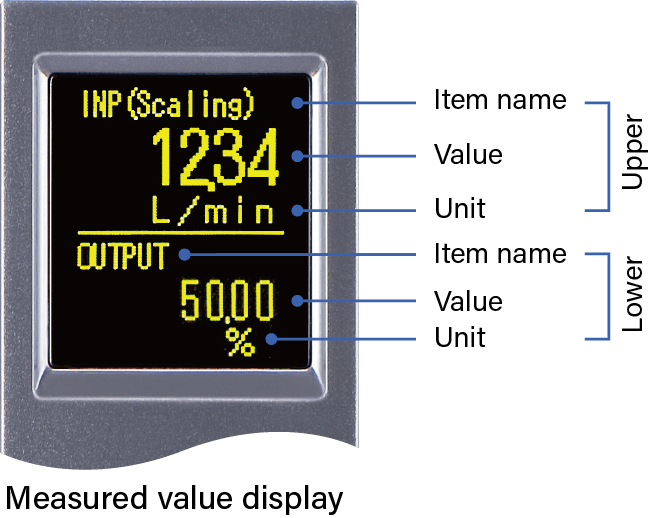

• Multi-function display

  Multiple values are displayed in two rows.

  Both the upper and lower rows can display up to six digits. Displayed contents can be freely assigned to inputs or outputs, while measured values, engineering unit values, scaled values, percentage values, and units can be configured individually.

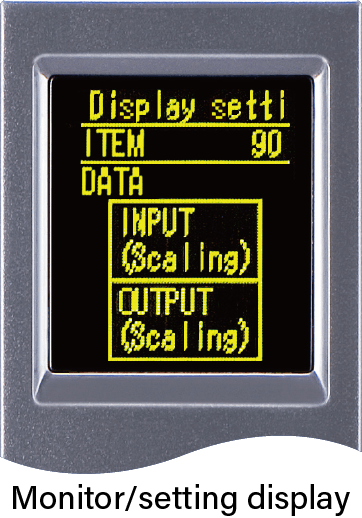

  Display settings can also be configured easily.

  Just switch to display setting mode and select the content to display for the upper and lower rows.

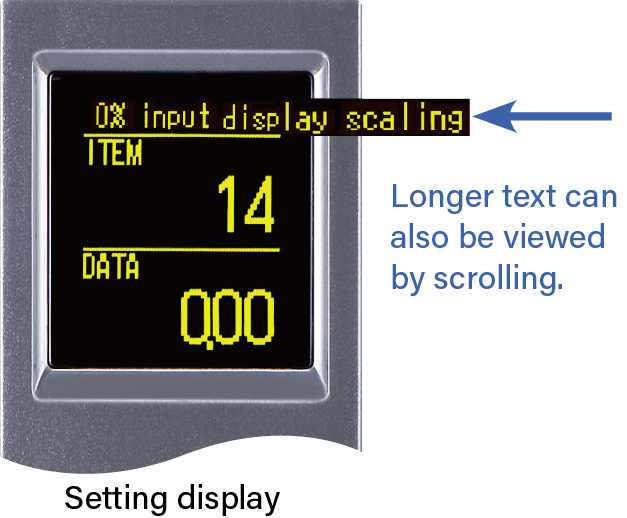

  No need to refer to the instruction manual.

  Although it is normally necessary to check the corresponding number of a setting in the instruction manual, with the M2E Series, settings are displayed using text, eliminating the need to look up numbers.

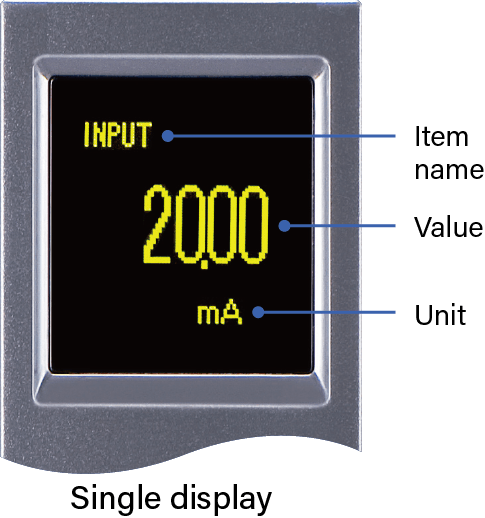

  Single display

  If you only need to display one item or want to display it in large text, you can select single display.

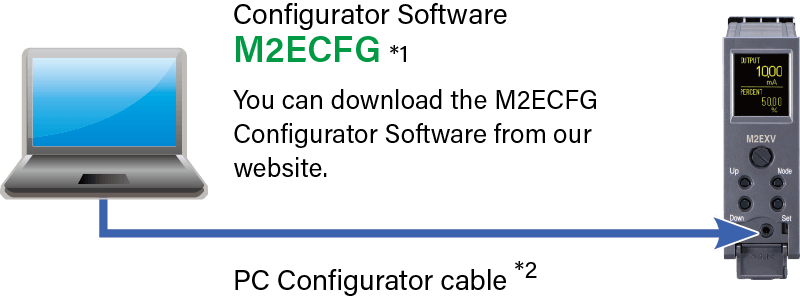

• Settings can also be configured via PC.

  This feature is useful when configuring multiple settings with similar specifications or for saving settings.

  *1. Model M2EACFG is the alarm output type. *2. An optional configurator connection cable (Model: COP-US) is required.

Signal conditioners configurable via PC
Specifications will be configured as requested free-of-charge when shipped from the factory.

•

  PC programmable

  With these signal conditioners, specifications can be configured using a PC. This allows for use in a wider range of applications, as setting ranges are larger and more tailored specifications can be configured.
  Some models, such as those in the M2E Series, allow for settings to be configured just using the buttons on the front panel and without using a PC.

  OEL display SIGNAL TRANSMITTER	M2EXV
  OEL display THERMOCOUPLE TRANSMITTER	M2EXT
  OEL display RTD TRANSMITTER	M2EXR
  OEL display POTENTIOMETER TRANSMITTER	M2EXM
  OEL display CURRENT LOOP SUPPLY	M2EXDY
  OEL display SELF-SYNCH TRANSMITTER	M2EXS
  OEL display DC ALARM	M2EAXV
  OEL display  THERMOCOUPLE ALARM	M2EAXT
  OEL display RTD ALARM	M2EAXR
  OEL display POTENTIOMETER ALARM	M2EAXM
  OEL display  TWO-WIRE TRANSMITTER ALARM	M2EAXDY
  OEL display SELF-SYNCH ALARM	M2EAXS
  UNIVERSAL TRANSMITTER	M2XU
  UNIVERSAL TRANSMITTER (Modbus-RTU communication)	M2XUM
  SIGNAL TRANSMITTER	M2XV2
  THERMOCOUPLE TRANSMITTER	M2XT2
  RTD TRANSMITTER	M2XR2
  POTENTIOMETER TRANSMITTER	M2XM2
  FREQUENCY TRANSMITTER	M2XPA3
  ENCODER SPEED TRANSMITTER (built-in excitation)	M2XRP2
  LINEARIZER	M2XF2

•

  “ONE-STEP CAL” programming

  With just a signal generator and receiver display, specifications can be changed without using a PC or dedicated programmer, so they can be used in any location or environment.

  SIGNAL TRANSMITTER	M2LV
  RTD TRANSMITTER (field- and PC-configurable)	M2LR
  POTENTIOMETER TRANSMITTER (field- and PC-configurable)	M2LPM

•

  Front panel configurable

  Specifications can be changed using the buttons and switches located on the front, which is convenient when making relatively frequent specification changes.

  STRAIN GAUGE TRANSMITTER	M2LCS
  PULSE SCALER (field-configurable)	M2PRU
  DC ALARM	M2AVS
  DC ALARM (thumbwheel switch adjustment)	M2SED
  DC ALARM (thumbwheel switch adjustment; DPDT output)	M2AS
  DC ALARM (thumbwheel switch adjustment; single SPDT output)	M2AS1
  POTENTIOMETER TRANSMITTER (field- and PC-configurable)	M2REB
  RATIO/BIAS TRANSMITTER (output bias)	M2RTS
  LIMITER	M2LMS
  DELAY BUFFER	M2CDS
  RAMP BUFFER	M2CRS
  PARAMETER GENERATOR	M2MST

  Other types are available that allow specifications to be changed using DIP switches located on the side.

Unique signal conditioners

• Universal Transmitter


  Select from among five types of inputs, including DC current, voltage, thermocouple, RTD and potentiometer. Models with Modbus outputs are also available. UNIVERSAL TRANSMITTER (PC programmable)M2XU UNIVERSAL TRANSMITTER (PC programmable; Modbus-RTU communication) M2XUM

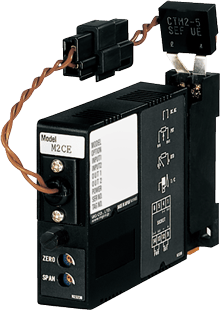

  CT Transmitter


  This converts AC signals to standard instrumentation signals. Small base sockets are prone to contact welding caused by factors such as motor inrush currents, so these models are designed so that input signals bypass the base socket. CT TRANSMITTER (average sensing, RMS calibrated) M2CA CT TRANSMITTER (RMS sensing) M2CE


  Signal Transmitter, ultra-high speed response 30 µsec.


  This transmitter has three characteristics essential for charge-discharge testers: high conversion accuracy, ultra-low temperature drift, and ultra-fast response. SIGNAL TRANSMITTER (high-accuracy, ultra-high speed response 30 µsec.) M2VF3

  P/I Transducer


  This converts air pressure signals ranging from 19.6 to 98.1 kPa to standard instrumentation signals. P/I TRANSDUCERM2PV

  Voltage Divider


  This divides high voltages that can normally not be used into voltage levels acceptable for general use. The division ratio for standard products is 1/1000.VOLTAGE DIVIDERM2VV

• Encoder Speed Transmitter


  This converts forward and reverse pulse inputs from a two-phase incremental rotary encoder into forward and reverse speed signals.ENCODER SPEED TRANSMITTER(PC programmable; built-in excitation) M2XRP2

  Resistance/Resistance Converter


  This transmitter takes resistance values from an RTD and outputs values that are n times the input. This is useful in situations such as connecting a new PID controller to an old sensor. RESISTANCE/RESISTANCE CONVERTERM2RR

  Analog Switching Module


  Two analog signals can be selected or one analog voltage signal switched in two directions. ANALOG SWITCHING MODULEM2MNV

  Current Repeater (applicable to HART signal)


  This insulated current loop supply powers a two-wire transmitter capable of HART communication without interrupting communication. It also features a repeater function that shapes HART communication signal waveforms.CURRENT REPEATER (applicable to HART signal, opencircuit detection selectable) M2DYHR

  Ratio/Bias Transmitter


  This ratio/bias transmitter allows the ratio and bias to be numerically set while viewing the display. No tools, such as a digital multimeter, are required, and settings can be configured accurately even in dark locations. RATIO/BIAS TRANSMITTER (output bias) M2REB RATIO/BIAS TRANSMITTER (input bias) M2RTS
