20. Paper Mill

There are many flow meters used at paper mills because they use a large amount of water.

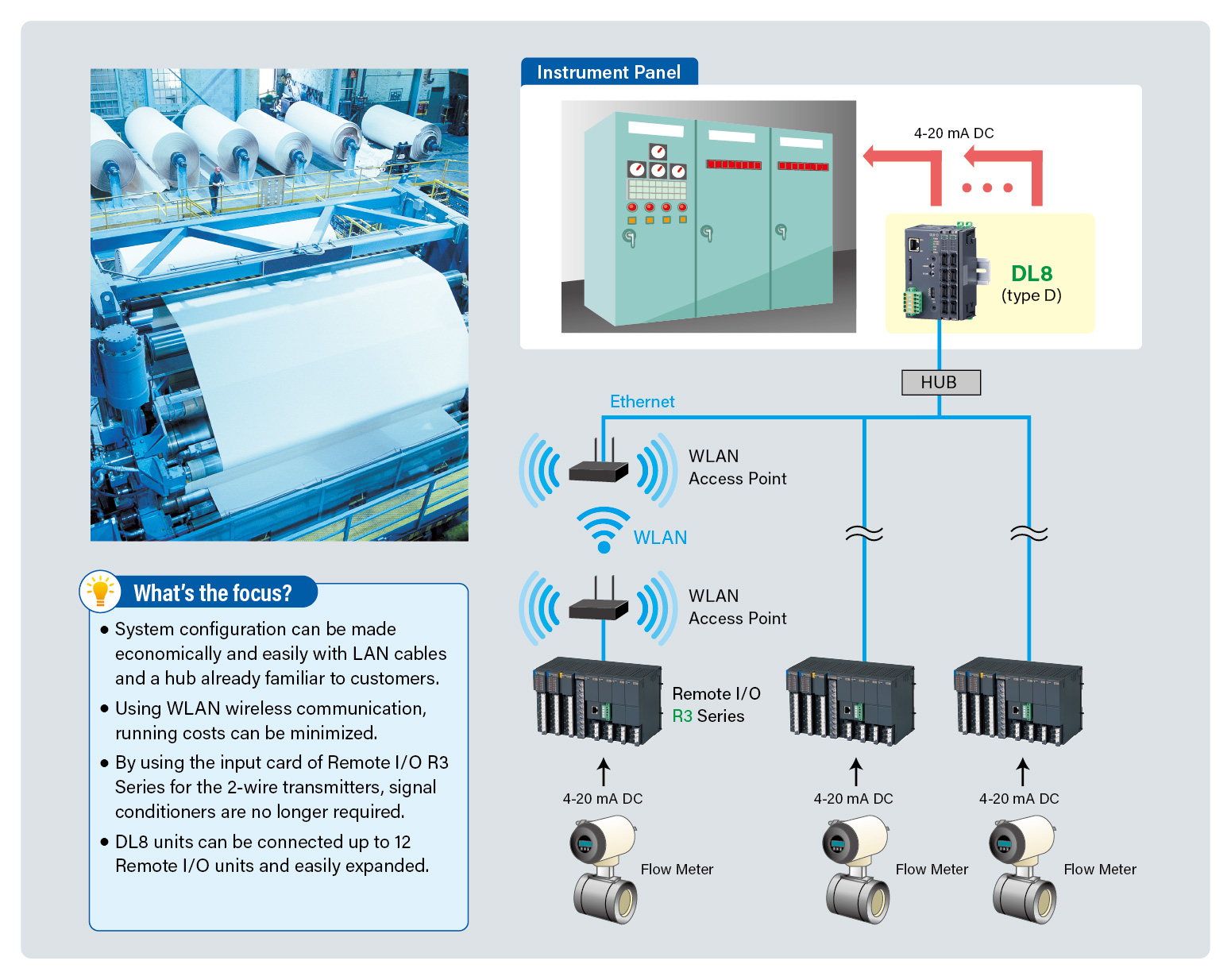

Data from each flow meter is sent via the DL8 and managed at a central station.

Using the I/O Mapping function of the DL8-D series units allows the measurement signals of flow meters sent to the Remote I/O R3 Series to be output from a DL8 unit I/O card.

A WLAN terminal can be used for wireless transfer of data from locations difficult to link via LAN cable.

A maximum of 32 measurement signals can be sent to one central location and output as a batch.

Output signals from the DL8 I/O modules are displayed by indicators of instrument panel.

· Static IP or dynamic DNS is required.
