73VR1100 - Paperless Recorder with Remote I/O

73VR1100 - Paperless Recorder with Remote I/O

Connects to remote I/O.
Designed to utilize a wide variety of our remote I/O devices.

  • Best suited to record data transmitted from I/O located remotely in the field, or inside an instrumentation or control cabinet.
  • Instead of using expensive sensor cables, reduce wiring runs by using open field networks through remote I/O.
  • I/O separated 73VR1100 provides the installation flexibility which fits in the tight space of a control panel or machinery chassis.
CE IP65
Products Line up
Product Catalog

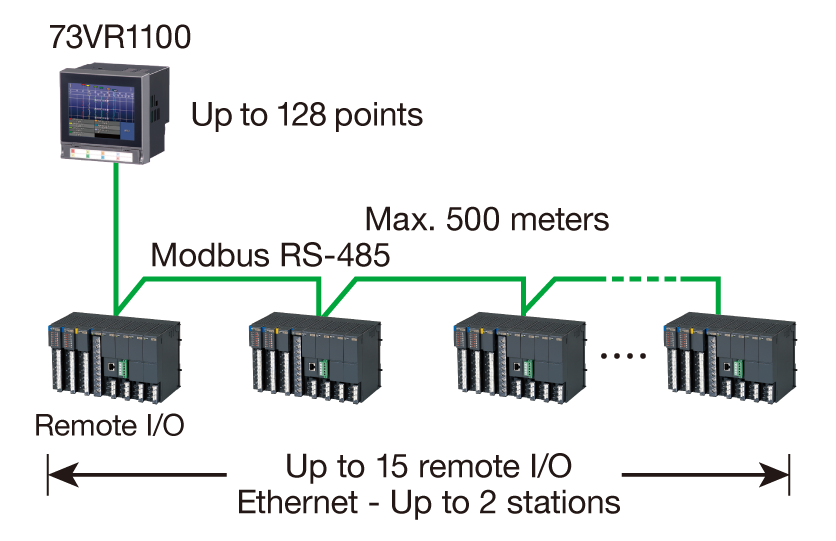

  • Multichannel Remote Data Acquisition
    Multichannel Remote Data Acquisition

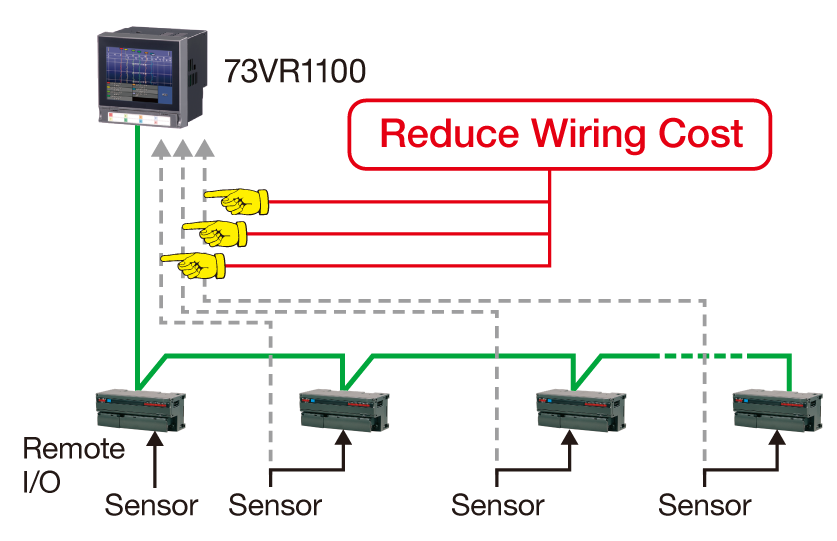

  • Reduce Wiring Cost
    Reduce Wiring Cost

Specifications

Number of input channels
64, 128 (Function pen points included)
Function pen points
32, 64
Storing rate
(high speed mode)
100 msec.
Storing rate
(normal mode)		 500 msec., 1, 2, 5, 10 seconds, 1minute, 10 minutes
Input types R3 series I/O modules (DC voltage, DC current, Thermocouple, RTD, AC voltage, AC current, Encoder, Totalized pulse)
Trigger input
Max. 128 via remote I/O
Alarm/Run output
Alarm x 1, Run x 1; Alarm also available via remote output modules
Weight
1.7 kg (3.7 lbs)
Display Display device : 5.5-inch TFT LCD
Display colors : 256
Resolution : 320 x 240 pixels
Ethernet 10BASE-T / 100BASE-TX automatically switched; Conforms to IEEE802 (10BASE-T) or IEEE802.3 (100BASE-TX)
Degree of protection IP65
(applicable to the front panel of with the cover closed when a single unit is mounted according to the specified panel cutout)
