73VR2100 - Paperless Recorder with built-in I/O

Built-in universal input modules.
Universal input DC, Thermocouple, RTD
- Independent input type and range selectable for each channel
- 100 msec. storing rate up to 6 point
- 2, 4, 6, 8, 10 or 12 points
- Real time trending and recording on the PC Recorder software MSR via Ethernet


-
Quick Setup

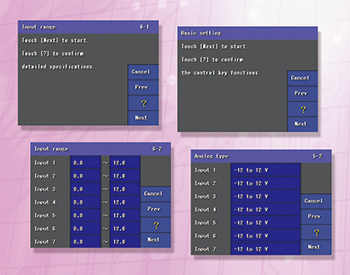

Intuitive “Help View” screen for easy user setup and use.
-
Input Type
DC Voltage Input resistance:
900kΩ minimum (Excluding the case in which, with range setting other than ±12V, ±6V or ±3V, a voltage exceeding ±1.3V is applied.)Input range:
±60mV, ±125mV, ±250mV, ±500mV, ±1000mV, ±3V, ±6V, ±12VDC Current 4-20mA, use optional REM3-250 resistor module Thermocouple Input range:
(PR), K (CA), E (CRC), F (IC), T (CC), B (RH), R, S, C (WRe 5-26), N, U, L, P (Platinel II)Burnout sensing:
• Upscale: ≤130nA
• Downscale: ≤220nA
• No burnout: ≤10nARTD (3-wire) Input range:
Pt 100 (JIS ’89), Pt 100 (JIS ’97, IEC), Pt 200, Pt 300, Pt 400, Pt 500, Pt 1000, Pt 50Ω (JIS ’• ;81), JPt 100 (JIS ’89), Ni 100, Ni 120, Ni 508.4Ω, Ni-Fe 604, Cu 10 @25°CBurnout sensing:
• Upscale or Downscale: ≤130nAAllowable leadwire resistance:
20Ω per wire
Specifications
Number of input channels |
|
---|---|
Function pen points |
|
Storing rate (high speed mode) |
|
Storing rate (normal mode) |
500 msec., 1, 2, 5, 10 seconds, 1minute, 10 minutes |
Input types | Universal input (DC mV and voltage, thermocouple, 3-wire RTD) |
Trigger input |
|
Alarm/Run output |
|
Weight |
|
Display | Display device : 5.5-inch TFT LCD Display colors : 256 Resolution : 320 x 240 pixels |
Ethernet | 10BASE-T / 100BASE-TX automatically switched; Conforms to IEEE802 (10BASE-T) or IEEE802.3 (100BASE-TX) |
Degree of protection | IP65 (applicable to the front panel of with the cover closed when a single unit is mounted according to the specified panel cutout) |
