73VR3100 - Paperless Recorder
with selectable built-in I/O

Selectable input modules.
Flexible I/O capability using the R3 series modules.
Compatible with various open networks.

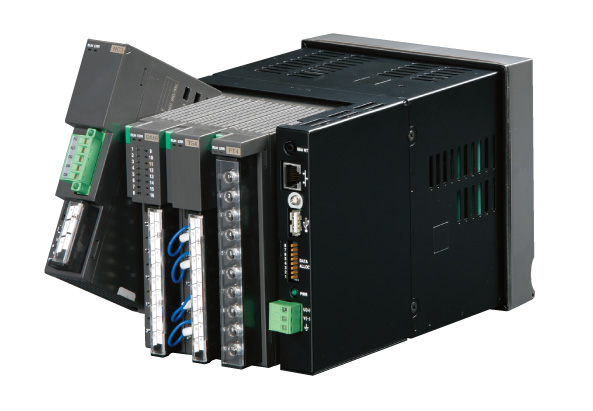

- Up to four R3 Series I/O modules can be selected (Max. 64 inputs).
- By replacing one of the I/O modules with Network Module for the R3 Series, the 73VR3100 can directly communicate to major PLC via Modbus, Ethernet (Modbus/TCP), DeviceNet, PROFIBUS-DP, CC-Link, LONWORKS, T-Link and FL-net.
- 20 msec. storing rate with the combination of 8 analog and 8 discrete inputs.
- Real time trending and recording on the PC Recorder software MSR via Ethernet.

-

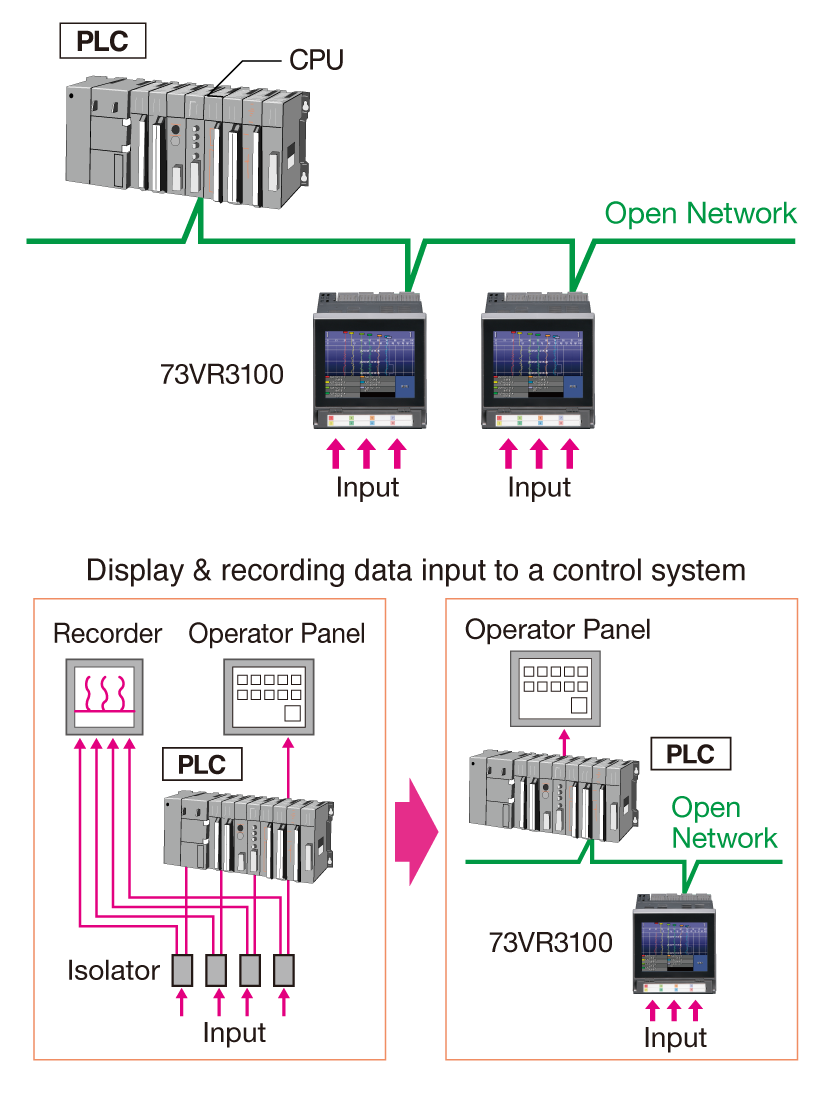

Open network module installed,using 73VR3100 as remote I/O with local display and recording function.
-

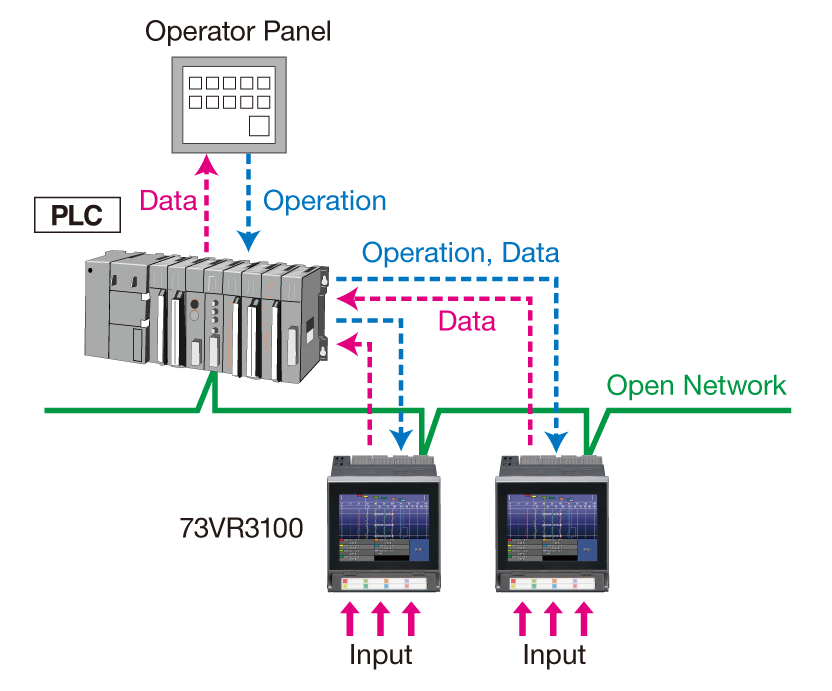

Direct operation and configuration from PLC
- The host PLC can control the 73VR3100 via built-in gateway module to start / stop recording, enter comments and set displays.*1
- Data sent from PLC can be displayed and record.*2
Gateway Interface Modules*3
CC-Link R3-GC1 Ver.2.00 DeviceNet R3-GD1 Analog 64ch Modbus/TCP R3-GE1 Ethernet Modbus R3-GM1 RS-485 FL-net R3-GE1 OPCN-2
Specifications
Number of input channels |
|
---|---|
Function pen points |
|
Storing rate (high speed mode) |
|
Storing rate (normal mode) |
500 msec., 1, 2, 5, 10 seconds, 1minute, 10 minutes |
Input types | R3 series I/O modules (DC voltage, DC current, Thermocouple, RTD, AC voltage, AC current, Encoder, Totalized pulse, Di/o) |
Trigger input |
|
Alarm/Run output |
|
Weight |
|
Display | Display device : 5.5-inch TFT LCD Display colors : 256 Resolution : 320 x 240 pixels |
Ethernet | 10BASE-T / 100BASE-TX automatically switched; Conforms to IEEE802 (10BASE-T) or IEEE802.3 (100BASE-TX) |
Degree of protection | IP65 (applicable to the front panel of with the cover closed when a single unit is mounted according to the specified panel cutout) |
