Strain Gauge Load Cells for Compression Forces

Rated Capacity: 2.5 N, 5 N

  • Rated capacity 2.5 N (255 gf)
    Small, Slim, Mechanical stopper incorporated

    LCC-2R5-Z
    Model: LCC-2R5-Z
    Data Sheet
    Rated capacity (R.C.) 2.5 N (255 gf)
    Rated output (R.O.) 0.4 mV/V or more
    Non-linearity ±0.3 % R.O.
    Hysteresis ±0.2 % R.O.
    Compensated temperature range 0 to 50 °C (32 to 122 °F)
    Safe overload 150 % R.C.
    Input terminal resistance Approx. 350 Ω
    Output terminal resistance Approx. 350 Ω
    Body material Aluminium
    Recommended excitation voltage 2.5 V
    Maximum excitation voltage 5 V
    Weight 13 g (0.46 oz)

  • Rated capacity 5 N (510 gf)
    Small, Slim, Mechanical stopper incorporated

    LCC-5-Z
    Model: LCC-5-Z
    Data Sheet
    Rated capacity (R.C.) 5 N (510 gf)
    Rated output (R.O.) 0.4 mV/V or more
    Non-linearity ±0.3 % R.O.
    Hysteresis ±0.2 % R.O.
    Compensated temperature range 0 to 50 °C (32 to 122 °F)
    Safe overload 150 % R.C.
    Input terminal resistance Approx. 350 Ω
    Output terminal resistance Approx. 350 Ω
    Body material Aluminium
    Recommended excitation voltage 2.5 V
    Maximum excitation voltage 5 V
    Weight 13 g (0.46 oz)

Rated Capacity: 10 N ... 50 N

  • Rated capacity 10 N (1.02 kgf)
    Small and lightweight, Fit in a limited space

    LCC-10-U
    Model: LCC-10-U
    Data Sheet
    Rated capacity (R.C.) 10 N (1.02 kgf)
    Rated output (R.O.) 1 mV/V ±30 %
    Non-linearity ±1 % R.O.
    Hysteresis ±1 % R.O.
    Compensated temperature range 0 to 50 °C (32 to 122 °F)
    Safe overload 150 % R.C.
    Input terminal resistance 350 Ω ±10 Ω
    Output terminal resistance 350 Ω ±10 Ω
    Body material Aluminium
    Recommended excitation voltage 2.5 V
    Maximum excitation voltage 5 V
    Weight 0.8 g (0.03 oz)

  • Rated capacity 20 N (2.04 kgf)
    Small and lightweight, Fit in a limited space

    LCC-20-U
    Model: LCC-20-U
    Data Sheet
    Rated capacity (R.C.) 20 N (2.04 kgf)
    Rated output (R.O.) 1 mV/V ±30 %
    Non-linearity ±1 % R.O.
    Hysteresis ±1 % R.O.
    Compensated temperature range 0 to 50 °C (32 to 122 °F)
    Safe overload 150 % R.C.
    Input terminal resistance 350 Ω ±10 Ω
    Output terminal resistance 350 Ω ±10 Ω
    Body material Stainless steel
    Recommended excitation voltage 2.5 V
    Maximum excitation voltage 5 V
    Weight 3 g (0.11 oz)

  • Rated capacity 50 N (5.1 kgf)
    Small and lightweight, Fit in a limited space

    LCC-50-U
    Model: LCC-50-U
    Data Sheet
    Rated capacity (R.C.) 50 N (5.1 kgf)
    Rated output (R.O.) 1 mV/V ±30 %
    Non-linearity ±1 % R.O.
    Hysteresis ±1 % R.O.
    Compensated temperature range 0 to 50 °C (32 to 122 °F)
    Safe overload 150 % R.C.
    Input terminal resistance 350 Ω ±10 Ω
    Output terminal resistance 350 Ω ±10 Ω
    Body material Stainless steel
    Recommended excitation voltage 2.5 V
    Maximum excitation voltage 5 V
    Weight 3 g (0.11 oz)

Rated Capacity: 100 N, 200 N

  • Rated capacity 100 N (10.2 kgf)
    Small size

    LCC-100-L
    Model: LCC-100-L
    Data Sheet
    Rated capacity (R.C.) 100 N (10.2 kgf)
    Rated output (R.O.) 1 mV/V ±10 %
    Non-linearity ±1 % R.O.
    Hysteresis ±1 % R.O.
    Compensated temperature range 0 to 50 °C (32 to 122 °F)
    Safe overload 150 % R.C.
    Input terminal resistance 350 Ω ±10 Ω
    Output terminal resistance 350 Ω ±10 Ω
    Body material Stainless steel
    Recommended excitation voltage 2.5 V
    Maximum excitation voltage 5 V
    Weight 20 g (0.71 oz)

  • Rated capacity 200 N (20.4 kgf)
    Small size

    LCC-200-L
    Model: LCC-200-L
    Data Sheet
    Rated capacity (R.C.) 200 N (20.4 kgf)
    Rated output (R.O.) 1 mV/V ±10 %
    Non-linearity ±1 % R.O.
    Hysteresis ±1 % R.O.
    Compensated temperature range 0 to 50 °C (32 to 122 °F)
    Safe overload 150 % R.C.
    Input terminal resistance 350 Ω ±10 Ω
    Output terminal resistance 350 Ω ±10 Ω
    Body material Stainless steel
    Recommended excitation voltage 2.5 V
    Maximum excitation voltage 5 V
    Weight 20 g (0.71 oz)

Rated Capacity: 300 N, 500 N, 1 kN ... 20 kN

  • Rated capacity 300 N (30.6 kgf)
    Slim type

    LCC-300-B
    Model: LCC-300-B
    Data Sheet
    Rated capacity (R.C.) 300 N (30.6 kgf)
    Rated output (R.O.) 2 mV/V ±0.5 %
    Non-linearity ±0.2 % R.O.
    Hysteresis ±0.2 % R.O.
    Compensated temperature range -10 to +60 °C (14 to 140 °F)
    Safe overload 150 % R.C.
    Input terminal resistance 420 Ω ±40 Ω
    Output terminal resistance 350 Ω ±5 Ω
    Body material Stainless steel
    Recommended excitation voltage 10 V
    Maximum excitation voltage 15 V
    Weight 400 g (0.88 lb)

  • Rated capacity 500 N (51 kgf)
    Slim type

    LCC-500-B
    Model: LCC-500-B
    Data Sheet
    Rated capacity (R.C.) 500 N (51 kgf)
    Rated output (R.O.) 2 mV/V ±0.5 %
    Non-linearity ±0.2 % R.O.
    Hysteresis ±0.2 % R.O.
    Compensated temperature range -10 to +60 °C (14 to 140 °F)
    Safe overload 150 % R.C.
    Input terminal resistance 420 Ω ±40 Ω
    Output terminal resistance 350 Ω ±5 Ω
    Body material Stainless steel
    Recommended excitation voltage 10 V
    Maximum excitation voltage 15 V
    Weight 400 g (0.88 lb)

  • Rated capacity 1 kN (102 kgf)
    Slim type

    LCC-1K-B
    Model: LCC-1K-B
    Data Sheet
    Rated capacity (R.C.) 1 kN (102 kgf)
    Rated output (R.O.) 2 mV/V ±0.5 %
    Non-linearity ±0.2 % R.O.
    Hysteresis ±0.2 % R.O.
    Compensated temperature range -10 to +60 °C (14 to 140 °F)
    Safe overload 150 % R.C.
    Input terminal resistance 420 Ω ±40 Ω
    Output terminal resistance 350 Ω ±5 Ω
    Body material Stainless steel
    Recommended excitation voltage 10 V
    Maximum excitation voltage 15 V
    Weight 400 g (0.88 lb)

  • Rated capacity 2 kN (204 kgf)
    Slim type

    LCC-2K-B
    Model: LCC-2K-B
    Data Sheet
    Rated capacity (R.C.) 2 kN (204 kgf)
    Rated output (R.O.) 2 mV/V ±0.5 %
    Non-linearity ±0.2 % R.O.
    Hysteresis ±0.2 % R.O.
    Compensated temperature range -10 to +60 °C (14 to 140 °F)
    Safe overload 150 % R.C.
    Input terminal resistance 420 Ω ±40 Ω
    Output terminal resistance 350 Ω ±5 Ω
    Body material Stainless steel
    Recommended excitation voltage 10 V
    Maximum excitation voltage 15 V
    Weight 400 g (0.88 lb)

  • Rated capacity 3 kN (306 kgf)
    Slim type

    LCC-3K-B
    Model: LCC-3K-B
    Data Sheet
    Rated capacity (R.C.) 3 kN (306 kgf)
    Rated output (R.O.) 2 mV/V ±0.5 %
    Non-linearity ±0.2 % R.O.
    Hysteresis ±0.2 % R.O.
    Compensated temperature range -10 to +60 °C (14 to 140 °F)
    Safe overload 150 % R.C.
    Input terminal resistance 420 Ω ±40 Ω
    Output terminal resistance 350 Ω ±5 Ω
    Body material Stainless steel
    Recommended excitation voltage 10 V
    Maximum excitation voltage 15 V
    Weight 400 g (0.88 lb)

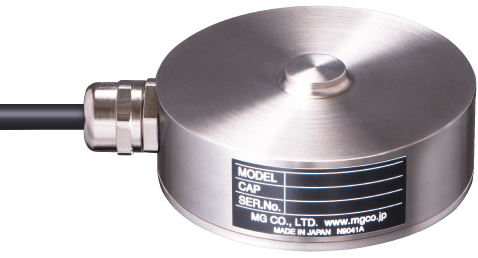

  • Rated capacity 5 kN (510 kgf)
    Slim type

    LCC-5K-B
    Model: LCC-5K-B
    Data Sheet
    Rated capacity (R.C.) 5 kN (510 kgf)
    Rated output (R.O.) 2 mV/V ±0.5 %
    Non-linearity ±0.2 % R.O.
    Hysteresis ±0.2 % R.O.
    Compensated temperature range -10 to +60 °C (14 to 140 °F)
    Safe overload 150 % R.C.
    Input terminal resistance 420 Ω ±40 Ω
    Output terminal resistance 350 Ω ±5 Ω
    Body material Stainless steel
    Recommended excitation voltage 10 V
    Maximum excitation voltage 15 V
    Weight 400 g (0.88 lb)

  • Rated capacity 10 kN (1020 kgf)
    Slim type

    LCC-10K-B
    Model: LCC-10K-B
    Data Sheet
    Rated capacity (R.C.) 10 kN (1020 kgf)
    Rated output (R.O.) 2 mV/V ±0.5 %
    Non-linearity ±0.2 % R.O.
    Hysteresis ±0.2 % R.O.
    Compensated temperature range -10 to +60 °C (14 to 140 °F)
    Safe overload 150 % R.C.
    Input terminal resistance 420 Ω ±40 Ω
    Output terminal resistance 350 Ω ±5 Ω
    Body material Stainless steel
    Recommended excitation voltage 10 V
    Maximum excitation voltage 15 V
    Weight 400 g (0.88 lb)

  • Rated capacity 20 kN (2039 kgf)
    Slim type

    LCC-20K-B
    Model: LCC-20K-B
    Data Sheet
    Rated capacity (R.C.) 20 kN (2039 kgf)
    Rated output (R.O.) 2 mV/V ±0.5 %
    Non-linearity ±0.2 % R.O.
    Hysteresis ±0.2 % R.O.
    Compensated temperature range -10 to +60 °C (14 to 140 °F)
    Safe overload 150 % R.C.
    Input terminal resistance 420 Ω ±40 Ω
    Output terminal resistance 350 Ω ±5 Ω
    Body material Stainless steel
    Recommended excitation voltage 10 V
    Maximum excitation voltage 15 V
    Weight 400 g (0.88 lb)

Rated Capacity: 30 kN ... 200 kN

  • Rated capacity 30 kN (3059 kgf)
    Slim type

    LCC-30K-B
    Model: LCC-30K-B
    Data Sheet
    Rated capacity (R.C.) 30 kN (3059 kgf)
    Rated output (R.O.) 2 mV/V ±0.5 %
    Non-linearity ±0.35 % R.O.
    Hysteresis ±0.35 % R.O.
    Compensated temperature range -10 to +60 °C (14 to 140 °F)
    Safe overload 150 % R.C.
    Input terminal resistance 420 Ω ±40 Ω
    Output terminal resistance 350 Ω ±5 Ω
    Body material Stainless steel
    Recommended excitation voltage 10 V
    Maximum excitation voltage 15 V
    Weight 1.8 kg (4.0 lb)

  • Rated capacity 50 kN (5099 kgf)
    Slim type

    LCC-50K-B
    Model: LCC-50K-B
    Data Sheet
    Rated capacity (R.C.) 50 kN (5099 kgf)
    Rated output (R.O.) 2 mV/V ±0.5 %
    Non-linearity ±0.35 % R.O.
    Hysteresis ±0.35 % R.O.
    Compensated temperature range -10 to +60 °C (14 to 140 °F)
    Safe overload 150 % R.C.
    Input terminal resistance 420 Ω ±40 Ω
    Output terminal resistance 350 Ω ±5 Ω
    Body material Stainless steel
    Recommended excitation voltage 10 V
    Maximum excitation voltage 15 V
    Weight 1.8 kg (4.0 lb)

  • Rated capacity 100 kN (10.2 tf)
    Slim type

    LCC-100K-B
    Model: LCC-100K-B
    Data Sheet
    Rated capacity (R.C.) 100 kN (10.2 tf)
    Rated output (R.O.) 2 mV/V ±0.5 %
    Non-linearity ±0.35 % R.O.
    Hysteresis ±0.35 % R.O.
    Compensated temperature range -10 to +60 °C (14 to 140 °F)
    Safe overload 150 % R.C.
    Input terminal resistance 420 Ω ±40 Ω
    Output terminal resistance 350 Ω ±5 Ω
    Body material Stainless steel
    Recommended excitation voltage 10 V
    Maximum excitation voltage 15 V
    Weight 1.8 kg (4.0 lb)

  • Rated capacity 200 kN (20.4 tf)
    Slim type

    LCC-200K-B
    Model: LCC-200K-B
    Data Sheet
    Rated capacity (R.C.) 200 kN (20.4 tf)
    Rated output (R.O.) 2 mV/V ±0.5 %
    Non-linearity ±0.35 % R.O.
    Hysteresis ±0.35 % R.O.
    Compensated temperature range -10 to +60 °C (14 to 140 °F)
    Safe overload 150 % R.C.
    Input terminal resistance 420 Ω ±40 Ω
    Output terminal resistance 350 Ω ±5 Ω
    Body material Stainless steel
    Recommended excitation voltage 10 V
    Maximum excitation voltage 15 V
    Weight 4.5 kg (9.9 lb)

Rated Capacity: 300 kN, 500 kN

  • Rated capacity 300 kN (30.6 tf)
    Slim type

    LCC-300K-D
    Model: LCC-300K-D
    Data Sheet
    Rated capacity (R.C.) 300 kN (30.6 tf)
    Rated output (R.O.) 2 mV/V ±0.5 %
    Non-linearity ±0.1 % R.O.
    Hysteresis ±0.1 % R.O..
    Compensated temperature range -10 to +60 °C (14 to 140 °F)
    Safe overload 150 % R.C.
    Input terminal resistance 350 to 800 Ω
    Output terminal resistance 350 to 800 Ω
    Body material Special alloy steel
    Recommended excitation voltage 10 V
    Maximum excitation voltage 15 V
    Weight 23 kg (50.7 lb)

  • Rated capacity 500 kN (51 tf)
    Slim type

    LCC-500K-D
    Model: LCC-500K-D
    Data Sheet
    Rated capacity (R.C.) 500 kN (51 tf)
    Rated output (R.O.) 2 mV/V ±0.5 %
    Non-linearity ±0.1 % R.O.
    Hysteresis ±0.1 % R.O..
    Compensated temperature range -10 to +60 °C (14 to 140 °F)
    Safe overload 150 % R.C.
    Input terminal resistance 350 to 800 Ω
    Output terminal resistance 350 to 800 Ω
    Body material Special alloy steel
    Recommended excitation voltage 10 V
    Maximum excitation voltage 15 V
    Weight 23 kg (50.7 lb)
