• Isolation and power supply

  Three-port isolation
  Dielectric strength: 2000 V AC @ 1 min. (with DC power supply)
  Dielectric strength: 1500 V AC @ 1 min. (with AC power supply)

  AC power supply: 85-264 V AC
  DC power supply: 24 V DC

  * Specifications may vary depending on the model. For details, see the datasheet.

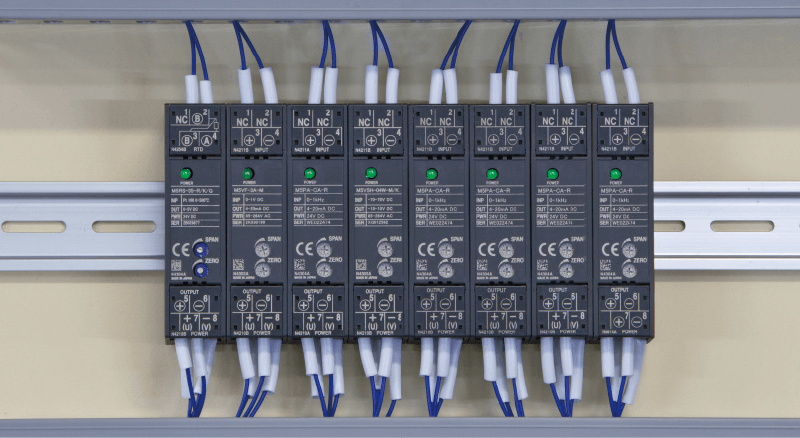

• The unit can be accommodated in a breaker box.



  M5 series can be installed on thin panels where breakers and other low-profile devices are installed.

• It is possible to install the unit even in a small gap on the side panel of a small device or a switch box.



PC programmable models are also available.

• PC configurator software


  *2. An optional configurator connection cable (Model: COP-US) is required.

  You can set specifications using PCs.
  In addition to I/O range calibration, you can configure various settings, including linearization, filter.
  You can also output a simulated signal.

  · You can upload parameters to PCs and save files on them.

  · You can also download parameters to other signal conditioners.

  This function is useful when you want to make many settings for identical specifications or when you want to save the settings.

• Loop test output

  The loop test output function is used to output the desired signal even when no input signal is connected. This function eliminates the need for simulated input signals and simplifies the necessary loop test after wiring.



  Besides the loop test output function, other useful functions are provided as standard.

  · Trend graph display

  · Compare function

  · Arithmetic function
  (linearizer, time-constant filter, and output limit operations)

The M5-UNIT Series offers a variety of economical DC input signal transmitters.

• Economical DC input signal transmitter



  Electronic circuit specially designed for the M5 Series

  The M5VS circuit is an efficient electronic circuit designed to operate with the minimum number of parts without compromising performance and quality.

  SIGNAL TRANSMITTER Model: M5VS

• Signal transmitter suitable for minute signal input



  Ceramic capacitors

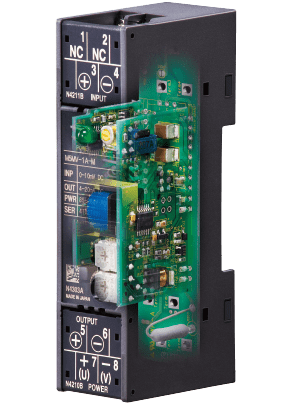

  The M5MV is a signal transmitter incorporating an electric circuit based on the electric circuit design of the M5VS so that the input section can handle minute signals. Also, as with the M5VS, the AC power supply does not use aluminum electrolytic capacitors.

  SIGNAL TRANSMITTER (narrow span input) Model: M5MV

• Signal transmitter with ultra-fast 30μs response speed.



  Toroidal transformer

  A toroidal transformer with a donut-shaped core is an indispensable part of an efficient and high-speed response.

  SIGNAL TRANSMITTER (high speed response 30μs.) Model: M5VF2

• Signal transmitter with high dielectric strength that withstands 2000 V AC



  Seat transformer

  With the ultra-slim sheet transformer made from a printed circuit board, the M5VSH has achieved a dielectric strength of 2000 V AC without taking up much space.

  SIGNAL TRANSMITTER (high dielectric strength) Model: M5VSH
