Low Profile M50X-UNIT Series

back

Low Profile M50X-UNIT Series

Multi Power Transducer
Model: M50XWTU

This series consists of low-profile terminal block signal conditioners. They feature a tension clamp terminal block with numerous terminals that can measure multiple circuits simultaneously with a single unit.

  • Super-mini power transducer
  • 5 to 600 A clamp CT use for current sensor
  • Single-phase/2-wire, single-phase/3-wire 3-phase/3-wire and 3-phase/4-wire are available
  • Single phase can measure up to four circuits, single-phase/3-wire, 3-phase/2-wire can measure up to two circuits
  • High-density mounting
  • Power LED and communication LED
  • New multi power transducer model:
    The built-in CPU calculates the AC power variables instantaneously

Click for more information Click for more information (Multi Power Transducer)

CE UL
Terminal block Structure Actual Value Display Plug-in
Products Line up
  • Isolation and power supply

    Five-port isolation
    Dielectric strength: 2000 V AC @ 1 min.

    M50XWTU: 100 – 240 V AC / 100 – 240 V DC (universal)
    M50XWTU-U: 100 – 240 V AC

    * Specifications may vary depending on the model. For details, see the datasheet.

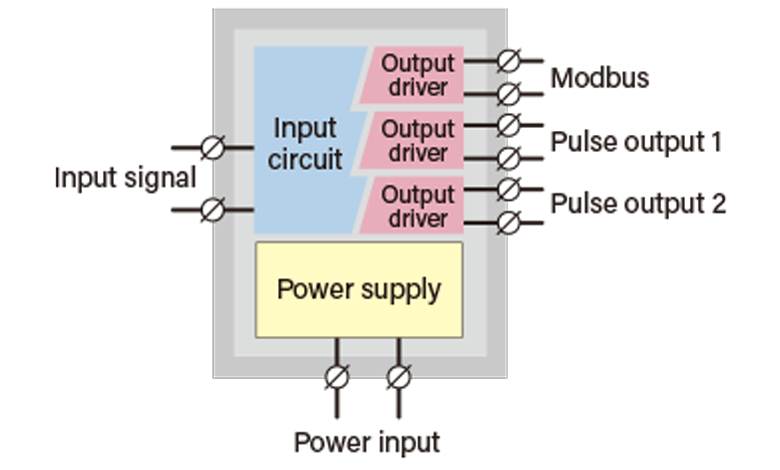

    Isolation and power supply
  • Compact size

    Multi Power Transducers, featuring the 41 mm (1.61 in.) deep terminal block style housing, are suitable for installation in a tight space of breaker boxes or wall-mounted panels.*1

    *1. Except for the M50XWTU-U. The equipment cannot be mounted or retrofitted to switchboards, distribution boards, or control panels that are installed and in operation in a facility. Please read the instruction manuals for the M50XWTU-U.

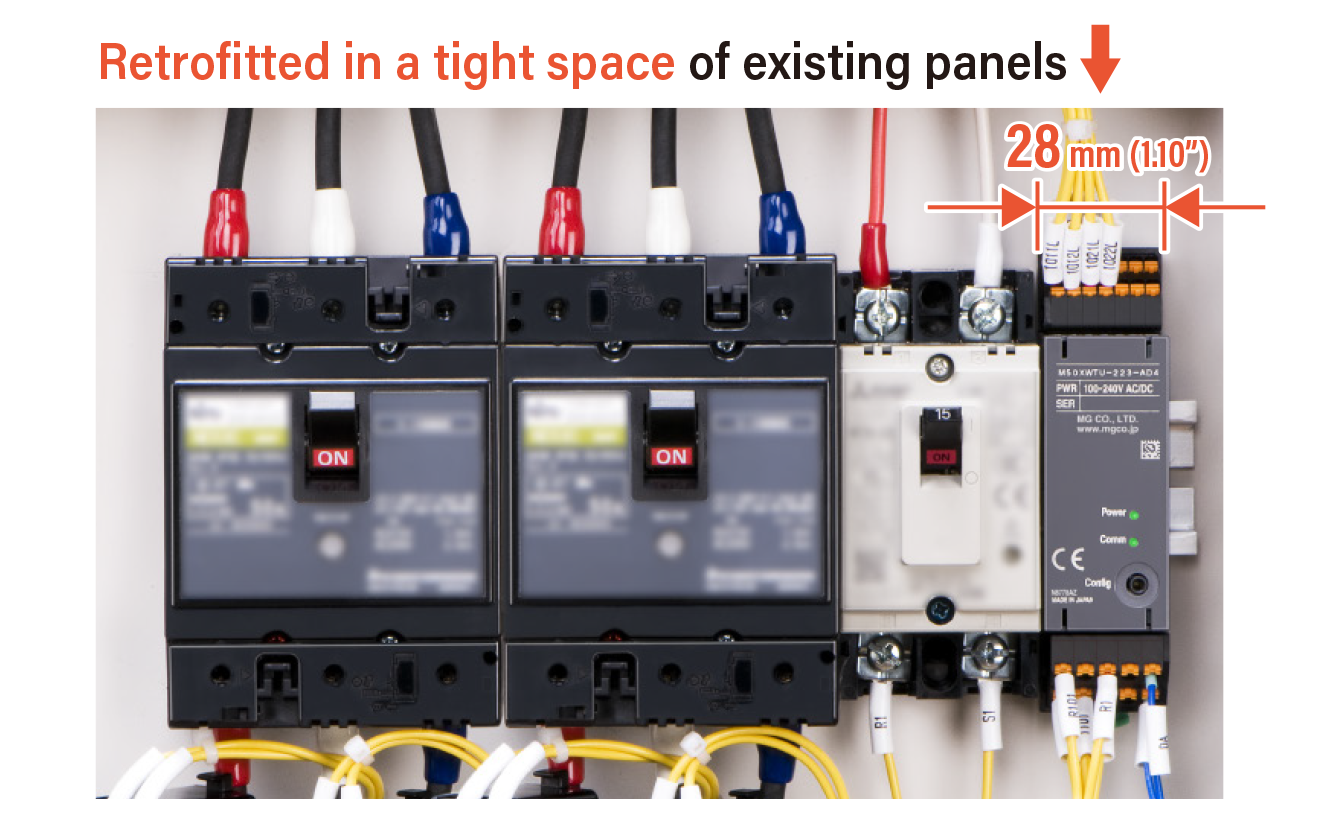

    Compact size
  • PC programmable signal conditioners

    With PC programmable signal conditioners, parameters such as input and output ranges can be freely modified using a program run on a Windows PC. Loop test output mode in the PC Configurator Software can be used to simulate any output value without actually connecting to the active input circuits, which is useful for system commissioning.

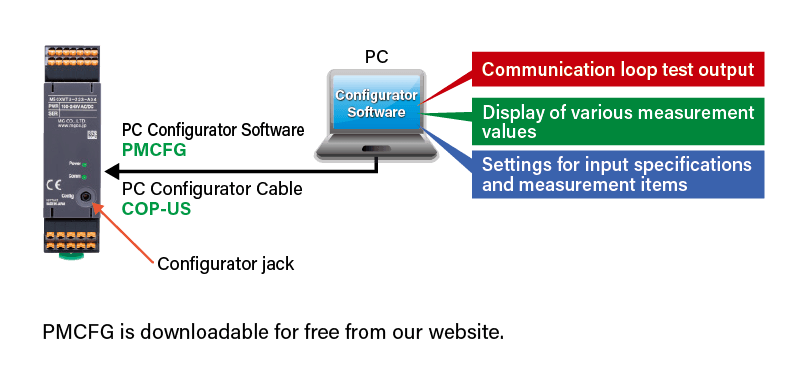

    PC programmable signal conditioners
  • Modbus communication

    Modbus communication functionality comes standard. Additional measurement points can be added by simply daisy-chaining the twisted pair wiring.

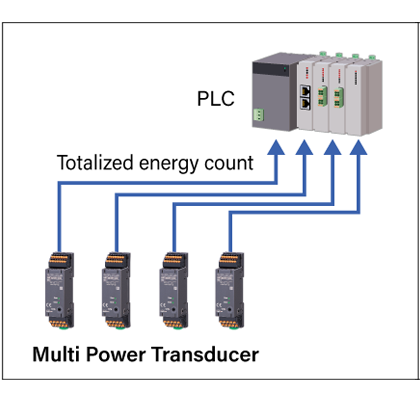

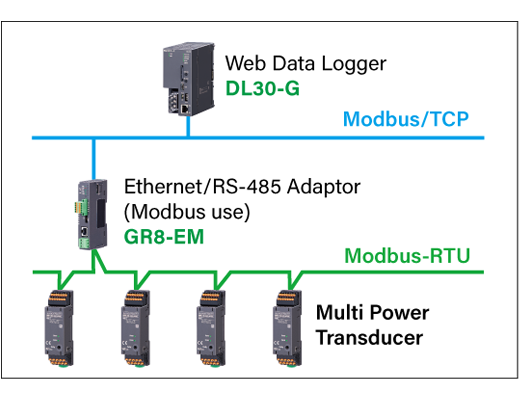

    Modbus communication Modbus communication
  • Tension clamp terminal block

    Wiring to the Tension clamp terminal block is quick and easy. Ferrules, solid or stranded wires of up to 1.5 mm2 can be used.

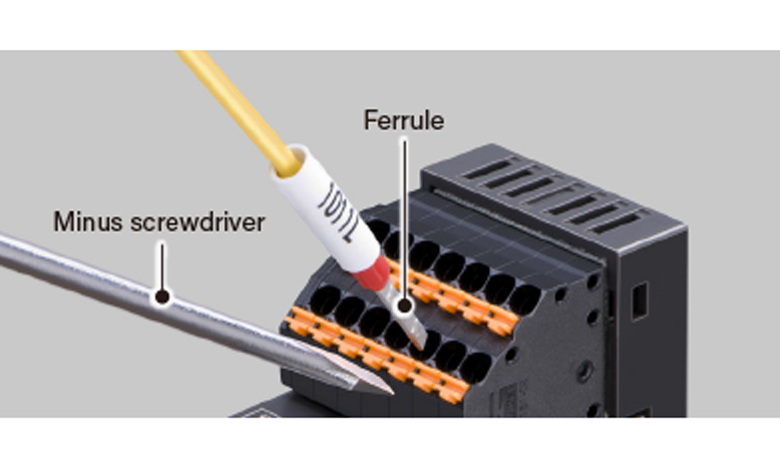

    Tension clamp terminal block
