Terminal Block Signal Conditioners with Display M50E-UNIT Series

back

Terminal Block Signal Conditioners with Display M50E-UNIT Series

Multi Power Transducer

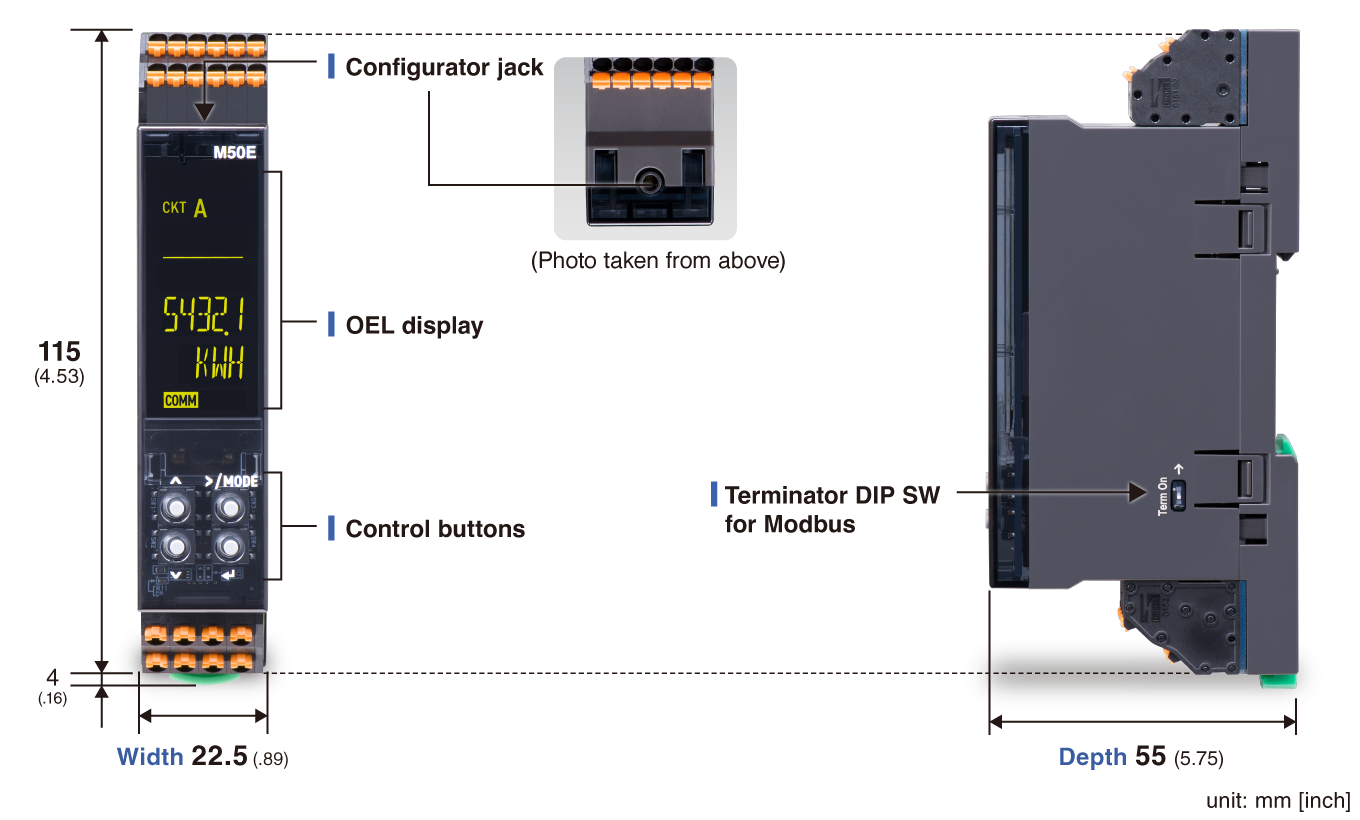

Model: M50EXWTU

High-performance Multi Power Transducer model now with an easy-to-read OEL display!

  • Super-mini power transducer
  • 5 to 600 A clamp CT use for current sensor
  • Single-phase/2-wire, single-phase/3-wire 3-phase/3-wire and 3-phase/4-wire are available
  • Single phase can measure up to four circuits, single-phase/3-wire, 3-phase/2-wire can measure up to two circuits
  • High-density mounting
  • Organic EL display
CE
Field-configurable Actual value display Terminal block Structure Actual Value Display Plug-in
Products Line up
  • OEL display clearly displays information

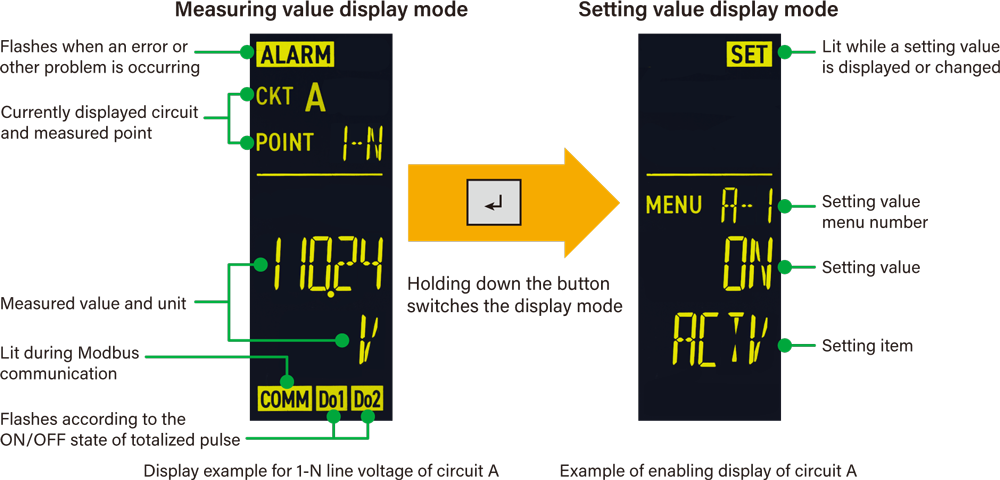

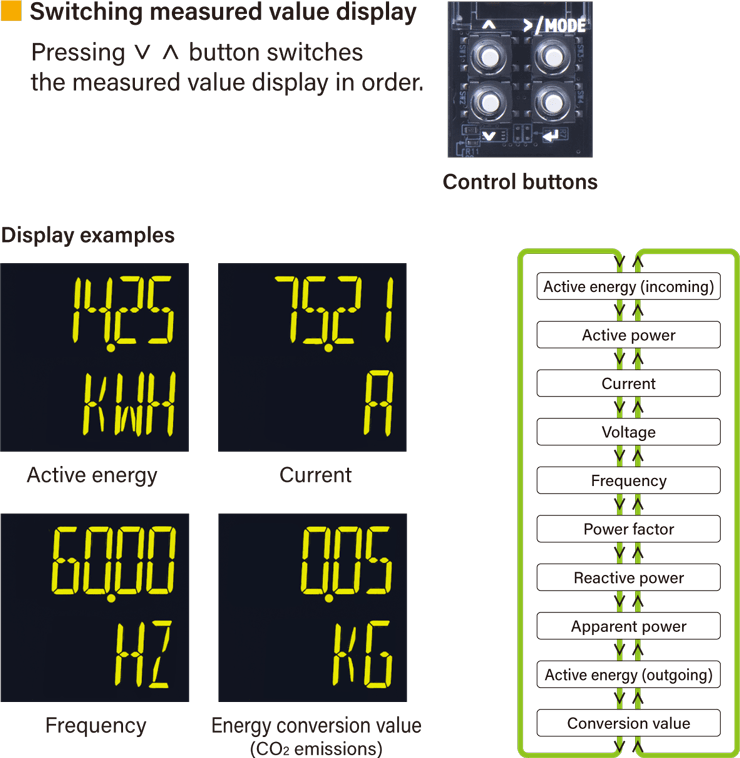

    The OEL display allows you to check the measured values of voltage, current, power, energy, CO2 emissions (energy conversion value), and relative harmonic content of each element, as well as various setting values.

    The display turns off if a set time elapses without any button operation. Just press any button while the display is off to return to the state before the display was turned off. You can also set the display to always be on.

    OEL display clearly displays information

    (click to enlarge image)

    OEL display clearly displays information

    (click to enlarge image)

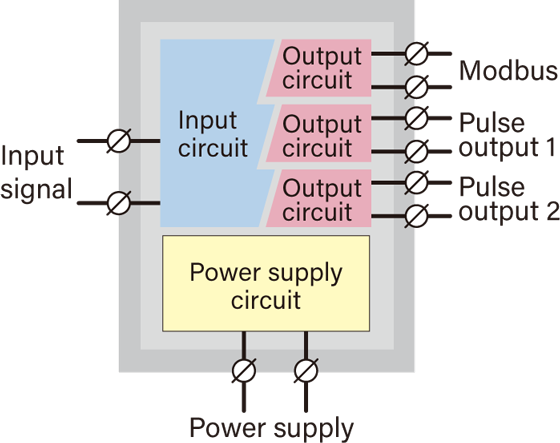

  • Isolation and power supply

    Five-port isolation
    Dielectric strength: 2000 V AC @ 1 min.

    AC power supply: 100-240 V AC
    DC power supply: 100-240 V DC

    * Specifications may vary depending on the model. For details, see the datasheet.
    Isolation and power supply
  • Compact size

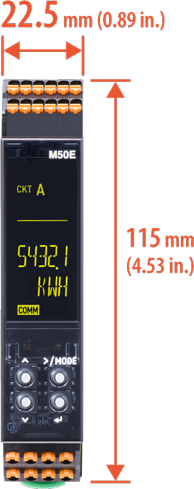

    Multi Power Transducers, featuring the 55 mm (2.17 in.) deep, terminal block style housing, are suitable for installation in a tight space of breaker boxes or wall-mounted panels.

    Compact modules can be squeezed into a minimum open space found in existing panels.

    Compact size
  • Tension-clamp terminal block

    Wiring to the tension-clamp terminal block is quick and easy. Ferrules, solid or stranded wires of up to 1.5 mm2 can be used.

    Tension-clamp terminal block
  • Free setup software tool with convenient functions

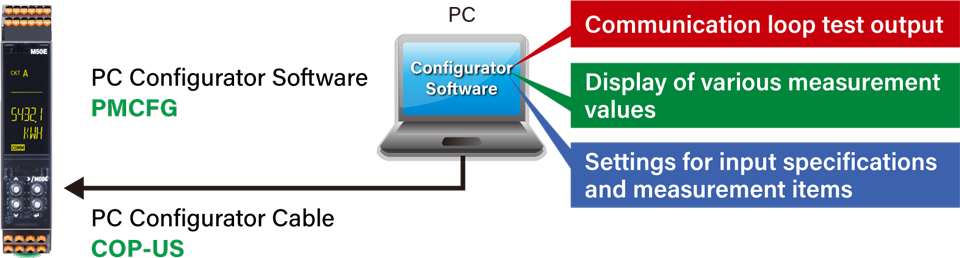

    The PC Configurator Software is used to set up various parameters of the Multi Power Transducer. It has a convenient monitoring window showing all measurement values in real time.
    The loop test output mode, in which any output value can be simulated without actually connecting to active input circuits, is useful for system comissioning.

    Free setup software tool with convenient functions

    • PMCFG is downloadable for free from Software Download & Upgrade.

  • Modbus communication

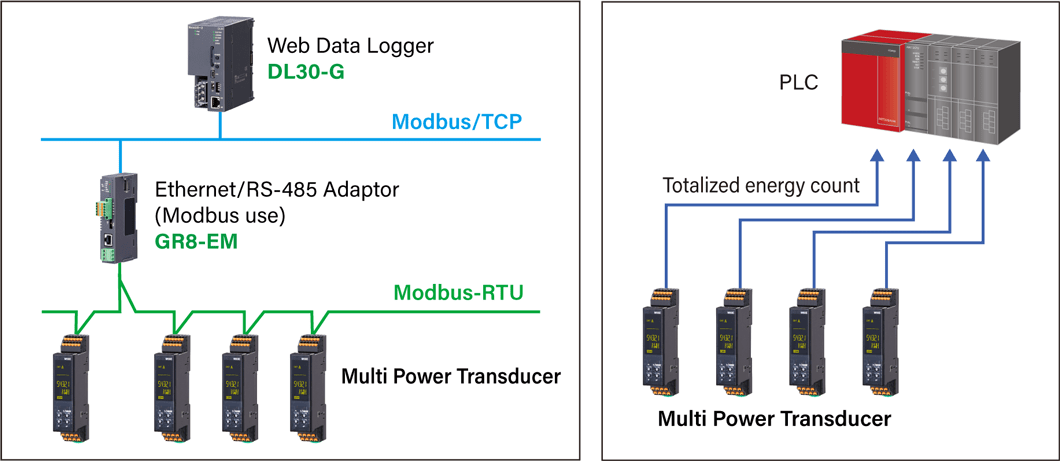

    Modbus communication, convenient for remote energy monitoring by PLC or data loggers, is selectable as standard. Monitoring points can be easily added by daisy-chain wiring of twisted-pair cables.
    Other output options such as analog signal, energy count pulse and alarm contact*1 are also available for direct input to PLC/DCS.

    Modbus communication

    *1. Modbus plus energy count pulse signals are available for M50EXWTU.

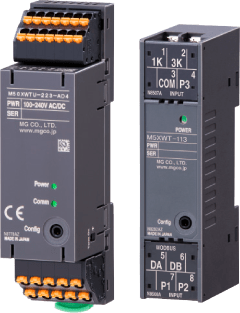

  • M50XWTU / M50EXWTU with Universally Adaptable Features

    Universally adaptable features including CE marking, 480 V AC input, and three-phase/4-wire configuration.

    Multi-circuit measurement by single unit thanks to the tension-clamp terminal block with a large number of terminals.

    M50XWTU / M50EXWTU with Universally Adaptable Features

Other Series
