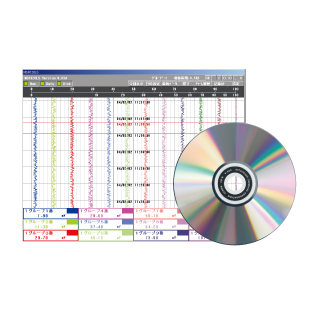

Remote Data Acquisition Hardware and Software MSRPAC PC Recorder Software PackageMSR128LS / MSR128LV - PC Recorder Light
The MSR128-Light is designed to operate on a PC of relatively low performance, though certain functions of the MSR128 which require the PC’s high performance, are not available.
The data used for the recorder is saved in CSV format allowing easy export to other Windows programs such as Microsoft Excel.
| Product name | Package Including | Model No. | |
|---|---|---|---|
| PC Recorder SOFTWARE PACKAGE | ・PC Recorder Light
MSR128 / MSR128LS・Full Featured PC Recorder SoftwareMSR128-V6 |
MSRPAC-2010 |
Data Sheet |
Some products come with the PC Recorder Software Package (MSRPAC).
For details, see I/O Modules for MSR128LS, MSR128LV below.
Functions & Features
- Ideal for basic logging and trending purposes
- Maximum sampling rate of 50 ms for 8 channels, 500 ms to 1 minute for the total of 120 channels
Two models are available to run on low resolution screens.
- MSR128LV for VGA (Screen area: 640 x 480 pixels)
- MSR128LS for SVGA (Screen area: 800 x 600 pixels)
