Strain Gauge Input

• Compact, Fixed Range

  Specific strain gauge rating up to 20 mV/V

  Excitation 2-10 V @45 mA selectable

  85-264 V AC or 24 V DC powered



  W5LCS

  Data Sheet

• Compact, Fixed Range

  Specific strain gauge rating up to 20 mV/V

  Excitation 2-10 V @35 mA selectable

  100-240 V AC or 24 V DC powered

  UL/cUL Class I, Div. 2 approval



  M2LCS

  CEULcUL

  Data Sheet

• PC Programming & "One-Step Cal" Calibration

  +/-10mV, +/-30mV, +/-100mV, +/-300mV input selectable

  Excitation 0.1 to 10 V continuously selectable. Max. 30mA

  Output selectable within 0-20 mA and +/-10 V

  24 V DC powered

  DIP switch or PC configuration

  < 10 msec. response

  Auto tare feature controlled by PLC or DCS

  18 mm (.71 in.) thin profile DIN rail mounting

  Manual on-site calibration

  1500 V AC isolation



  M3LLC

  CEULcUL

  Data Sheet

• Field Configuration with Local Display

  +/-10mV, +/-30mV, +/-100mV, +/-300mV input

  Excitation 0.1 to 12 V continuously selectable. Max. 120mA

  Output selectable within 0-20 mA and +/-10 V

  100-240 V AC powered

  Both zero & span adjustable over entire range

  <10 msec. responsed

  Auto tare feature controlled by PLC or DCS



  MXLCF

  CE

  Data Sheet

• Fixed Range, Ultra-high Speed Response, Remote Sensing

  Specific strain gauge rating up to 20 mV/V

  Excitation 2-10 V @120 mA selectable

  100, 110, 115, 120, 200, 220, 240 V AC powered

  LCD meter optional

  Six-wire bridge can be used to compensate for lead resistance variations due to temperature changes.

  < 300 microsec. Response (2 kHz, -3 dB)

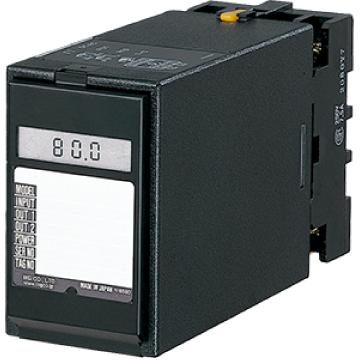

  LCF

  CE

  Data Sheet
